Issue #1535868 by EclipseGc, tim.plunkett, xjm, Jody Lynn, sdboyer, naxoc, tizzo, effulgentsia, dawehner, disasm, beejeebus: Convert all blocks into plugins.

Problem/Motivation

This is the foundational patch for #1696302: [meta] Blocks/Layouts everywhere.

Proposed resolution

The sandbox:
http://drupalcode.org/sandbox/eclipsegc/1441840.git/shortlog/refs/heads/...
This issue:

  1. Converts Drupal's Block architecture to be plugin-based.
  2. Enables blocks to be instantiated multiple times in the same theme (i.e., you can add a "Who's Online" block configured to show who's been active the last 5 minutes to your left sidebar, and a "Who's Online" block configured to show who's been active the last 60 minutes to your right sidebar). This will become more useful when we add more useful blocks to the system: i.e., a menu block that can replace both the 'primary links' and 'secondary links' currently hard-coded into page.tpl.php.
  3. Converts all core blocks to plugins (specifically, to annotated classes implementing the new BlockInterface that is part of this patch).
  4. Converts all core block configuration to CMI (no more {block} table).
  5. Adds a "Block Library" UI to the admin/structure/block workflow to incorporate the concept of configured block instances being separate from bare blocks. This UI is very rough and will be improved in follow up issues.

Remaining tasks

The patch for this issue was committed In January. Two change notifications have been filed. At least one additional change notification is still needed. From #406:

@xjm: tried to look into doing a change notice for "change in block template names" but the only new/changed tpl.php I found in the patch was "system-plugin-ui-form.tpl.php" which is a new admin template, not really relevant for blocks themselves. I don't think that is worth a change notice. What did I miss?

What I was alluding to is not changes in the names of templates themselves but in 1. render array keys and 2. variable name changes in theme preprocesses. In my reviews above, I commented on this for three places:

+++ b/core/modules/node/node.moduleundefined
@@ -1082,11 +1082,11 @@ function node_is_page(Node $node) {
-    switch ($variables['block']->delta) {
-      case 'syndicate':
+    switch ($variables['block']->id) {
+      case 'node_syndicate_block':
...
-      case 'recent':
+      case 'node_recent_block':

So this is at least the second time I've seen this, that it's switching from delta to ID. I know that the delta isn't going away from elsewhere in the patch, or at least it still appears to still be there for all intents and purposes. (Or intensive porpoises.) What's the deal? Presumably this will become clear once I read the new architecture. There's also some API change-y stuff going on here that we should make sure gets documented in a change notification. (Presumably this issue will have more than one, since this change is very themer-facing but themers don't care about the stuff we're doing to the base API.)

+++ b/core/modules/openid/openid.moduleundefined
@@ -130,20 +130,18 @@ function openid_user_logout($account) {
-function openid_block_view_user_login_alter(&$block) {
+function openid_block_view_user_login_block_alter(&$build, $block) {

@@ -152,10 +150,10 @@ function openid_block_view_user_login_alter(&$block) {
-  $block['content']['user_links']['#weight'] = 10;
+  $build['user_links']['#weight'] = 10;

Okay, so clearly an API change here that I hope I find to be documented when I get to block.api.php and the issue summary.

+++ b/core/modules/block/lib/Drupal/block/Plugin/views/display/Block.phpundefined
@@ -78,7 +78,7 @@ public function execute() {
-    $info['subject'] = filter_xss_admin($this->view->getTitle());
+    $info['#title'] = filter_xss_admin($this->view->getTitle());

This hints at another API change.

So, what I think is still needed is a change notice with an example of altering or theming a block to be rendered in D7, and how it changes in D8.

Additionally, the over 50 followups from this issue have not been resolved. Many of the followup issues for this issue were tagged with If SCOTCH fails, including one release blocker: #1875252: [META] Make the block plugin UI shippable. On Feb. 18, when Blocks and Layouts was feature-complete for whatever would be in Drupal 8, these issues were to be unpostponed, and t be the initiative's focus for the next phase of the release cycle. (See below.) This did not happen as agreed, and the issues are still outstanding.

See comment #294 for a review of the full patch. See #108 for an earlier review of the interface's architecture. For the core maintainers' feedback on this patch, see #307.

Followup issues

Also see the initiative roadmap at #1696302: [meta] Blocks/Layouts everywhere.

  1. Bugs and regressions introduced by this patch

  2. The architecture needs review.

    Specific points of concern follow. In each case, we should determine whether it is appropriate to explore the question in a followup, or whether it needs to be addressed more before this patch is committed.

  3. The new classes and interfaces introduced by the patch need detailed documentation.

    The patch includes numerous @todos where more documentation should be added. See #297 for a complete list. Followup issues:

  4. There are gaps in the test coverage

    See #294 and #337 for additional details.

  5. There is no upgrade path.

    #1871700: Provide an upgrade path to the new Block architecture from Drupal 7
    (see also #1887688: locale_update_8001() references unused block tables)

  6. The patch has not been fully benchmarked.

    Commit blocker. File followups as appropriate. See #338.

    The following issues will likely be important for making the new architecture more performant:

  7. The user interface will need review and testing (as a followup).

    The actual user interface will probably need user testing and refinement at some point. It probably does not make sense to do this yet, since one of the goals of the Blocks and Layouts initiative is to create a streamlined workflow for placing blocks in layouts.

    1. #1841584: Add and configure master displays
    2. #1871746: Add modal block browser
    3. #1840500: Add simple blank page creation capability
    4. Add context dependent blocks/pages
    Other usability issues
  8. Other cleanups and followups.

    Others TBD. I'll add in the non-critical tasks and followups later. All the things mentioned under "Followups" in #246 on, plus the fix needed to hook_schema(), config and plugin names/IDs/deltas, etc.

Other related issues

User interface changes

Instead of all blocks being listed on admin/structure/block, only configured instances are listed.

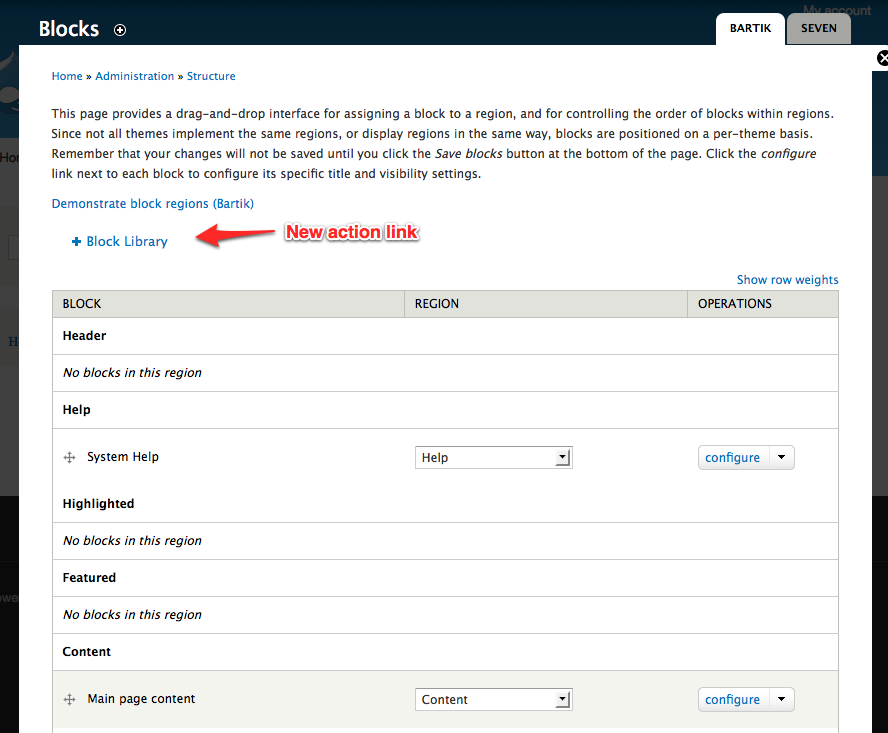

There's a new "Block Library" link to add additional block instances. (The text of this link may be changed in #1874584: "Block Library" link label is unclear.)

This link takes you to a browser that allows you to pick which block you want to add, with an additional link to add a new custom block if the Custom Block module is enabled. (See also: #1874982: CSS bugs in the Block Library UI, #1875780: "Configure block" button text in the Block Library is confusing, #1875058: Provide separate interface for editing custom blocks.)

When you edit a new instance, you can give the block a custom title, or use the default title. You also give this instance a specific machine name (though we might generate a default machine name automatically, see #1875260: Make the block title required and allow it to be hidden and #1875016: Automatically generate machine names for block plugins).

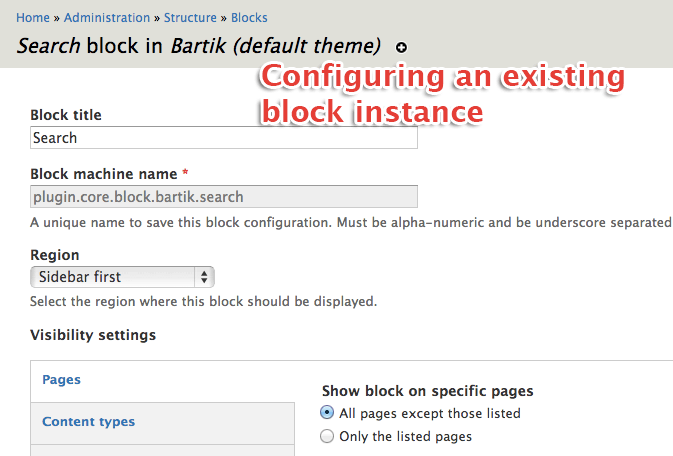

You can also adjust the configuration of existing block instances as you previously would, by clicking the "configure" operation from the block administration page.


API changes

TODO: Fill in this section. See #281.

Blood Oath

We, the undersigned, do hereby avow that we will work on If SCOTCH fails issues after February 18:

EclipseGc
sdboyer

Files:
CommentFileSizeAuthor
#376 block_library_action.png18.66 KBxjm
#376 block_library.png34.16 KBxjm
#376 existing_instance.png22.98 KBxjm
#376 new_instance.png24.61 KBxjm
#375 block_plugins_80_runs.png42.23 KBmsonnabaum
#375 1.blockplugins.xhprof.gz63.48 KBmsonnabaum
#375 2.blockplugins.xhprof.gz61.82 KBmsonnabaum
#373 block-1535868-372.patch441.58 KBxjm
PASSED: [[SimpleTest]]: [MySQL] 50,467 pass(es).
[ View ]
#373 interdiff-372.txt7.45 KBxjm
#372 block-1535868-372.patch442.16 KBbeejeebus
PASSED: [[SimpleTest]]: [MySQL] 50,482 pass(es).
[ View ]
#372 interdiff.txt6.34 KBbeejeebus
#370 block-1535868-370.patch444.97 KBxjm
FAILED: [[SimpleTest]]: [MySQL] 50,077 pass(es), 19 fail(s), and 6 exception(s).
[ View ]
#370 interdiff-370.txt9.72 KBxjm
#367 block-1535868-367.patch440.01 KBxjm
PASSED: [[SimpleTest]]: [MySQL] 50,484 pass(es).
[ View ]
#367 interdiff.txt921 bytesxjm
#365 block-1535868-364.patch440 KBxjm
FAILED: [[SimpleTest]]: [MySQL] 50,050 pass(es), 1 fail(s), and 0 exception(s).
[ View ]
#365 interdiff-364.txt12.85 KBxjm
#361 block-1535868-361.patch442.53 KBxjm
PASSED: [[SimpleTest]]: [MySQL] 50,501 pass(es).
[ View ]
#361 interdiff-361.txt3.59 KBxjm
#358 block-1535868-358.patch442.81 KBxjm
PASSED: [[SimpleTest]]: [MySQL] 50,475 pass(es).
[ View ]
#358 interdiff-358.txt4.62 KBxjm
#358 add_block_before.png44.35 KBxjm

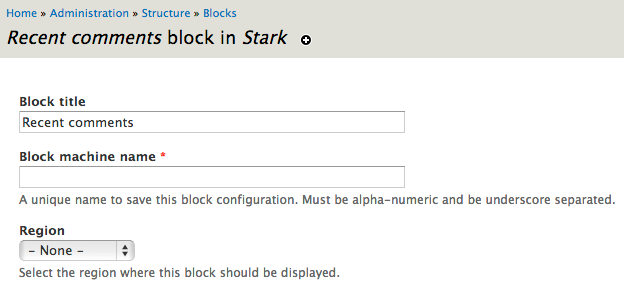

#358 block_add_after.png30.07 KBxjm
#356 block-1535868-356-fixed.patch443.33 KBxjm
PASSED: [[SimpleTest]]: [MySQL] 50,448 pass(es).
[ View ]
#356 interdiff-356-fixed.patch30.35 KBxjm
FAILED: [[SimpleTest]]: [MySQL] Unable to apply patch interdiff-356-fixed.patch. Unable to apply patch. See the log in the details link for more information.
[ View ]
#356 before.png13.98 KBxjm
#356 after.png27.72 KBxjm
#343 block-1535868-343.patch428.39 KBxjm
FAILED: [[SimpleTest]]: [MySQL] Unable to apply patch block-1535868-343.patch. Unable to apply patch. See the log in the details link for more information.
[ View ]
#343 interdiff-343.txt10.57 KBxjm

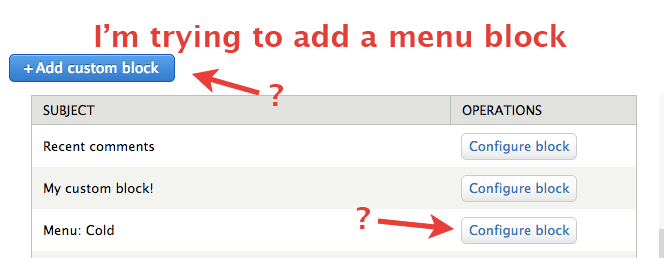

#341 add_block_confusion.png9.25 KBxjm

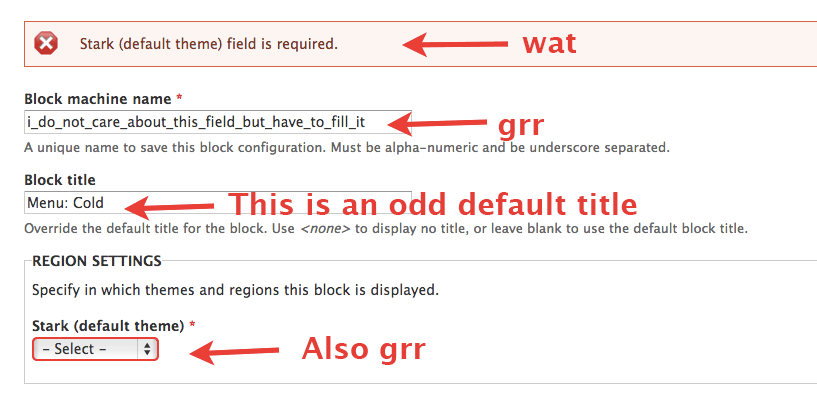

#341 block_instance_creation_annoyances.png20.55 KBxjm
#341 no_titles.png12.81 KBxjm

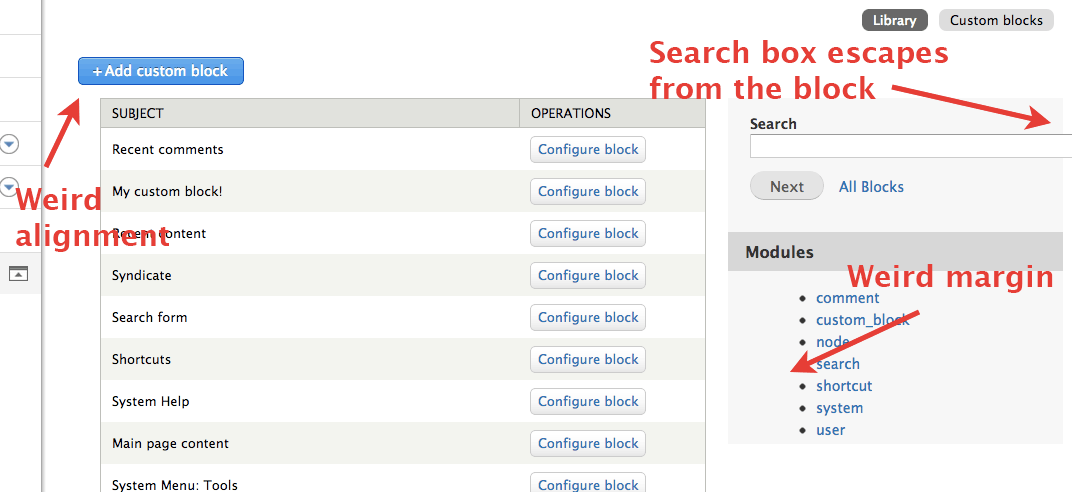

#341 css_bugs.png28.04 KBxjm
