Problem/Motivation

Bartik's code needs to meet current Drupal coding standards.

Proposed resolution

This issue takes a specific section of Bartik's code, it acts as a "component" issue and improves that section of code with minimal impact on the rest of Bartik's codebase.

This issue aims to clean up and properly format the CSS and templates files without breaking Bartik visually.

This issue primarily looks at the css/components/footer.css file.

Work that needs to be included in patches for this issue are fully outlined in the META issue #1342054: [META] Clean up templates and CSS.

The work needs to be crossed off the list below as completed or stated why they were not applicable to this issue in the comments below, to make sure we cover everything.

Also very helpful! Noting the list items in your comment with the patch to show what parts you added to the patch.

Create a patch containing the potential following work:

Code cleanup work

  1. Check each selector in the CSS file (associated with the particular issue) is in use within core right now.
    If not...
    a) Check to see if the classes in core have been changed and correct them (for e.g. I found this in this issue ).
    or
    b) Remove that CSS completely from the CSS file.
  2. a) Check the CSS selectors are not being replicated in other stylesheets in Bartik.
    b) Check the CSS properties are not being overridden by other stylesheets in Bartik.
    If a) move all of the properties to the selector in the stylesheet that you think most appropriate for the component you are dealing with.
    If a) and b) also remove the CSS properties and values being overridden within that ruleset.
  3. If you find CSS for a component which seems out of place in the file it is currently in move it to the one you think is the correct one.
  4. If a selector appears to be too long and/or too specific, check if the selector can be simplified. for eg. .something .something .something { } being modified to .something .something { }.
  5. Check that RTL styles exist when needed and are formatted as per the guidelines. (for e.g. we found that RTL styles are broken on certain pages in this issue, so fix anything you see missing/incorrect in the CSS file.
  6. If you think the contents of the CSS file could be further broken down into more components CSS files, or grouped together with other existing CSS files to form one component do it. The initial SMACSS issue may not of been perfect, guidelines on CSS file organisation for Drupal 8 can be found here.
  7. Check the markup from the templates that all of the classes are used as selectors in the CSS files. If not remove them. See an example issue here for this.

Code formatting work

  1. Add a File comment to the top of the stylesheet - see here for guidelines.
  2. Check any other comments are formatted correctly - see here for guidelines.
  3. Check Whitespace is being used correctly, this includes indentations and line breaks - see here for guidelines.
  4. Check the formatting of rulesets, properties and media queries are correct - see here for guidelines.
  5. As mentioned above, check existing RTL styles are formatted correctly - see here for guidelines.

Remaining tasks

  • Assess the code applicable to this patch and figure out what work in the lists above need to be included in the patch.
  • Cross out work tasks that do not apply to this issue.
  • Write a patch with as much work as you want to include, upload and comment what you included
  • Review the patch - code review and visual changes
  • Upload screenshots to show nothing/something is broken on the frontend

User interface changes

None, we are cleaning up CSS and markup in templates. The use of Bartik's UI and design will stay the same.

API changes

n/a

Beta phase evaluation

Reference: https://www.drupal.org/core/beta-changes
Issue category Task because it is a code clean up overhaul of a theme.
Unfrozen changes Unfrozen because it only refactors CSS and templates, no changes to UI or APIs
Prioritized changes The main goal of this issue is usability and performance. We want Bartik code to be up to date and something to be proud of.
Disruption No disruption it's only refactoring code not changing how to use the theme
CommentFileSizeAuthor
#98 bartik-clean-up-footer-2398471-98.patch10.77 KBidebr
#96 2398471-95-after.png361.34 KBidebr
#96 2398471-95-before.png359.26 KBidebr
#95 bartik-clean-up-footer-2398471-95.patch12.84 KBcrazyrohila
#95 interdiff-93-95.txt1.23 KBcrazyrohila
#94 2398471-93-after.png18.99 KBidebr
#93 bartik-blockquote-after.png33.71 KBcrazyrohila
#93 bartik-blockquote-before.png28.51 KBcrazyrohila
#93 interdiff-91-93.txt1.13 KBcrazyrohila
#93 bartik-clean-up-footer-2398471-93.patch12.8 KBcrazyrohila
#92 2398471-91-after.png79.14 KBidebr
#91 interdiff-89-91.txt6.84 KBcrazyrohila
#91 bartik-clean-up-footer-2398471-91.patch12.53 KBcrazyrohila
#91 bartik-cleanup-91.png20.42 KBcrazyrohila
#89 bartik-clean-up-footer-2398471-89.patch12.5 KBcrazyrohila
#87 bartik-clean-up-footer-2398471-87.patch12.63 KBcrazyrohila
#85 interdiff-71-85.txt4.44 KBcrazyrohila
#85 bartik-clean-up-footer-2398471-85.patch11.66 KBcrazyrohila
#84 2398471-81-after.png18.39 KBidebr
#81 2398471-81.patch9.69 KBrpayanm
#81 2398471-interdiff.txt642 bytesrpayanm
#80 2398471-80.patch9.71 KBrpayanm
#80 2398471-interdiff.txt1.27 KBrpayanm
#77 2398471-77.patch9.2 KBrpayanm
#77 2398471-interdiff.txt2.65 KBrpayanm
#75 2398471-75.patch9.75 KBrpayanm
#75 2398471-interdiff.txt1.74 KBrpayanm
#71 bartik-clean-up-footer-2398471-71.patch11.02 KBcrazyrohila
#68 bartik-clean-up-footer-2398471-68.patch11.98 KBcrazyrohila
#66 d8.local-bartik.png15.77 KBcrazyrohila
#65 bartik-clean-up-footer-2398471-65.patch7.57 KBpiyuesh23
#62 before-patch.png44.13 KBemma.maria
#62 after-patch.png45.99 KBemma.maria
#61 clean_up_the_footer-2398471-61.patch9.37 KBlanchez
#58 clean_up_the_footer-2398471-58.patch9.38 KBdavidhernandez
#52 bartik-clean-up-footer-2398471-52.patch9.28 KBsaki007ster

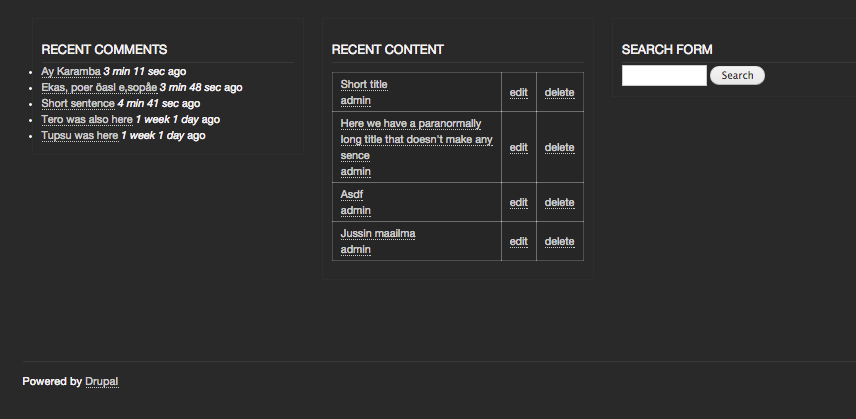

#47 bartik-after.png54.47 KBDickJohnson
#47 bartik-before.png74.72 KBDickJohnson
#45 bartik-clean-up-footer-2398471-45.patch10.95 KBlewisnyman
#45 interdiff.txt5.05 KBlewisnyman
#44 bartik-clean-up-footer-2398471-44.patch11.83 KBDickJohnson
#44 interdiff-2398471-38-44.txt6.99 KBDickJohnson
#39 bartik-clean-up-footer-2398471-38.patch10.45 KBlauriii
#37 interdiff-2398471-34-36.txt6.98 KBlauriii
#37 bartik-clean-up-footer-2398471-36.patch11.14 KBlauriii
#34 interdiff-2398471-32-34.txt4.23 KBDickJohnson
#34 bartik-clean-up-footer-2398471-34.patch12.71 KBDickJohnson
#32 bartik-clean-up-footer-2398471-32.patch12.89 KBDickJohnson
#29 bartik-clean-up-footer-2398471-29.patch12.88 KBDickJohnson
#26 interdiff-2398471-21-16.txt9.04 KBDickJohnson
#26 bartik-clean-up-footer-2398471-26.patch13.83 KBDickJohnson
#22 interdiff-2398471-20-21.txt2.94 KBDickJohnson
#22 bartik-clean-up-footer-2398471-21.patch12.86 KBDickJohnson
#21 interdiff-2398471-19-20.txt5.89 KBDickJohnson
#21 bartik-clean-up-footer-2398471-20.patch12.89 KBDickJohnson
#19 interdiff-2398471-7-19.txt6.55 KBDickJohnson
#19 bartik-clean-up-footer-2398471-19.patch12.77 KBDickJohnson
#15 bartik-clean-up-footer-2398471-14.patch20.14 KBDickJohnson
#7 bartik-clean-up-footer-2398471-7.patch12.56 KBDickJohnson
#6 bartik-clean-up-footer-2398471-6.patch9.09 KBDickJohnson
#4 bartik-clean-up-footer-9470299-4.patch8.49 KBDickJohnson

Comments

DickJohnson’s picture

Investigated this a bit. I think that current footer.css (+some footer related stuff from other files) should be split up to either 2 or 4 separate files. If 2, then one for structural styles and one for visual styles. If 4, then one for footer menu, one for footer blocks, one for footer columns and one for footer generally.

lewisnyman’s picture

In SMACSS world, you would avoid re-styling components based on their location, and instead use variants. Maybe it would sense to do the same here.

I think separating the structural/layout and visual styling is a bad idea for themes, although I think it makes sense for modules. All code related to a component should be in the same file.

emma.maria’s picture

Title: Clean up "footer" CSS in Bartik » Clean up the "footer" component in Bartik
DickJohnson’s picture

Assigned: Unassigned » DickJohnson
StatusFileSize
new8.49 KB

Started to work a bit on this. At this stage I removed footer related id's from page.html.twig and changed css on typography.css, colors.css, contextual.css, footer.css, table.css, layout.css and print.css to match this change.

DickJohnson’s picture

Status: Active » Needs review

To see testbot.

DickJohnson’s picture

StatusFileSize
new9.09 KB

Made a split from footer.css to four different files: footer.css, footer-menu.css, footer-columns.css and footer-wrapper.css. Cleaned up a bit the footer.css and changed the preprocess that adds footer-columns class to body. Instead is adding layout-footer-columns now.

DickJohnson’s picture

StatusFileSize
new12.56 KB

New files were missing and fixed some coding standard issues also.

lewisnyman’s picture

Status: Needs review » Needs work
  1. +++ b/core/themes/bartik/css/components/footer-menu.css
    --- /dev/null
    +++ b/core/themes/bartik/css/components/footer-wrapper.css

    +++ b/core/themes/bartik/css/components/footer-wrapper.css
    +++ b/core/themes/bartik/css/components/footer-wrapper.css
    @@ -0,0 +1,34 @@

    @@ -0,0 +1,34 @@
    +/**
    + * @file
    + * Visual styles for Bartik's footer wrapper.
    + */


    .footer__wrapper is a child of .footer. So it should be able to be contained in the same file as .footer.

  2. +++ b/core/themes/bartik/templates/page.html.twig
    @@ -175,22 +175,22 @@
    +    <div class="footer__wrapper">
           <footer class="section">
             {% if page.footer_firstcolumn or page.footer_secondcolumn or page.footer_thirdcolumn or page.footer_fourthcolumn %}
    -          <div id="footer-columns" class="clearfix">
    +          <div class="footer-columns" class="clearfix">
                 {{ page.footer_firstcolumn }}
                 {{ page.footer_secondcolumn }}
                 {{ page.footer_thirdcolumn }}
                 {{ page.footer_fourthcolumn }}
    ...
    +          <div class="footer" role="contentinfo" class="clearfix">
                 {{ page.footer }}


    We have loads of mentioned of the word footer here, the logic is kind of weird. How can we have a footer class inside of a footer element? I think we need to rewrite this markup and maybe rename the footer region so it makes sense. We also switch between using the footer-wrapper element as the main parent and the .footer element. I also think it makes sense to rename this component to site-footer because it's more specific, vs the generic meaning of the footer HTML component.

Here's is a suggestion for the footer markup:

    <div class="site-footer__wrapper">
      <footer class="site-footer">
        {% if page.footer_first or page.footer_second or page.footer_third or page.footer_fourth %}
          <div class="footer-columns clearfix">
            {{ page.footer_first }}
            {{ page.footer_second }}
            {{ page.footer_third }}
            {{ page.footer_fourth }}
          </div>
        {% endif %}
        {% if page.footer_fifth %}
          <div role="contentinfo">
            {{ page.footer_fifth }}
          </div>
        {% endif %}
      </footer>
    </div>
emma.maria’s picture

I agree that the footer element should be the only thing that is defined with a class of footer (or some variant like site-footer as above).
I agree with renaming the regions to footer-first, footer-second, etc etc. Other areas of the page that have multiple regions use this naming convention (sidebar, triptych etc) so the footer should do too.

My only change to add is that we have specific styles for the existing footer / proposed footer_fifth region. So there should be a class added to what is wrapped around this region. Also as the two sections (columns and the full width section) are both equally level but separate sections of the footer.
I think we should split footer into .site-footer__top and .site-footer__bottom.

So my proposed markup is...

<div class="site-footer__wrapper">
  <footer class="site-footer">
    {% if page.footer_first or page.footer_second or page.footer_third or page.footer_fourth %}
      <div class="site-footer__top clearfix">
        {{ page.footer_first }}
        {{ page.footer_second }}
        {{ page.footer_third }}
        {{ page.footer_fourth }}
      </div>
    {% endif %}
    {% if page.footer_fifth %}
      <div class="site-footer__bottom role="contentinfo">
        {{ page.footer_fifth }}
      </div>
    {% endif %}
  </footer>
</div>

Therefore the classes hierachy without all the markup bumf looks like this...

.site-footer__wrapper
  .site-footer
     .site-footer__top
     .site-footer__bottom
DickJohnson’s picture

I agree on most of stuff, but I wouldn't like to use footer_fifth as it's completely different element than previous four.

emma.maria’s picture

@DickJohnson do you have an alternative suggestion? It shouldn't stay as Footer as the whole section is the footer and the other regions have specific names.

lewisnyman’s picture

It's not a good practice to name the region after how it looks, because on narrow devices those columns are no longer columns

DickJohnson’s picture

Ok, point taken.

DickJohnson’s picture

Status: Needs work » Needs review

New patch around. Don't need feedback on this as it's nowhere near ready. Sending it to testbot to see what happens.

DickJohnson’s picture

StatusFileSize
new20.14 KB

And the patch.

Status: Needs review » Needs work

The last submitted patch, 15: bartik-clean-up-footer-2398471-14.patch, failed testing.

DickJohnson’s picture

Assigned: DickJohnson » Unassigned
DickJohnson’s picture

After investigating this a bit, it's probably better to continue with #7 instead of #15.

DickJohnson’s picture

Did some work on page.html.twig. Changed markup near the one @lewisnyman and @emma.maria suggested and changed the css to match it.

DickJohnson’s picture

Status: Needs work » Needs review

To see the testbot.

DickJohnson’s picture

Did some more changes to page.twig.html and the css-files related to it and now we're starting to be pretty close on emma.marias suggestion.

This one also to testbot just to see the results.

DickJohnson’s picture

No idea where that came from.

lewisnyman’s picture

Status: Needs review » Needs work
  1. +++ b/core/themes/bartik/bartik.libraries.yml
    @@ -15,7 +15,10 @@ global-styling:
    +      css/components/footer-wrapper.css: {}


    The site-footer__wrapper is a subcomponent of site-footer so it can got into the same file.

  2. +++ b/core/themes/bartik/bartik.libraries.yml
    @@ -15,7 +15,10 @@ global-styling:
           css/components/footer.css: {}


    This should also be renamed to site-footer to match the new component name.

  3. +++ b/core/themes/bartik/css/colors.css
    @@ -42,8 +42,7 @@ a:active,
    -#page-wrapper,
    -#footer-wrapper {
    +#page-wrapper {


    I think we need to replace this with site-footer__wrapper instead of removing it

  4. +++ b/core/themes/bartik/css/components/footer.css
    @@ -1,142 +1,33 @@
    -#footer .block .content {
    +.site-footer__bottom .block .content {


    Instead of replacing #footer with .site-footer__bottom we should be trying to be as broad as possible here. Let's just use .footer as the parent selector where ever possible

DickJohnson’s picture

#23.1 Currently there is no styles for .site-footer.css outside layout.css, so I'll rename the file as site-footer.css which can be used for .site-footer and site-footer__wrapper styles, right?
#23.2 Footer.css is now for stuff that was previously targetted with #footer. #footer is now known ass .site-footer__bottom, so my guess is that this should be renamed as site-footer-bottom.css.
#23.3 I moved the style to footer-wrapper.css. Trying to think why I did it, but I'm not sure. For me it really doesnt make any difference in which one of these two files the bg-color is living. For consistency the original one is better tbh.
#23.4 I think this is as it should be. The styles were previously targetting only the content of blocks in #footer.

As a reminder. Originally the structure was:

<div id=footer-wrapper>
  <footer class=section>
     <div id=footer-columns>
     </div> <!---- #footer-columns ->
     <div id=footer>
     </div> <!---- #footer ->
  </footer>
</div>

Now it's:

<div class=site-footer__wrapper>
   <footer class=footer>
      <div class=site-footer__top>
      </div> <!---- .site-footer__top ->
      <div class=site-footer__bottom>
      </div> <!---- .site-footer__bottom ->
   </footer>
</div>
DickJohnson’s picture

Assigned: Unassigned » DickJohnson

Assigned to myself.

DickJohnson’s picture

Status: Needs work » Needs review
StatusFileSize
new13.83 KB
new9.04 KB

Renamed the files:
footer.css -> site-footer-bottom.css
footer-wrapper.css -> site-footer.css
footer-menu.css -> site-footer-bottom-menu.css
footer-columns.css -> site-footer-top.css

Out of remaining todo-list I'm not completely sure if:

      <div class="site-footer__top clearfix">
        {{ page.footer_first }}
        {{ page.footer_second }}
        {{ page.footer_third }}
        {{ page.footer_fourth }}
      </div>
    {% endif %}
    {% if page.footer_fifth %}
      <div class="site-footer__bottom role="contentinfo">
        {{ page.footer_fifth }}

suggested by both lewisnyman and emma.maria can fit the current issue summary. I think that is affecting a lot of different things and not being just pure refactoring, right?

DickJohnson’s picture

Assigned: DickJohnson » Unassigned
emma.maria’s picture

Status: Needs review » Needs work
Related issues: +#2402639: Rename the footer regions in Bartik

All of the footer styles need to be put into one file site-footer.css.
site-footer__top and site-footer__bottom are variants of site-footer and not components in themselves.

Also yes we should take the region naming outside of this issue to match other region issues currently open for Bartik.
See #2402639: Rename the footer regions in Bartik.

DickJohnson’s picture

StatusFileSize
new12.88 KB

Removed the 3 extra files based on #28.

DickJohnson’s picture

Status: Needs work » Needs review
lewisnyman’s picture

Status: Needs review » Needs work

Thanks. I found a few things :P

  1. +++ b/core/themes/bartik/css/colors.css
    @@ -42,8 +42,7 @@ a:active,
    +#page-wrapper {


    It looks like we've lost some styling here?

  2. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,155 @@
    +.site-footer__wrapper .block .content a {
    ...
    +.site-footer__wrapper .block .content a:hover,
    +.site-footer__wrapper .block .content a:focus {


    Is it even possible to add links to the footer that aren't in a block? Do you think we could get away with removing .block .content from the selectors?

  3. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,155 @@
    +.site-footer__wrapper .block {
    ...
    +.site-footer__wrapper tr.odd {
    ...
    +.site-footer__wrapper tr.even {


    In loads of these situations we are using the .site-footer__wrapper class as the parent selector but we should be using the main component as the selector, which is site-footer. The wrapper is a sub-component

  4. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,155 @@
    +.site-footer__bottom .menu li a {
    +  float: left; /* LTR */
    +  padding: 0 12px;
    +  display: block;


    Display block is redundant when using with float.

  5. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,155 @@
    +  border-right: 1px solid #555; /* LTR */
    +  border-color: rgba(255, 255, 255, 0.15);
    ...
    +  border-color: rgba(255, 255, 255, 0.15);
    +  border-right: none;


    These two sets LTR and RTL properties don't seem to match up

  6. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,155 @@
    +[dir="rtl"] .site-footer__bottom .menu li:last-child a {
    +  padding-left: 0;
    +  border-left: none;
    +}
    +/**
    + * Visual styles for Bartik's footer top region.


    We need a blank line before this comment

  7. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,155 @@
    +.site-footer__top .content li a {
    ...
    +[dir="rtl"] .site-footer__top .content li a {
    ...
    +.site-footer__top .content li a:hover,
    +.site-footer__top .content li a:focus {


    We can also remove the .content li from these selectors... I think

  8. +++ b/core/themes/bartik/css/components/table.css
    @@ -10,7 +10,7 @@ table {
    -#footer-wrapper table {
    +.site-footer__wrapper table {

    @@ -51,8 +51,8 @@ tr th {
    -#footer-wrapper tr td,
    -#footer-wrapper tr th {
    +.site-footer__wrapper tr td,
    +.site-footer__wrapper tr th {

    +++ b/core/themes/bartik/css/layout.css
    @@ -45,10 +45,10 @@ body,
    -#footer-wrapper {
    +.site-footer__wrapper {
    ...
    -#footer-wrapper .section {
    +.site-footer__wrapper .footer {


    Also in these situations I think we should use site-footer instead of the wrapper.

  9. +++ b/core/themes/bartik/templates/page.html.twig
    @@ -175,22 +175,22 @@
    +      <footer class="footer">


    We need to change this class to 'site-footer'

DickJohnson’s picture

Status: Needs work » Needs review
StatusFileSize
new12.89 KB

Rerolled after changes in layout.css.

emma.maria’s picture

Status: Needs review » Needs work

Setting to needs work as the most recent patch does not contain the suggested changes in #31.

DickJohnson’s picture

Fixed: 31.1, 31.3, 31.4, 31.6, 31.7, 31.8 and 31.9.

DickJohnson’s picture

Issue tags: +Needs reroll

page.html.twig cleanup went just in, so this is in need of reroll, again.

lauriii’s picture

Assigned: Unassigned » lauriii
lauriii’s picture

Assigned: lauriii » Unassigned
Status: Needs work » Needs review
Issue tags: -Needs reroll
StatusFileSize
new11.14 KB
new6.98 KB

Rerolled & combined classes into one single attribute instead of having multiple class attributes.

Status: Needs review » Needs work

The last submitted patch, 37: bartik-clean-up-footer-2398471-36.patch, failed testing.

lauriii’s picture

DickJohnson’s picture

It's starting to look good, but I think that in contextual.css and print.css we could target .site-footer instead of .site-footer__wrapper.

lewisnyman’s picture

Status: Needs review » Needs work

Me to, also in colors.css

+++ b/core/themes/bartik/css/components/footer.css
@@ -1,142 +1,155 @@
+.site-footer tr.even {
+  background-color: #2c2c2c;
+  background-color: rgba(0, 0, 0, 0.15);
...
+.site-footer__bottom {
   letter-spacing: 0.2px;
   margin-top: 30px;
   border-top: 1px solid #555;
   border-color: rgba(255, 255, 255, 0.15);
...
+[dir="rtl"] .site-footer__bottom .menu li a {
   float: right;
   border-left: 1px solid #555;
   border-color: rgba(255, 255, 255, 0.15);
...
+.site-footer__top h2 {
+  border-bottom: 1px solid #555;
+  border-color: rgba(255, 255, 255, 0.15);
...
+.site-footer__top a:focus {
+  background-color: #1f1f21;
+  background-color: rgba(255, 255, 255, 0.05);

In these situations, we don't need to provide a fallback color for rgba, because we no longer support IE8

lewisnyman’s picture

I'll need to go through the code in browser to check to see if there are any redundant styles in there.

DickJohnson’s picture

Assigned: Unassigned » DickJohnson

Working on this at dc brighton sprint.

DickJohnson’s picture

Status: Needs work » Needs review
StatusFileSize
new6.99 KB
new11.83 KB

Looks like last patch is missing whole site-footer.css.

lewisnyman’s picture

StatusFileSize
new5.05 KB
new10.95 KB

I went through and tried to find optimisations here and there. It was too hard to suggest without checking out if they broke anything first. There were loads of redundant rgba colors being used on a solid background.

DickJohnson’s picture

Status: Needs review » Needs work

That one is making a huge difference in look of footer at least for me. Putting screenshots on in short while.

DickJohnson’s picture

StatusFileSize
new74.72 KB
new54.47 KB

Before:
Before

After:
After

emma.maria’s picture

From looking at #47 you have changed (the really bad contrast) footer column titles to be white now instead of that barely can see dark grey.

There is an issue for that in Bartik somewhere to make them lighter, because currently it really does not pass an color contrast tests.

DickJohnson’s picture

Assigned: DickJohnson » Unassigned
thamas’s picture

DickJohnson’s picture

Issue tags: +Need reroll

Needs reroll after naming change on footer got commited.

saki007ster’s picture

StatusFileSize
new9.28 KB

rerolled the patch in #45 to accommodate the naming changes on footer.

saki007ster’s picture

Status: Needs work » Needs review

The last submitted patch, 34: bartik-clean-up-footer-2398471-34.patch, failed testing.

emma.maria’s picture

Status: Needs review » Postponed

Waiting on the Footer CSS regressions patch to be committed.
#2422975: Bartik footer has CSS regressions.

lewisnyman’s picture

Status: Postponed » Needs review
idebr’s picture

Status: Needs review » Needs work

Patch no longer applies:

error: patch failed: core/themes/bartik/css/components/footer.css:1
error: core/themes/bartik/css/components/footer.css: patch does not apply
error: patch failed: core/themes/bartik/css/layout.css:55
error: core/themes/bartik/css/layout.css: patch does not apply

davidhernandez’s picture

Status: Needs work » Needs review
StatusFileSize
new9.38 KB

This should apply. I had to merge in changes and wasn't sure if which css declarations should stay or go so I just kept what seemed to belong to this issue. I didn't read everything but it looks like there was some minor changes in layout.css, so that'll need reviewing.

DickJohnson’s picture

Assigned: Unassigned » DickJohnson

Reviewing.

DickJohnson’s picture

Assigned: DickJohnson » Unassigned
Status: Needs review » Needs work

Does not apply anymore.

vagrant@dev:/var/www/drupal8(8.0.x⚡) » git apply clean_up_the_footer-2398471-58.patch
error: patch failed: core/themes/bartik/css/layout.css:142
error: core/themes/bartik/css/layout.css: patch does not apply

lanchez’s picture

Status: Needs work » Needs review
StatusFileSize
new9.37 KB

Rerolled.

emma.maria’s picture

Issue summary: View changes
Status: Needs review » Needs work
StatusFileSize
new45.99 KB
new44.13 KB

This patch needs work.

The changes to page.html.twig in the patch in #45 fell out during the reroll in #52.

emma.maria’s picture

Issue tags: -Need reroll +Needs reroll
piyuesh23’s picture

Assigned: Unassigned » piyuesh23
Issue tags: +#drupalgoa2015
piyuesh23’s picture

Assigned: piyuesh23 » Unassigned
Status: Needs work » Needs review
StatusFileSize
new7.57 KB

Added the changes to page.html.twig. Uploading the updated patch here.

crazyrohila’s picture

StatusFileSize
new15.77 KB

Styling breaks after applying patch
bartik-footer-issues

crazyrohila’s picture

Assigned: Unassigned » crazyrohila
crazyrohila’s picture

Assigned: crazyrohila » Unassigned
StatusFileSize
new11.98 KB

Tried to inter-diff from #45, but failed.
So created patch with changes in page.htm.twig and css files according to that.
This cleanup will also cover https://www.drupal.org/node/2148319 and https://www.drupal.org/node/2304971.

lewisnyman’s picture

Status: Needs review » Needs work

I think it's better to keep each issue separate so it's easier to review and test.

The last submitted patch, 68: bartik-clean-up-footer-2398471-68.patch, failed testing.

crazyrohila’s picture

Assigned: Unassigned » crazyrohila
StatusFileSize
new11.02 KB

Removed css of other issues and re-reolled & updated patch.

crazyrohila’s picture

Status: Needs work » Needs review

Send to test bot

crazyrohila’s picture

Assigned: crazyrohila » Unassigned
lewisnyman’s picture

Status: Needs review » Needs work

Nice thanks

  1. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,144 @@
    +/* ------------------ Footer ------------------ */


    We need to convert this comment into a similar style that is at the top of every other file, with w @file tag, also rename it site footer

  2. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,144 @@
    +/* ------------------ Footer Top Styling ------------------ */
    ...
    +/* ------------------ Footer Bottom Styling ------------------ */


    These comments aren't inline with our single line comment standards, see: https://www.drupal.org/node/1887862#comments

rpayanm’s picture

Status: Needs work » Needs review
Issue tags: -Needs reroll
StatusFileSize
new1.74 KB
new9.75 KB
idebr’s picture

Status: Needs review » Needs work

@rpayanm Thanks for working on this!

  1. +++ b/core/themes/bartik/css/colors.css
    @@ -1,4 +1,7 @@
    +/**
    + * @file
    + * Color Module Styles.
    + */


    The comment by @Lewis Nyman was ment for site-footer.css only. There are separate issues for the different stylesheets, for more info have a look at the meta issue: #1342054: [META] Clean up templates and CSS

  2. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -1,52 +1,38 @@
    + * @file
    + * Footer.


    The comment should be updated to 'Site footer' to reflect the new name of the component.

+++ b/core/themes/bartik/templates/page.html.twig
@@ -167,10 +167,10 @@
+          <div id="site-footer__top" class="site-footer__top clearfix">

@@ -178,7 +178,7 @@
+          <div id="site-footer__bottom" class="site-footer__bottom clearfix" role="contentinfo">

This patch introduces two new id-attributes that are not referenced in any CSS or javascript. If I'm not mistaken these can be removed.

rpayanm’s picture

Status: Needs work » Needs review
StatusFileSize
new2.65 KB
new9.2 KB

ok thank you for you review :)

Status: Needs review » Needs work

The last submitted patch, 77: 2398471-77.patch, failed testing.

idebr’s picture

Don't mind the testbot, it's having a bad day :)

  1. +++ b/core/themes/bartik/css/components/contextual.css
    similarity index 59%
    rename from core/themes/bartik/css/components/footer.css

    rename from core/themes/bartik/css/components/footer.css
    rename to core/themes/bartik/css/components/site-footer.css


    The CSS file is renamed, but the file reference is not updated in bartik.libraries.yml. This means the CSS file is no longer loaded.

  2. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -1,52 +1,38 @@
    +/* ------------------ Footer Top Styling ------------------ */

    @@ -82,65 +68,80 @@
    +/* ------------------ Footer Bottom Styling ------------------ */


    These comments are not in line with our CSS coding standards, see #74.2

rpayanm’s picture

Status: Needs work » Needs review
StatusFileSize
new1.27 KB
new9.71 KB

ohh that rigth :)

rpayanm’s picture

StatusFileSize
new642 bytes
new9.69 KB

Or would be this.

Status: Needs review » Needs work

The last submitted patch, 81: 2398471-81.patch, failed testing.

Status: Needs work » Needs review

rpayanm queued 81: 2398471-81.patch for re-testing.

idebr’s picture

Issue summary: View changes
Status: Needs review » Needs work
StatusFileSize
new18.39 KB
  1. +++ b/core/themes/bartik/css/components/contextual.css
    @@ -1,8 +1,8 @@
    -.contextual-region .contextual .contextual-links a {
    +.contextual-region .contextual-links a {


    Let's leave this selector as is, since there is a separate issue for this file at #2398465: Clean up the "contextual" component in Bartik

  2. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -1,52 +1,38 @@
    -  color: #c0c0c0;
    +.site-footer__wrapper .content {
       color: rgba(255, 255, 255, 0.65);


    The duplicate color statement is to provide a fallback for browsers that don't support rgba colors. Removing those is probably better to leave for another issue.

  3. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -1,52 +1,38 @@
    -  color: #fcfcfc;
    +.site-footer__wrapper .content a {
       color: rgba(255, 255, 255, 0.8);


    Same here: the duplicate color attribute is to provide a fallback for browsers that have no support for rgba colors.

  4. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -1,52 +1,38 @@
    -  color: #fefefe;
    +.site-footer__wrapper .content a:hover,
    +.site-footer__wrapper .content a:focus {
       color: rgba(255, 255, 255, 0.95);


    And here

  5. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -54,27 +40,27 @@
    -#footer-columns .content {
    +.site-footer__top {
       margin-top: 0;
     }


    This is a different selector. The .site-footer__top has no margin-top.

  6. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -54,27 +40,27 @@
    -#footer-columns .content ul {
    +.site-footer__top ul {
    ...
    -[dir="rtl"] #footer-columns .content ul {
    +[dir="rtl"] .site-footer__top ul {


    These changes introduce a visual regression of the contextual links in the footer:

  7. +++ b/core/themes/bartik/templates/page.html.twig
    @@ -167,10 +167,10 @@
    -    <div id="site-footer__wrapper">
    +    <div id="site-footer__wrapper" class="site-footer__wrapper">


    Let's remove this id as well when it is no longer in use.

crazyrohila’s picture

Status: Needs work » Needs review
StatusFileSize
new11.66 KB
new4.44 KB

@lewis,
Both done.

@idebr,
1. Done.
2/3/4. I think we should do this in same issue, when cleaning up specific file.
5. Done.
6. Done, but not sure this is best approach. For now ul, li inside .content will get effected by styling.
7. Done.

idebr’s picture

Status: Needs review » Needs work
Issue tags: +Needs reroll

Patch no longer applies after #2398451: Clean up "layout" CSS in Bartik was committed.

@crazyrohila RE: 84.2 / 84.3 / 83.4 We left the fallback colors in on purpose in other issues mentioned in the meta #1342054: [META] Clean up templates and CSS. I love cleaning up code as much as you do (probably more), but let's leave this for another day :)

crazyrohila’s picture

Status: Needs work » Needs review
Issue tags: -Needs reroll
StatusFileSize
new12.63 KB

@idebr, That's fine.
Updated code.

idebr’s picture

Status: Needs review » Needs work
Issue tags: +Needs reroll
crazyrohila’s picture

Status: Needs work » Needs review
Issue tags: -Needs reroll
StatusFileSize
new12.5 KB
idebr’s picture

Status: Needs review » Needs work

@crazyrohila Thanks for the reroll! I found no more visual regressions, so that's great :). I do think we can clean up some more unused and unnecessary css:

  1. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,189 @@
    +.region-footer-first,
    +.region-footer-second,
    +.region-footer-third,
    +.region-footer-fourth,
    +.region-footer-fifth {


    Let's replace these selectors with .site-footer .region?

  2. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,189 @@
    +  .region-footer-first,
    +  .region-footer-second,
    +  .region-footer-third,
    +  .region-footer-fourth {
    ...
    +  [dir="rtl"] .region-footer-first,
    +  [dir="rtl"] .region-footer-second,
    +  [dir="rtl"] .region-footer-third,
    +  [dir="rtl"] .region-footer-fourth {
    ...
    +  .region-footer-first,
    +  .region-footer-second,
    +  .region-footer-third,
    +  .region-footer-fourth {


    Let's replace these selectors with .site-footer__top .region?

  3. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,189 @@
    +.site-footer__top .content li {
    +  list-style: none;
    +  margin: 0;
    +  padding: 0;
    +}


    These styles don't seem to have any effect and can be removed.

  4. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,189 @@
    +.site-footer__bottom .menu ,
    +.site-footer__bottom .menu-item {
    +  list-style: none;
    +  margin: 0;
    +  padding: 0;
    +}


    Let's split these selectors up, since the margin and list-style declaration have no effect on .menu-item.

  5. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,189 @@
    +  border-color: rgba(255, 255, 255, 0.15);


    The styling for border-color is not RTL specific and can be removed here.

  6. +++ b/core/themes/bartik/css/components/table.css
    @@ -11,7 +11,7 @@ table {
    -#footer-wrapper table {
    +.site-footer__wrapper table {

    @@ -69,8 +69,8 @@ tr th {
    -#footer-wrapper tr td,
    -#footer-wrapper tr th {
    +.site-footer__wrapper tr td,
    +.site-footer__wrapper tr th {
       border-color: #555;
       border-color: rgba(255, 255, 255, 0.18);
     }


    Let's move these overrides to the site-footer stylesheet, as they belong to the site-footer component.

  7. +++ b/core/themes/bartik/templates/page.html.twig
    @@ -167,10 +167,10 @@
    -    <div id="site-footer__wrapper">
    +    <div class="site-footer__wrapper">
    ...
    -          <div id="footer-columns" class="clearfix">
    +          <div class="site-footer__top clearfix">


    The site-footer currently uses three wrappers. Let's reduce this to two: .site-footer and .site-footer__top/__bottom.

  8. +++ b/core/themes/bartik/templates/page.html.twig
    @@ -167,10 +167,10 @@
           <footer class="site-footer section layout-container">


    The .section class here doesn't do anything and can be removed.

  9. +++ b/core/themes/bartik/templates/page.html.twig
    @@ -178,7 +178,7 @@
    +          <div class="site-footer__bottom clearfix" role="contentinfo">


    The newly added class clearfix doesn't do anything and can be removed.

crazyrohila’s picture

Status: Needs work » Needs review
StatusFileSize
new20.42 KB
new12.53 KB
new6.84 KB

There was visual regression issue against latest HEAD. Attached Screenshot.
bartik-footer-cleanup-91

@idebr, Thanks for feedback, appreciate that. Hope I'll have sharp eye like that after 3-4 months continue working on core's css, and can avoid these silly mistakes :P

1., 2. Done.
3., 4. Merged site-footer__top and site-footer__bottom li. Removed list-style and margin, but we still need padding to override default padding from system.theme.css
5., 6. Done
7. There are two wrappers around site-footer__top and site-footer__bottom, one to apply background and other for max-width. For Now I have removed one, and applied .layout-container class to site-footer__top and site-footer__bottom.
8., 9. Done

idebr’s picture

Issue summary: View changes
Status: Needs review » Needs work
StatusFileSize
new79.14 KB

@crazyrohila Awesome changes! I found a last one:

+++ b/core/themes/bartik/css/components/site-footer.css
@@ -93,18 +92,10 @@
 .site-footer__top .content ul {
-  list-style: none;

By removing the list-style attribute, the list items now displays discs outside the container. Let's either keep the current styling (eg. no discs) or fix the display of the discs so they are placed inside the container:

crazyrohila’s picture

Status: Needs work » Needs review
StatusFileSize
new12.8 KB
new1.13 KB
new28.51 KB
new33.71 KB

Removing list-style from all ul doesn't seem a good option to me, because we are providing wysiwyg to user. So change that selector to .menu and increased padding a bit for ul, ol.

And there was a issue with blockquote too, text was visible, which is fixed now.

Before
bartik-footer-blockquote-before

After
bartik-footer-blockquote-after

idebr’s picture

Issue summary: View changes
Status: Needs review » Needs work
StatusFileSize
new18.99 KB

@crazyrohila Thanks, this is looking really great! I found two minor nitpicks and one regression:

  1. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,189 @@
    +.site-footer blockquote {
    +    color: #555;
    +}


    Nitpick: the attribute has 4 spaces while the Drupal coding standards requires 2.

  2. +++ b/core/themes/bartik/css/components/site-footer.css
    @@ -0,0 +1,189 @@
    +.site-footer .content ol,
    +.site-footer .content ul {
    +  padding-left: 1.4em; /* LTR */
    +}
    +[dir="rtl"] .site-footer .content ol,
    +[dir="rtl"] .site-footer .content ul {
    +  padding-right: 1.4em;
    +  padding-left: 0;
    +}
    ...
    +.site-footer__top .content .menu {
    +  padding-left: 0; /* LTR */
    +}
    +[dir="rtl"] .site-footer__top .content .menu {
    +  padding-right: 0;
    +}


    This adds a 1.4em padding-left to the footer menu in site-footer_bottom. You can either use .site-footer .content ul:not(.menu) or add a new selector to override the padding.

  3. +++ b/core/themes/bartik/css/components/table.css
    @@ -11,9 +11,7 @@ table {
    -#footer-wrapper table {
    -  font-size: 1em;
    -}
    +


    Nitpick: this newline can be removed.

crazyrohila’s picture

Status: Needs work » Needs review
StatusFileSize
new1.23 KB
new12.84 KB

Updated code.

Didn't get time to check UI, just did suggested changes. tomorrow will check changes in UI.

idebr’s picture

Status: Needs review » Reviewed & tested by the community
Issue tags: -Needs manual testing, -Needs screenshots
StatusFileSize
new359.26 KB
new361.34 KB

@crazyrohila Cheers! I did another manual test to confirm there are no visual regressions.

Screenshot before:

Screenshot after:

wim leers’s picture

This would be much, much easier to review if it were rolled with git diff -M10% — that'd make the diff show changes to the footer CSS, rather than showing a deleted file and an added file.

Might be wise to still do that, to make it easier for a committer.

idebr’s picture

StatusFileSize
new10.77 KB

@Wim Leers Thanks for the pro-tip, I learned something new today :)

Rerolled the patch in #95 with the tip from #97

alexpott’s picture

Status: Reviewed & tested by the community » Fixed

CSS is not frozen in beta. Committed b3ab01c and pushed to 8.0.x. Thanks!

  • alexpott committed b3ab01c on 8.0.x
    Issue #2398471 by DickJohnson, crazyrohila, rpayanm, lauriii, idebr,...

Status: Fixed » Closed (fixed)

Automatically closed - issue fixed for 2 weeks with no activity.
