Problem/motivation

When enabling the entity translation module, a new content language negotiation option set is enabled, that looks almost identical to the interface translation settings:


The 80% use case however is that people would want to use the same settings on both (or if more are available, on those as well). The duplicity is confusing and can lead to errors.

Steps to Reproduce

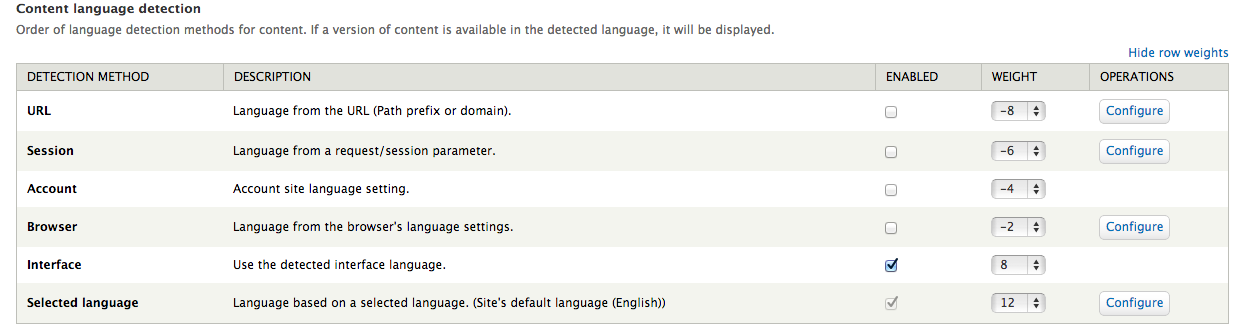

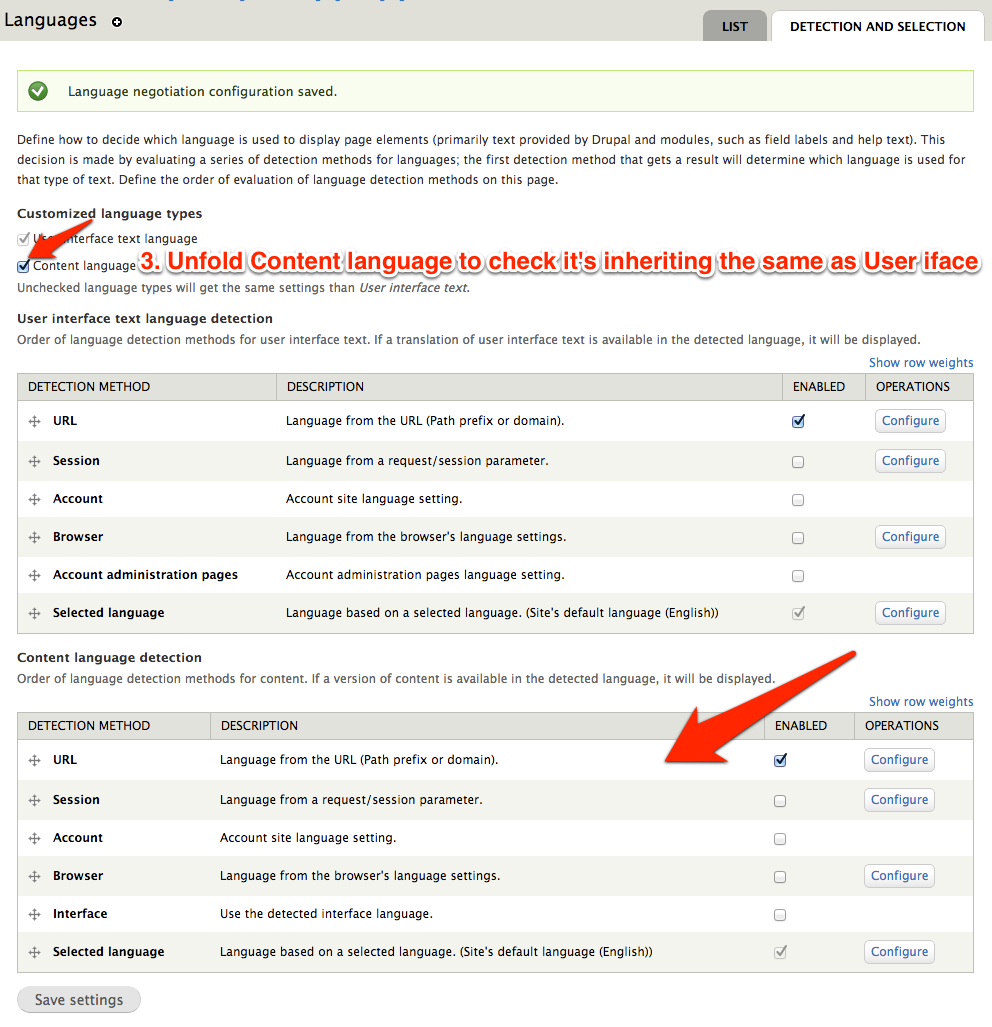

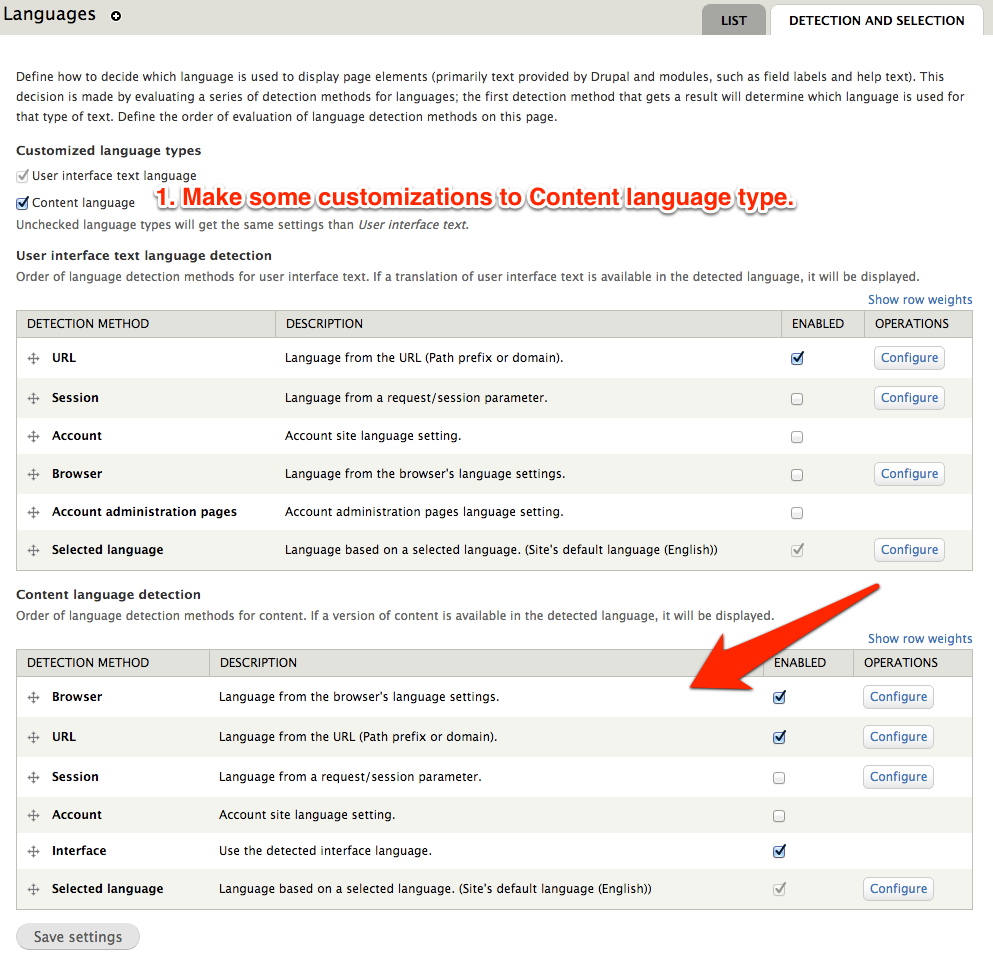

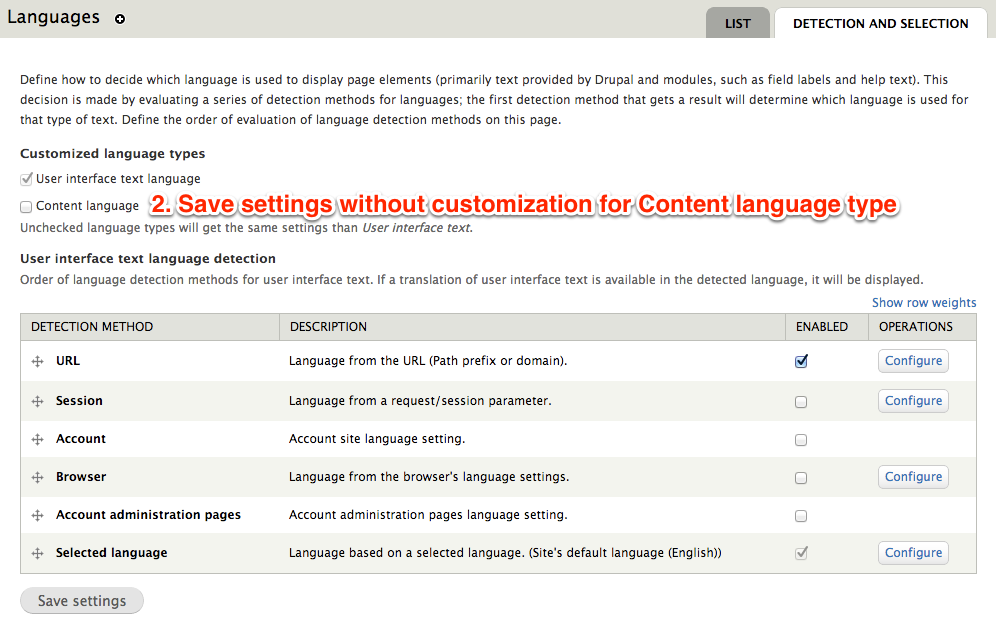

Detection and Selection UI

  1. Navigate to the modules page
  2. Enable the 'Content Translation' and 'Interface Translation' modules

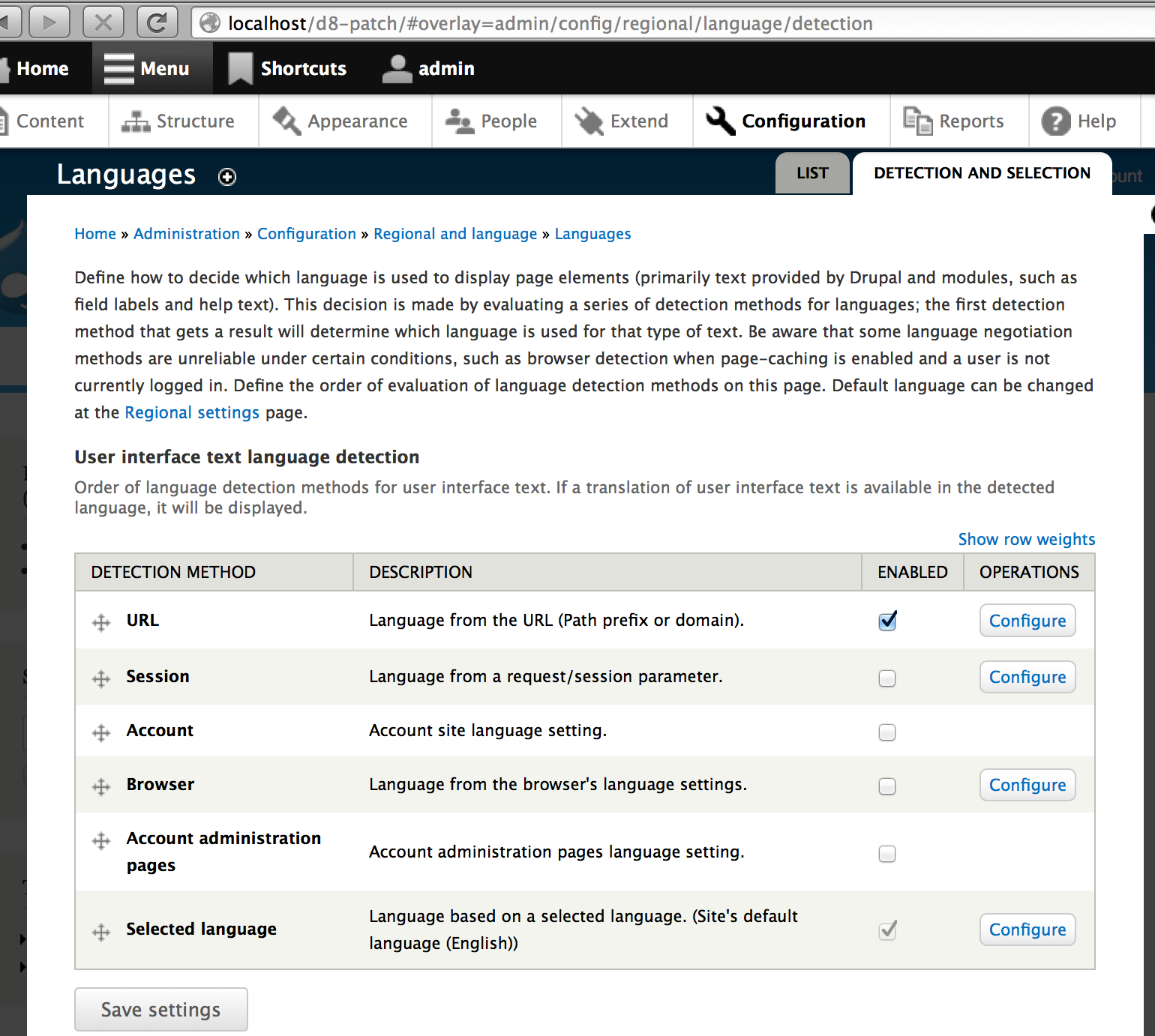

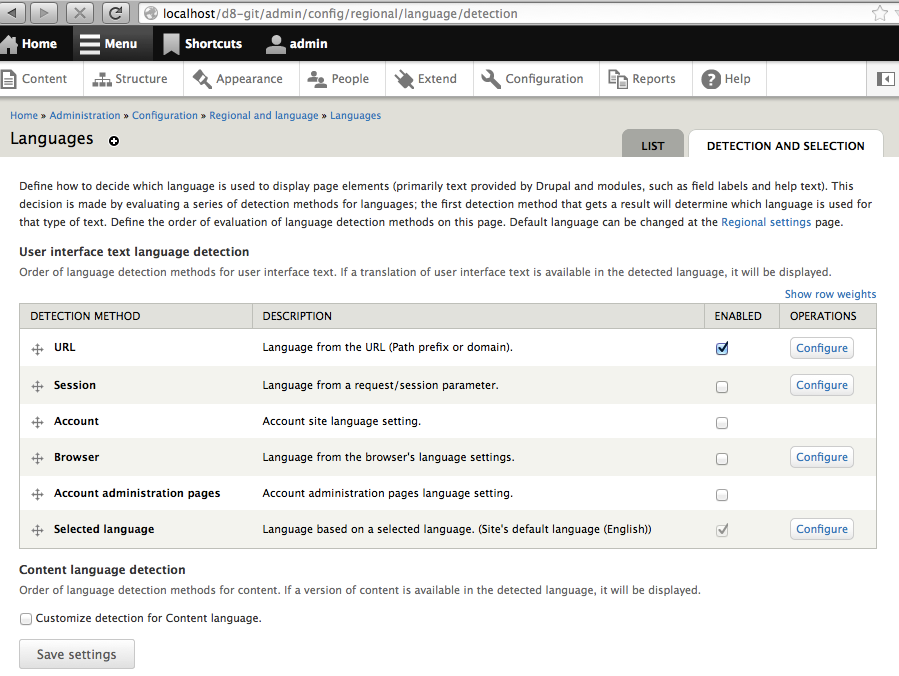

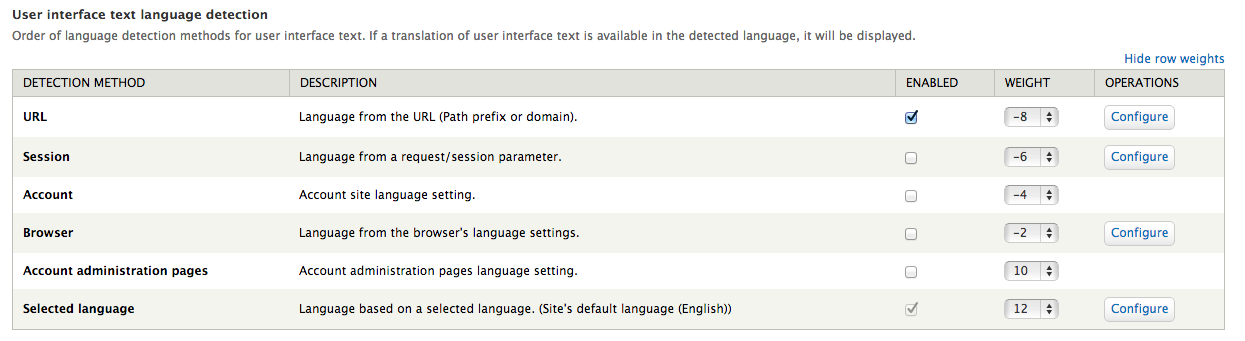

  3. Navigate to 'admin/config/regional/language/detection'
  4. The problem panels are on this page

Language Select Block

  1. enable both content translation and interface translation

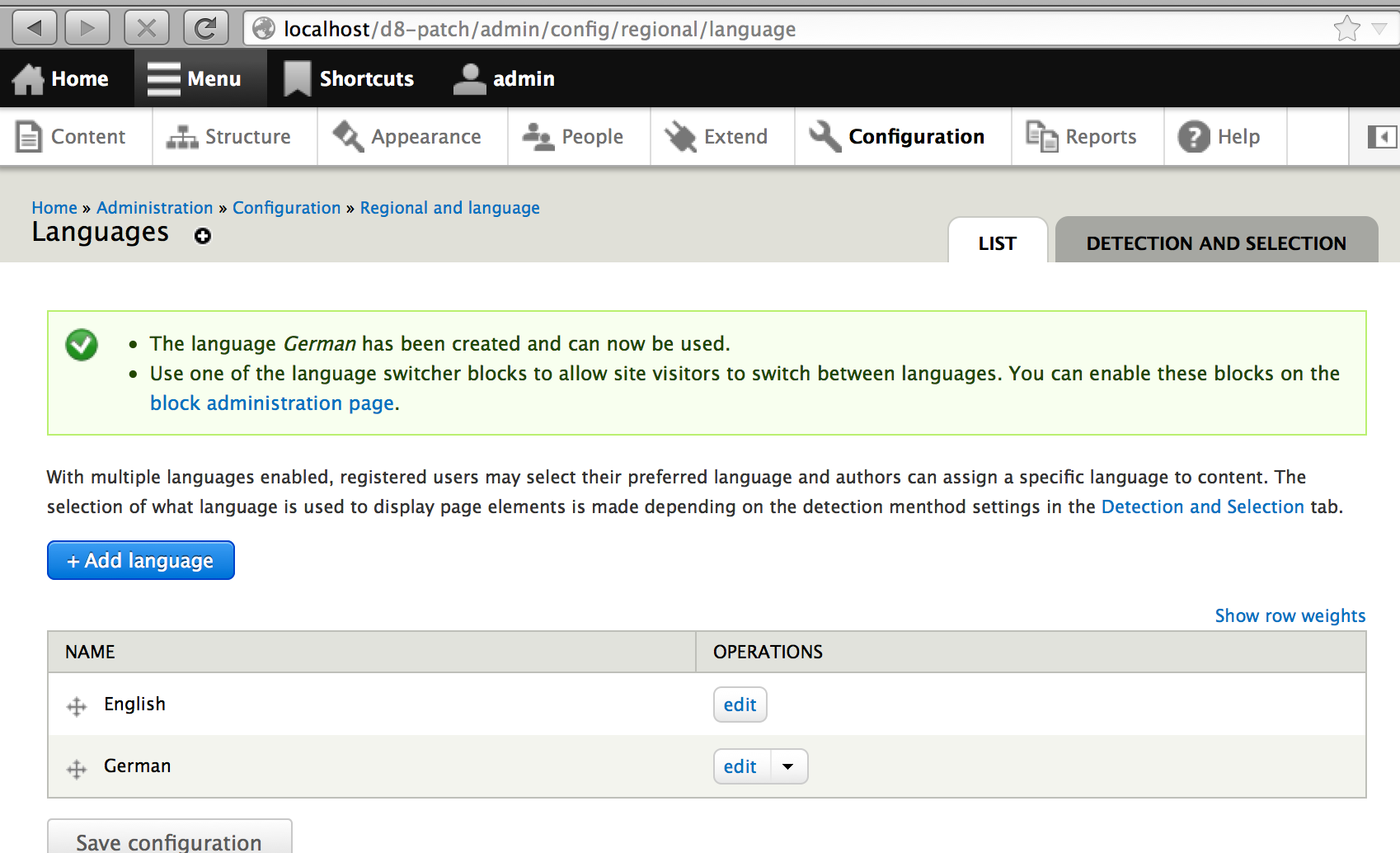

  2. add a few languages
  3. configure interface translation admin/config/regional/translate
  4. either translate some interface stuff or import a translation, for more visual impact, import: a) admin/config/regional/translate/import (or we could have installed in another language...) b) get translation file http://localize.drupal.org/translate/languages/es ( http://ftp.drupal.org/files/translations/7.x/drupal/drupal-7.19.es.po if that is helpful to just curl -O ) c) back at import admin/config/regional/translate/import browse for the downloaded file and import it
  5. go to home and see no different language
  6. add /es to the url and see spanish

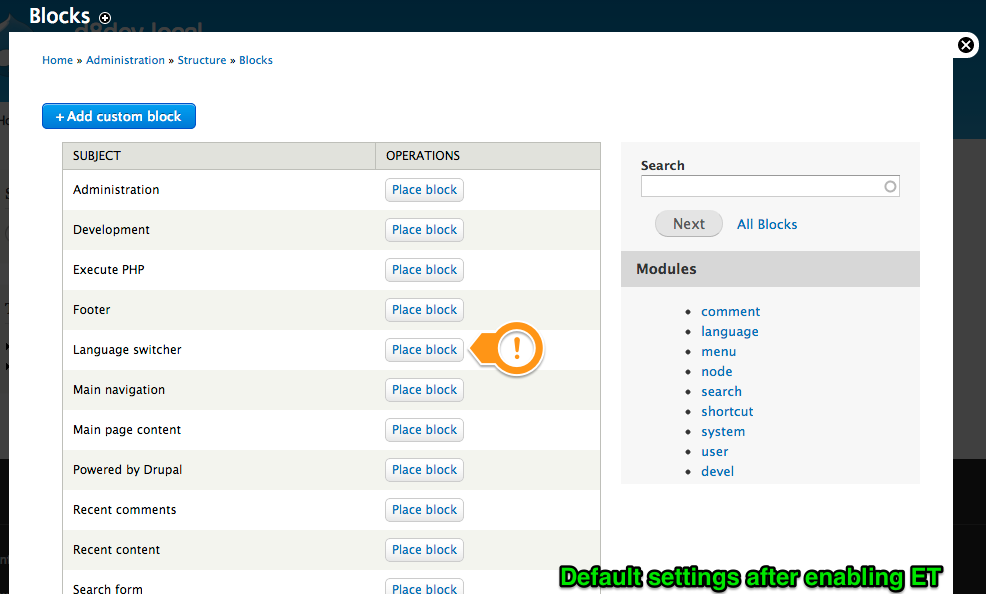

  7. enable the language switcher block .. uh .. admin/structure/block
  8. add block admin/structure/block/list/block_plugin_ui%3Abartik/add (the instructions said to enable it, and I expected to see it on the blocks page, under disabled. Note: change the help text after language added to say to add the language switcher block, instead of enable language switcher block)

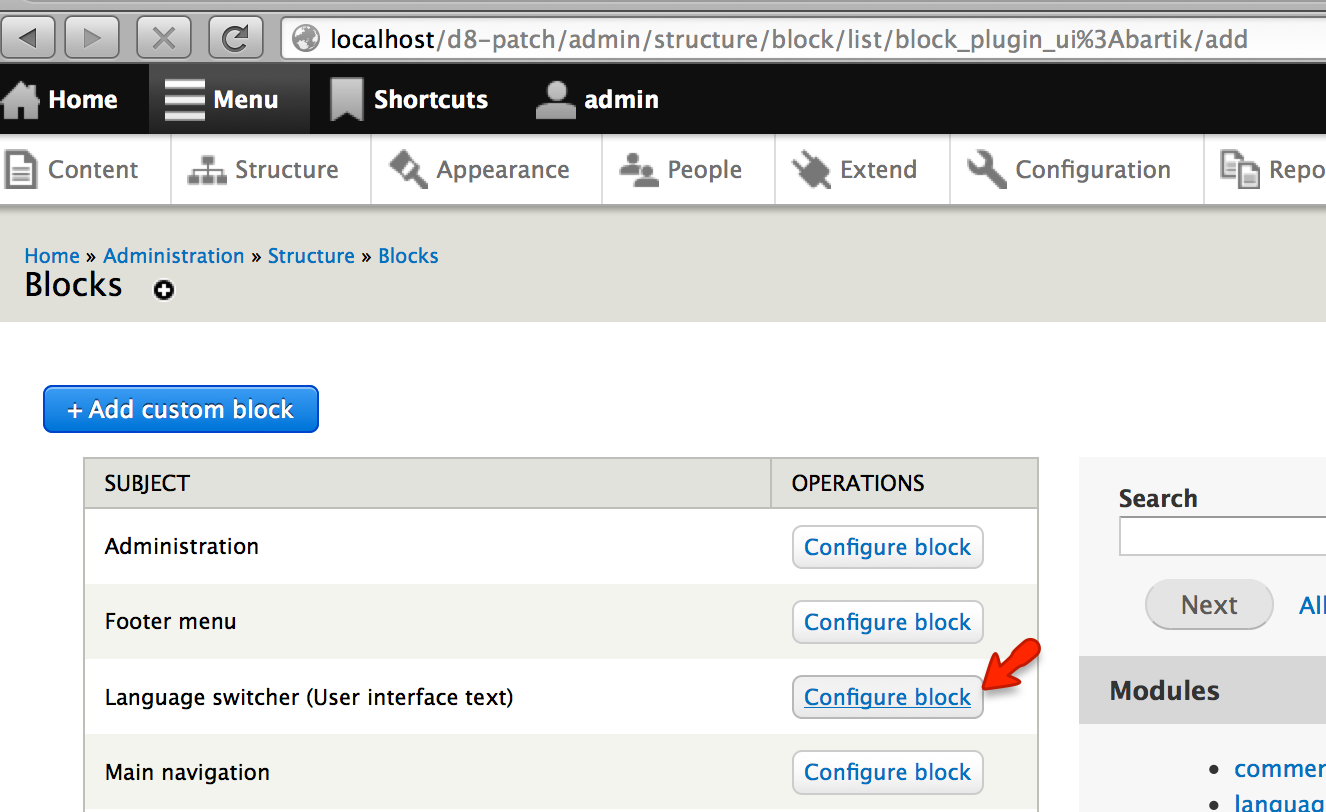

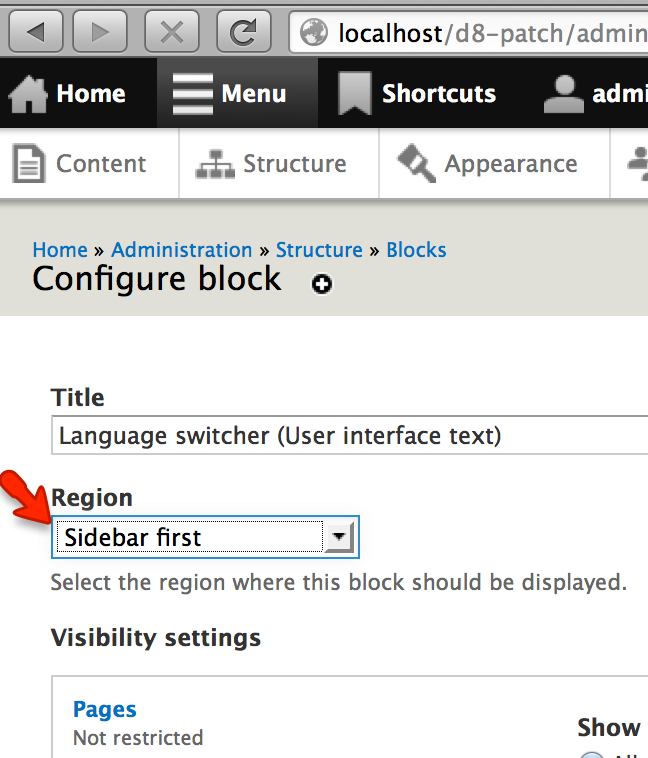

  9. configure block for Language switcher (User interface text) (I put it in the first sidebar)
  10. reorder blocks in the sidebar so language switcher is first (for convenience)
  11. use the language switcher block to switch to english (no prefix in the url), to spanish (/es prefix in the url) and see the UI language changes.
  12. Make some content. add article (title: Sample, Body: sample words)
  13. configure language settings to enable translation on admin/config/regional/content-language, check Content and then Article, save
  14. use the language switcher block and see that both the ui and the content switch (I think because the language switcher block adds or removes language code from the url and both the ui and the content detection and selection methods are using the url as the first method)

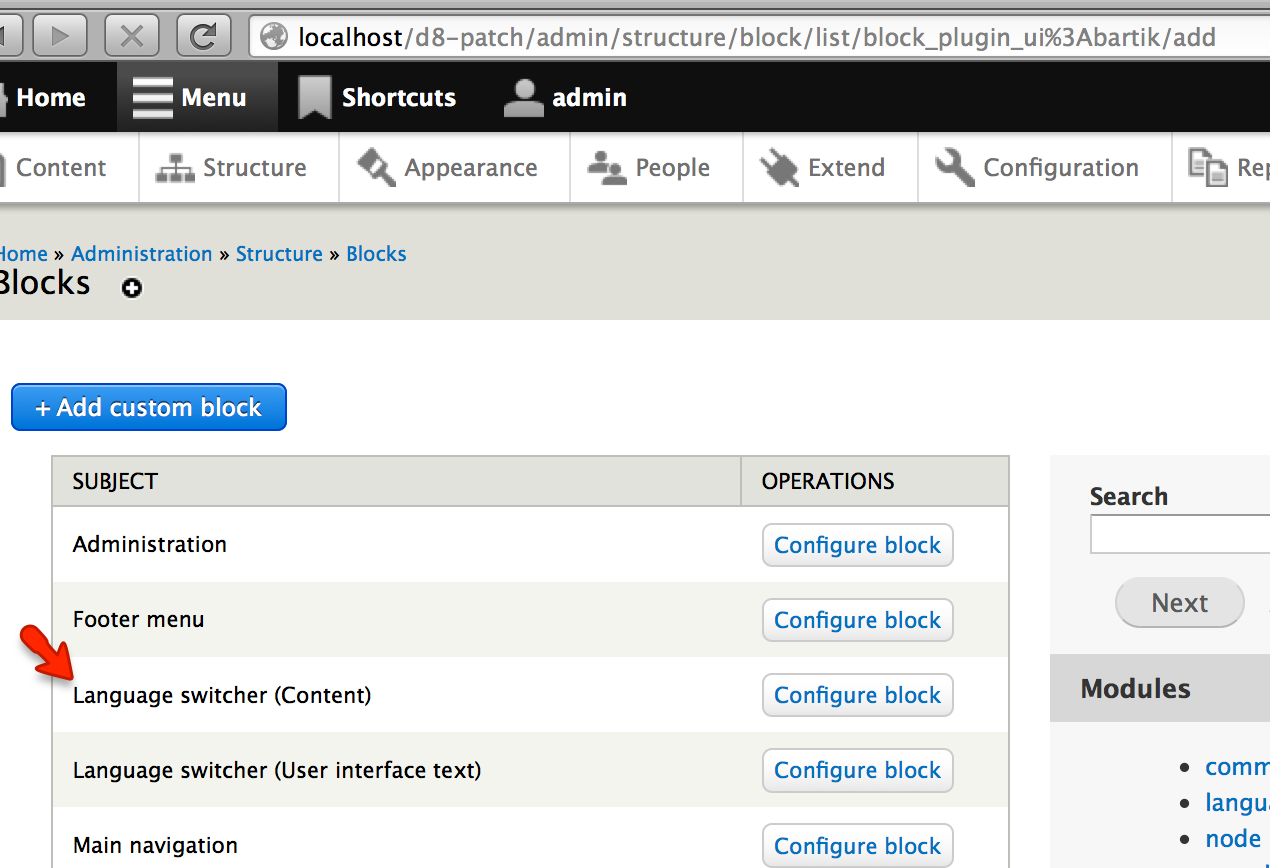

steps to show language switcher block problem

  • configure block for Language switcher (content) (put it in the first sidebar)
  • see two language switcher blocks

Proposed solution

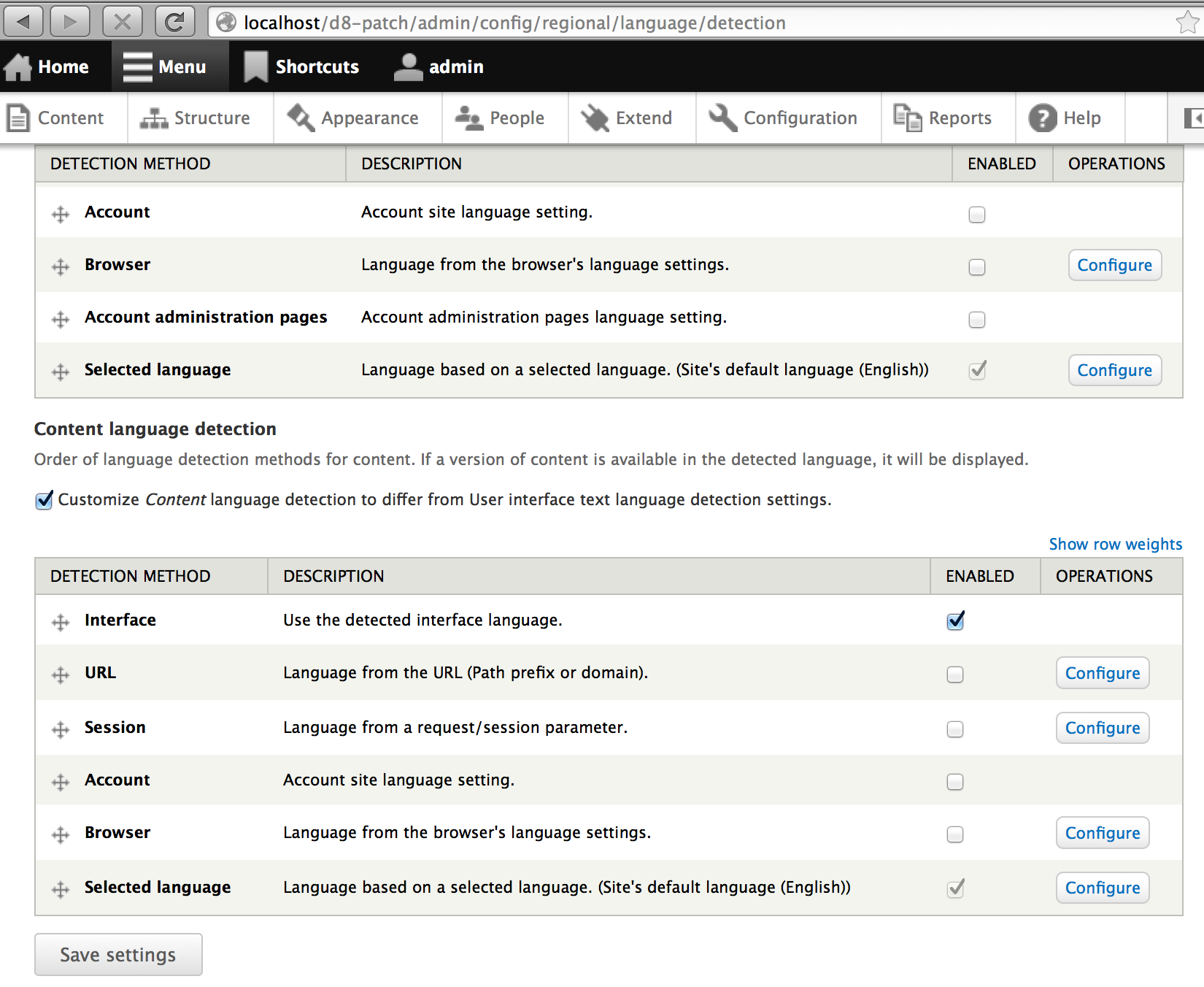

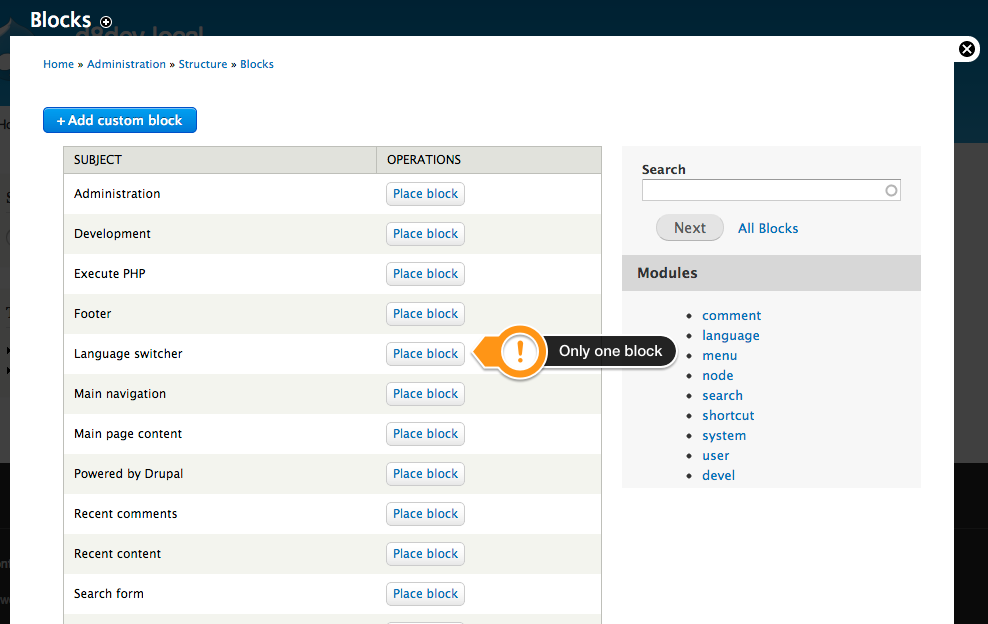

Only display the first one and then provide some UI to be able to specialise other things. Like the field UI display fields setup where you can specialise for search or rss display, but if you don't do it, it just uses the same settings as the default. UI needs to be figured out and implemented.

Remaining tasks

  • final(?) review. This is ready or really close to ready.
  • verify the comments are accurate, especially regarding fixed/locked

User interface changes

This is a UI issue, see the resolution above. Simplifies the detection and selection page, also only shows one language switcher block when that is appropriate.

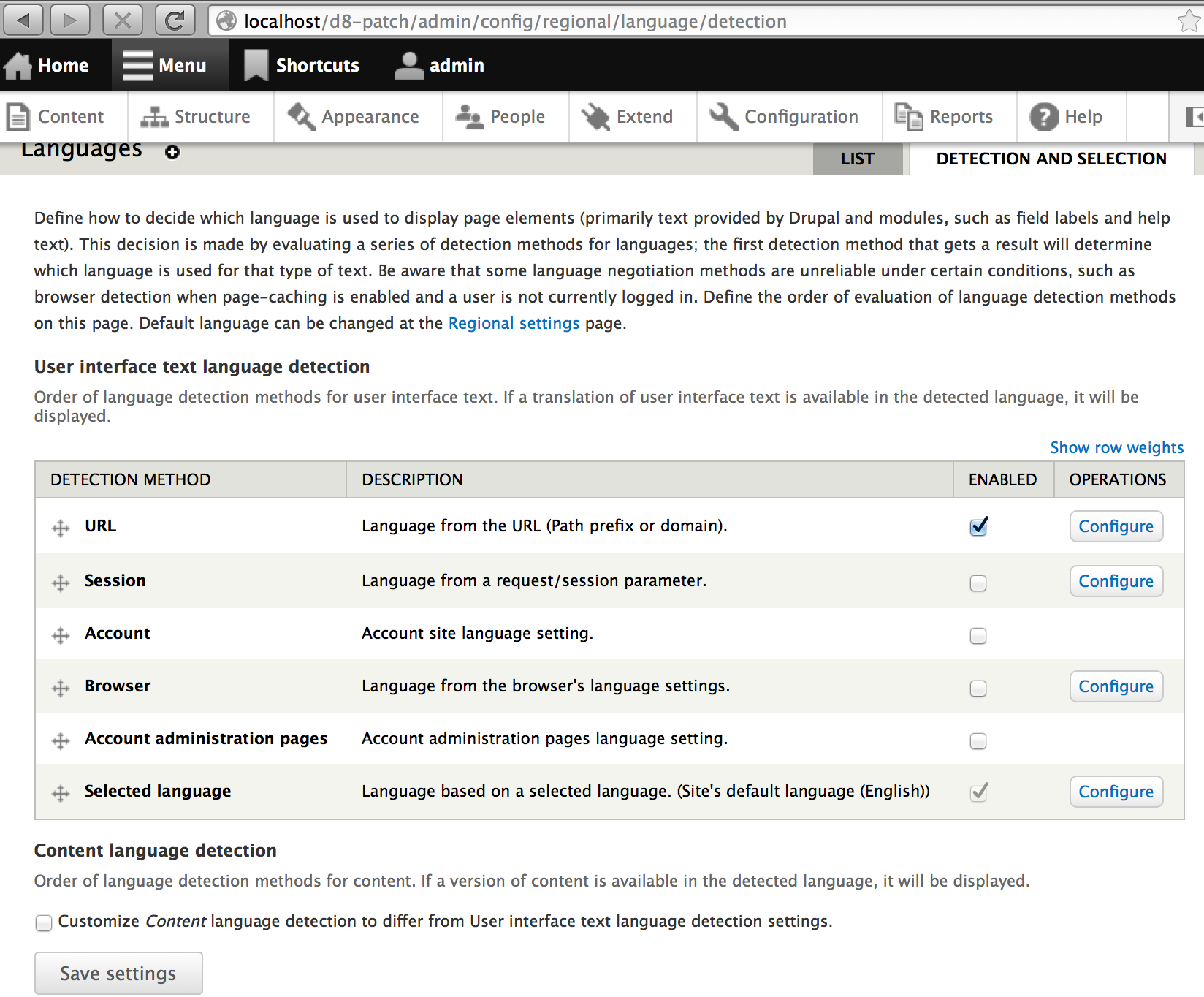

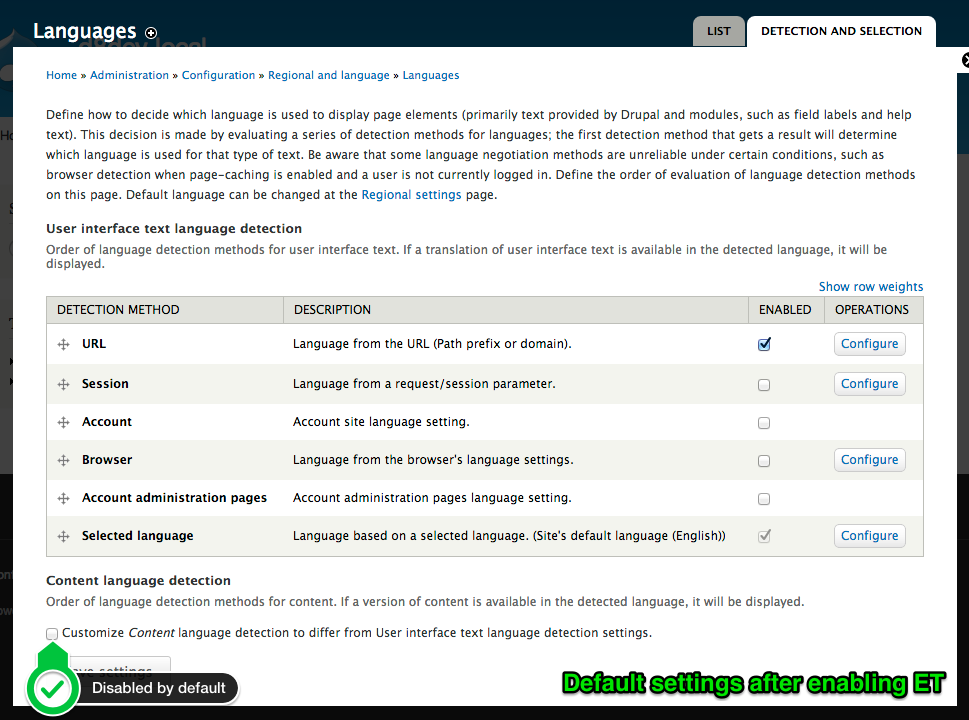

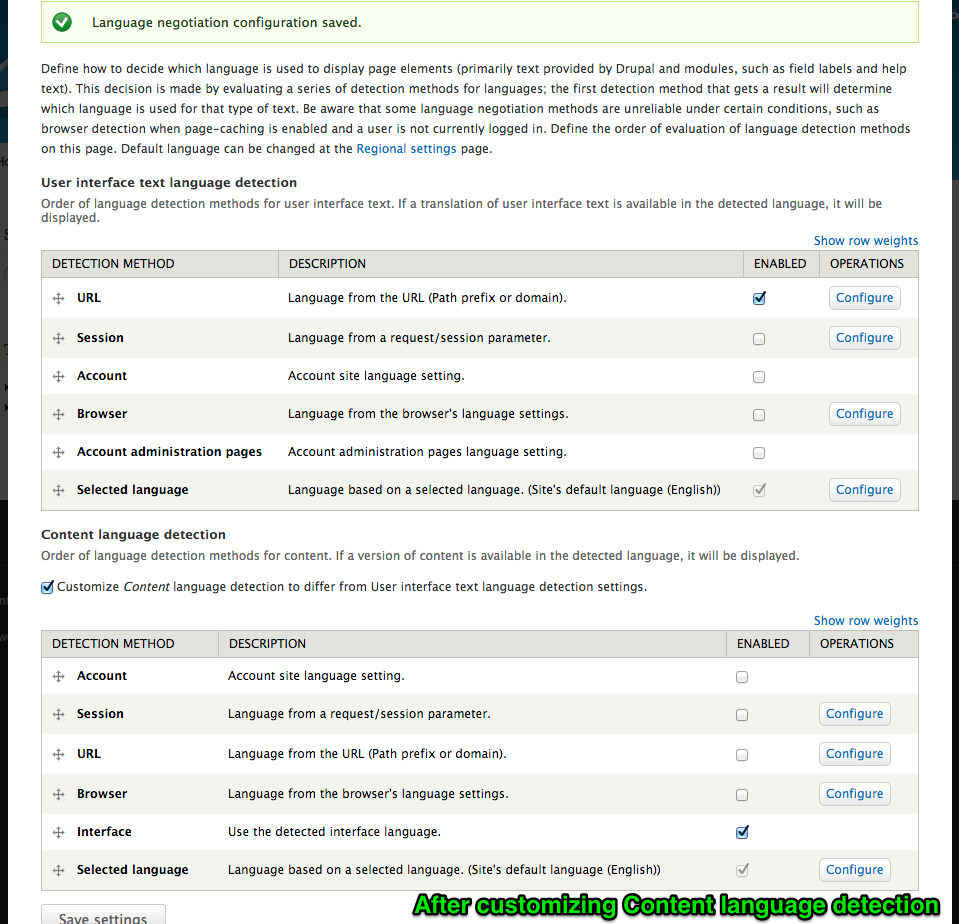

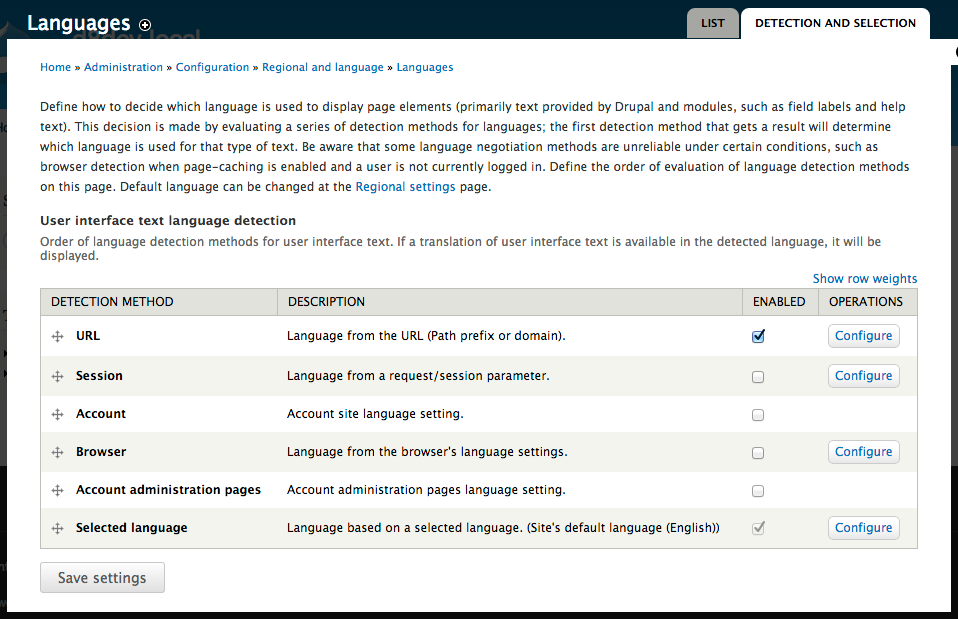

Screenshots of with the patch in #107 are still accurate.

API changes

language_types_get_configurable

We have dropped the $stored parameter since the info is stored in a configuration object.

-function language_types_get_configurable($stored = TRUE) {
+function language_types_get_configurable() {

language_types_set

We are now passing in the array of configurable language types.

-function language_types_set() {
+function language_types_set(array $configurable_language_types) {

Related

#2019511: Explain why the language switcher would not show under some configurations

Follow-ups

Files:
CommentFileSizeAuthor
#228 drupal-language-negotiation-UX-checkboxes-1833022-228.interdiff.do_not_test.patch6.71 KBplach
#228 drupal-language-negotiation-UX-checkboxes-1833022-228.patch30.83 KBplach
PASSED: [[SimpleTest]]: [MySQL] 56,438 pass(es). View
#225 drupal-language-negotiation-UX-checkboxes-1833022-225.patch29.71 KBkfritsche
FAILED: [[SimpleTest]]: [MySQL] 56,665 pass(es), 12 fail(s), and 7 exception(s). View
#225 interdiff-222-225.txt1.59 KBkfritsche
#223 drupal-language-negotiation-UX-checkboxes-1833022-223.patch29.16 KBkfritsche
FAILED: [[SimpleTest]]: [MySQL] 56,350 pass(es), 14 fail(s), and 7 exception(s). View
#223 interdiff-216-223.txt6.32 KBkfritsche
#221 drupal-language-negotiation-UX-checkboxes-1833022-221.patch28.48 KBkfritsche
FAILED: [[SimpleTest]]: [MySQL] 56,112 pass(es), 96 fail(s), and 90 exception(s). View
#216 drupal-language-negotiation-UX-checkboxes-1833022-216.patch28.49 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] Unable to apply patch drupal-language-negotiation-UX-checkboxes-1833022-216.patch. Unable to apply patch. See the log in the details link for more information. View
#212 interdiff.txt2.26 KBpenyaskito
#212 drupal-language-negotiation-UX-checkboxes-1833022-212.patch25.7 KBpenyaskito
PASSED: [[SimpleTest]]: [MySQL] 58,279 pass(es). View
#209 interdiff.txt777 bytespenyaskito
#209 drupal-language-negotiation-UX-checkboxes-1833022-209.patch25.67 KBpenyaskito
PASSED: [[SimpleTest]]: [MySQL] 58,164 pass(es). View
#206 interdiff-1833022-203-206.txt540 bytese0ipso
#206 drupal-language-negotiation-UX-checkboxes-1833022-206.patch25.65 KBe0ipso
PASSED: [[SimpleTest]]: [MySQL] 58,161 pass(es). View
#203 interdiff-1833022-199-203.txt2.97 KBe0ipso
#203 drupal-language-negotiation-UX-checkboxes-1833022-203.patch25.65 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] Invalid PHP syntax in core/modules/system/system.install. View
#199 drupal-language-negotiation-UX-checkboxes-1833022-199.interdiff.do_not_test.patch587 bytesplach
#199 drupal-language-negotiation-UX-checkboxes-1833022-199.patch25.46 KBplach
PASSED: [[SimpleTest]]: [MySQL] 57,611 pass(es). View
#193 drupal-language-negotiation-UX-checkboxes-1833022-193.patch25.35 KBe0ipso
PASSED: [[SimpleTest]]: [MySQL] 55,952 pass(es). View
#188 drupal-language-negotiation-UX-checkboxes-1833022-188.patch25.36 KBe0ipso
PASSED: [[SimpleTest]]: [MySQL] 55,574 pass(es). View
#184 interdiff-1833022-181-184.txt5.23 KBe0ipso
#184 drupal-language-negotiation-UX-checkboxes-1833022-184.patch25.36 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] 55,007 pass(es), 1 fail(s), and 0 exception(s). View
#181 interdiff-1833022-179-181.txt522 bytese0ipso
#181 drupal-language-negotiation-UX-checkboxes-1833022-181.patch25.35 KBe0ipso
PASSED: [[SimpleTest]]: [MySQL] 55,378 pass(es). View
#179 drupal-language-negotiation-UX-checkboxes-1833022-179.patch25.29 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] 55,836 pass(es), 0 fail(s), and 74 exception(s). View
#177 interdiff-1833022-173-177.txt364 bytese0ipso
#177 drupal-language-negotiation-UX-checkboxes-1833022-177.patch25.27 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] Unable to apply patch drupal-language-negotiation-UX-checkboxes-1833022-177.patch. Unable to apply patch. See the log in the details link for more information. View
#174 drupal-language-negotiation-UX-checkboxes-1833022-173.patch25.31 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] Unable to apply patch drupal-language-negotiation-UX-checkboxes-1833022-173.patch. Unable to apply patch. See the log in the details link for more information. View
#174 interdiff-1833022-168-173.txt6.11 KBe0ipso
#168 drupal-language-negotiation-UX-checkboxes-1833022-168.patch25.14 KBe0ipso
PASSED: [[SimpleTest]]: [MySQL] 56,308 pass(es). View
#168 interdiff-1833022-165-168.txt2.79 KBe0ipso
#165 drupal-language-negotiation-UX-checkboxes-1833022-165.patch25.2 KBYesCT
PASSED: [[SimpleTest]]: [MySQL] 55,332 pass(es). View
#165 interdiff-162-165.txt387 bytesYesCT
#162 drupal-language-negotiation-UX-checkboxes-1833022-162.patch25.2 KBCameron Tod
PASSED: [[SimpleTest]]: [MySQL] 55,958 pass(es). View
#162 interdiff.txt739 bytesCameron Tod
#160 drupal-language-negotiation-UX-checkboxes-1833022-160.patch24.48 KBYesCT
FAILED: [[SimpleTest]]: [MySQL] 56,842 pass(es), 0 fail(s), and 1 exception(s). View
#160 interdiff-154-160.txt5.19 KBYesCT
#154 drupal-language-negotiation-UX-checkboxes-1833022-154.patch24.31 KBe0ipso
PASSED: [[SimpleTest]]: [MySQL] 57,506 pass(es). View
#151 drupal-language-negotiation-UX-checkboxes-1833022-151.patch450.36 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] Unable to apply patch drupal-language-negotiation-UX-checkboxes-1833022-151.patch. Unable to apply patch. See the log in the details link for more information. View
#151 interdiff-1833022-144-151.txt1.52 KBe0ipso
#144 drupal-language-negotiation-UX-checkboxes-1833022-144.patch23.35 KBe0ipso
PASSED: [[SimpleTest]]: [MySQL] 56,671 pass(es). View
#144 interdiff-1833022-138-144.txt1.47 KBe0ipso
#138 drupal-language-negotiation-UX-checkboxes-1833022-138.patch22.39 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] 55,612 pass(es), 131 fail(s), and 0 exception(s). View
#138 interdiff-1833022-136-138.txt3.9 KBe0ipso
#136 drupal-language-negotiation-UX-checkboxes-1833022-136.patch21.02 KBYesCT
FAILED: [[SimpleTest]]: [MySQL] 55,382 pass(es), 129 fail(s), and 0 exception(s). View
#134 core-i18n-lang-negociation-1833022-134.patch39.87 KBnod_
FAILED: [[SimpleTest]]: [MySQL] Unable to apply patch core-i18n-lang-negociation-1833022-134.patch. Unable to apply patch. See the log in the details link for more information. View
#134 interdiff.txt4.29 KBnod_
#127 drupal-language-negotiation-UX-checkboxes-1833022-127.patch39.4 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] 55,539 pass(es), 128 fail(s), and 0 exception(s). View
#127 interdiff-1833022-120-127.txt2.98 KBe0ipso
#120 drupal-language-negotiation-UX-checkboxes-1833022-120.patch18.65 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] 55,409 pass(es), 1 fail(s), and 0 exception(s). View
#120 interdiff-1833022-117-120.txt649 bytese0ipso
#117 drupal-language-negotiation-UX-checkboxes-1833022-117.patch18.58 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] 55,267 pass(es), 0 fail(s), and 351 exception(s). View
#117 interdiff-1833022-113-117.txt3.34 KBe0ipso
#113 interdiff-1833022-105-113.txt11.88 KBe0ipso
#113 drupal-language-negotiation-UX-checkboxes-1833022-113.patch17.71 KBe0ipso
FAILED: [[SimpleTest]]: [MySQL] 55,592 pass(es), 0 fail(s), and 417 exception(s). View
#107 Screenshot_4_21_13_11_14.png122.28 KBe0ipso
#107 Screenshot_4_21_13_11_16.png79.73 KBe0ipso
#107 Screenshot_4_21_13_11_19.png158.15 KBe0ipso
#107 Screenshot_4_21_13_11_21.png86.08 KBe0ipso
#107 Screenshot_4_21_13_11_22.png192.94 KBe0ipso
#107 Screenshot_4_21_13_11_24.png93.44 KBe0ipso
#105 drupal-language-negotiation-UX-checkboxes-1833022-105.patch17.38 KBe0ipso
PASSED: [[SimpleTest]]: [MySQL] 54,760 pass(es). View
#105 interdiff.txt935 bytese0ipso

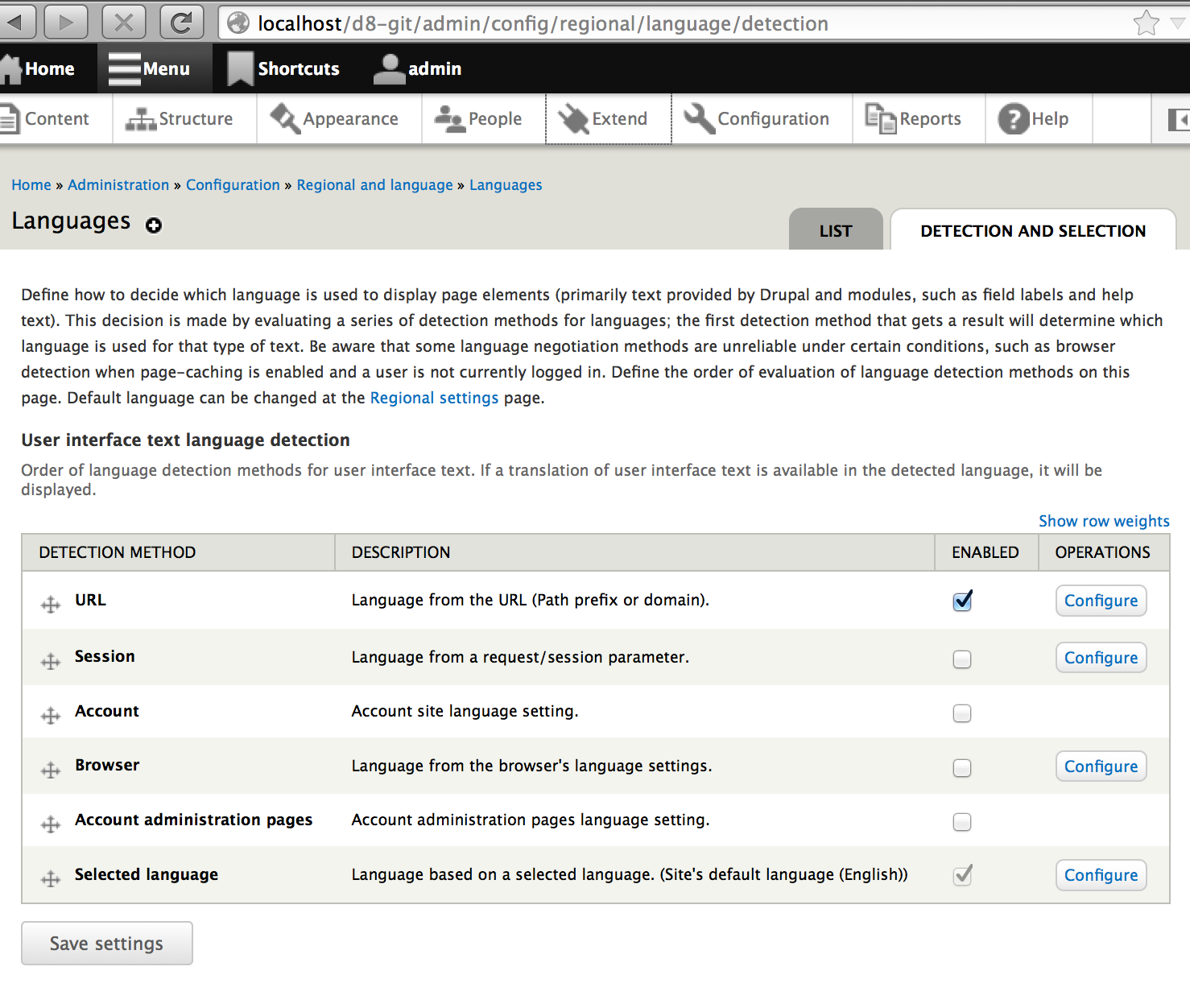

#102 withoutcontenttranslation.png314.88 KBYesCT

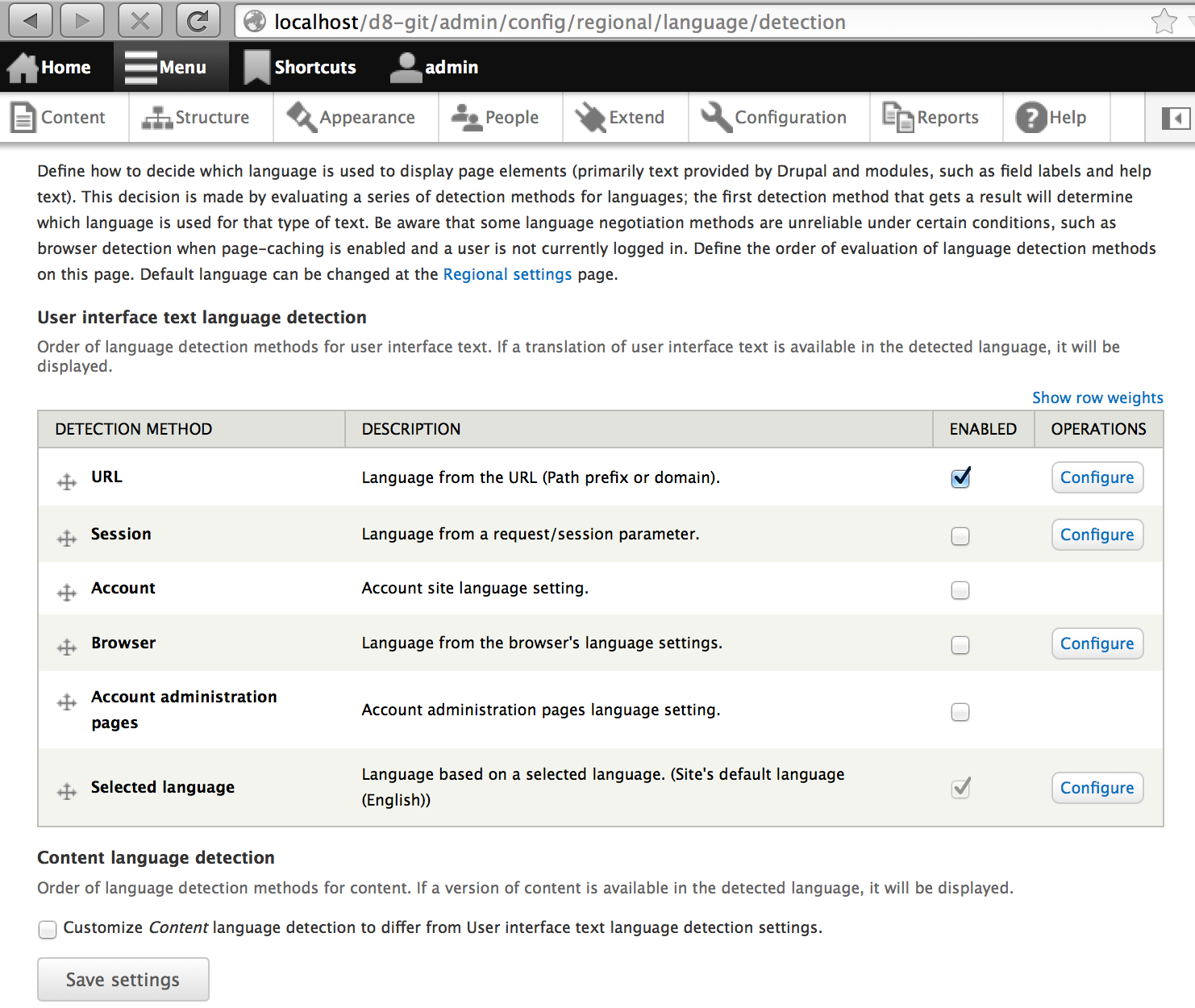

#102 withcontenttranslationenabled.png325.95 KBYesCT
