commit message (message needs work. Not sure if we are at the point for suggesting one yet.):
Issue #1648930 by Jose Reyero, YesCT, tstoeckler, spearhead93, alexpott, yched, Gábor Hojtsy, fago, effulgentsia, dawehner: Introduce configuration metadata and use it for translation.

Problem/Motivation

As a site builder I want Drupal core (and module/theme) shipped configuration, such as default views, email text settings, the site maintenance message, the default contact form, and so on, translatable just as the software it ships with. Also I want to let translators who might not have access to change user email text, views or contact form settings to be able to modify and update the translations as needed.

With the Drupal 8 configuration system, multilingual sites loose two key features which need to be restored and the ultimate goal in Drupal 8 is to make configuration generally translatable. All three require metadata, about the configuration stored, to be properly restored.

  1. When default configuration is saved into the database, the code setting up the default configuration used to use t() on the strings that were translatable. So configuration was saved initially in the site's default language. (Think content types, forums vocabulary name, etc.) This is lost with Drupal 8 because we have no information as to which parts of configuration are to be translated or are translatable.
  2. For variable_set()/get() based settings, unmodified menu items and many other things in Drupal 7, unless you modify the original values, translation updates are applied to your configuration translation. This lets you get translation updates for shipped configuration so long as you don't customize it. The configuration system does not currently have granular modification tracking and again no translatability metadata.
  3. Finally, other pieces of configuration have one-off translation implementations but should be generalized. For configuration translation, core only has two implementations: path alias language support and date format language support. Both have highly custom code and highly custom user interfaces to operate. First to reproduce these (at least date formats as ported to Drupal 8's configuration system), we need metadata about translatability. Also, we want to generalize this feature to other types of configuration. We cannot say Drupal is a multilingual CMS in 2013 onwards when it cannot even translate the site name you enter!

Proposed solution

Design goals

The following design goals have been set out for this system:

  1. Separate metadata from the data itself to avoid repetition and keep .yml configuration files simple.
  2. Avoid repetition in the metadata files themselves and allow for representation of metadata for pluggable systems (image effects, views, etc).
  3. The metadata must not be needed for regular pages (that just retrieve configuration values).

Metadata file format and placement

Introduce configuration metadata with basic information about each element in the configuration structure. Using YML files for the description of the metainformation, we can use the same format as applied to configuration itself.
This metadata will match configuration data with data types defined by the TypedData API so a) we'll be able to access configuration data as typed data and b) We can identify data types in the configuration data that are to be localized.
Metainformation is proposed to be placed in a sibling directory of the shipped configuration files using the same machine name. For example, core/modules/system/config/system.maintenance.yml looks like this:

enabled: '0'
message: @site is currently under maintenance. We should be back shortly. Thank you for your patience.

The metafile for this YML is at core/modules/system/meta/system.maintenance.yml (note the meta subdirectory in place of config):

enabled:
   .label: 'Put site into maintenance mode'
   .type: boolean
message:
  .label: 'Message to display when in maintenance mode'
  .type: text

The metadata file follows the same structure as the original YML file but uses keywords prefixed with . (dot) to add more information to the data. This is to differentiate the child elements from the metadata elements, it serves the same purpose as # in Form API to differentiate properties from children. The keywords used here are (two groups):

Keyword group I. data type definition

For the data type definition of the element as specified by the TypedData API:

- .label: contains the 'label' for the data type definition for the element.
- .type: contains the 'type' for the data type definition for the element.
- .definition: contains an array with any other keys of the data type definition for the element

** While we could stick all the data type definition into the '.definition' array, more than label and type is barely needed. More definitions (than label and type) is just for a) rare cases when we need to use the full TypedData API properties and b) also for future extensions allowing contributed modules to define their own TypedData data types which may need more complex definitions. Having 'label' and 'type' will be enough for almost all cases. Leaving .definition out of the file for those makes the metadata files more readable and easier to write (they save one level of indentation). For a side by side comparison of how this would look using only the '.definition' array see more discussion in the follow-up #1851498-7: Polish file format of configuration metadata (for translation)

keyword group II. Nesting and Includes

For defining the structure of the configuration data matching nested elements / plugins in the configuration data with their metadata:

- .include: Name of other configuration metadata element to be included (and merged with the current metadata). This allows reusing metadata from components for different containers. An example is the 'image.style.%' metadata using multiple instances of 'image effects'.
- .list: Contains an array of metadata to be reused for all of the elements in a list. An example is the user.mail metadata that defines mail text and body once to be used for all the emails in the user.mail configuration file.

Metadata applied to multiple configuration files (% placeholder)

When metadata need to apply to multiple configuration files, the metadata file name should use a % placeholder where variable values are possible. For example, contact form categories are in files contact.category.{category name}.yml, such as contact.category.webmaster.yml, contact.category.sales.yml, but they follow the same structure, so the metadata should apply to all of them. A % placeholder is used (same as with tpl.php template file wildcards) to account for this, so core/modules/contact/meta/contact.category.%.yml applies to all contact categories. The structure of the metadata file is the same as above, it just applies to a set of configuration files.

Metadata for nested data structures

In many cases configuration contains nested data structures provided by plugins or other sources where the nested data structure in itself has a pattern and need configuration metadata. In this case, nested levels of metadata can be provided by referring to nesting patterns. Take image effects. A sample configuration file for that (core/modules/image/config/image.style.medium.yml) looks like the following:

name: medium
label: Medium (220x220)
effects:
  bddf0d06-42f9-4c75-a700-a33cafa25ea0:
    name: image_scale
    data:
      width: '220'
      height: '220'
      upscale: '1'
    weight: '0'
    ieid: bddf0d06-42f9-4c75-a700-a33cafa25ea0

Note the main properties name and label as well as the property "effects" which embeds configuration that has its own structure, name, etc. A corresponding metadata file for image styles uses the above explained wildcard matching for all image effects core/modules/image/meta/image.style.%.yml:

name:
  .label: 'Machine name'
label:
  .label: 'Label'
  .type: text
effects:
  .label: 'Style effects'
  .list:
    .label: 'Image effect'
    weight:
      .label: 'Weight'
      .type: integer
    ieid:
      .label: 'IEID'
    name:
      .label: 'Machine name'
    data:
      .include: 'image.effect.[ %parent.name]'
      .label: 'Data'

This defines metadata for name and label as usual and then defines 'effects' as a list of nested objects which under the '.list' key have metainformation to be reused for all the effects in the list, that are indexed in the configuration data by UUID.
The first part of this (.list) metadata are the common properties for all image effects that are dependent on the container object (image style), thus they belong to the container, not to the plugins themselves.

The second part, inside 'data' is an include that will include for each of the image effects the metadata defined by 'image.effect.[ %parent.name ]', [ %parent.name ] being the value of 'name' property from each of the nested objects in the configuration data. ( %parent refers to the parent element of the one the include is in. So this refers to the parent elment's 'name' property)

In the example, this include will add the metadata from 'image.effect.image_scale' (name = image_scale).

Note that for each of the nested effects we are merging two arrays of metadata to get the final result:
1. Metadata for image effects specific of image styles (weight, uuid), this is defined in image.style.%.yml
2. Specific metadata for a given effect, in this case 'image_scale', defined in image.effect.image_scale.yml

While the first one (1) is specific of image styles, the other (2) can be reused for image effects in the case they are used by a different object (that is not an image style).
This accounts for the case of a component (typically a plugin) being used in several, independent systems it has no knowledge of. Example: the configuration for a field formatter can be included in a view, a block, a regular entity display... The metadata provided by the field formatter about its own settings is destination-agnostic and can thus be included by all these independant systems.

The image_scale specific metadata file explains width, height and upscale properties from the image_scale specific embedded structure:

Metadata in core/modules/image/meta/image.effect.image_scale.yml

width:
  .label: 'Width'
  .type: integer
height:
  .label: 'Height'
  .type: integer
upscale:
  .label: 'Upscale'
  .type: boolean

These two metadata files merged serve as description of this nested object.

Implementation details

The metadata system is based on existing subsystems implemented by the TypedData API and the configuration APIs. The .yml files are read and handled by the existing configuration API readers, and the data types are defined and handled using TypedData. A new config_element type is defined to handle elements that have structured data (lists or have children).

The metadata objects are built recursively so the system supports any level of nested objects that contain other nested properties. The system is extensible; modules can define their own TypedData configuration wrappers. However we may not need to extend it since the complexities required by Views are already supported.

Lets use site name as an example.
Files related to this example:
core/modules/system/config/system.site.yml
contains in part:

name: Drupal

and core/modules/system/meta/system.site.yml
contains in part:

name:
  .label: 'Site name'
  .type: text

To get type wrapped data based on a config element:

// Get a TypedData wrapper for this configuration. This returns a Drupal\Core\Config\Metadata\TypedConfig object.
$wrapper = config_wrapper('system.site');

// This returns not a string but a Drupal\Core\TypedData\Type\String object.
$name_property = $wrapper->get('name');

$name_property->getType() // will return 'text'.
$name_property->getValue() // will return the site name ('Drupal' by default).
$name_property->getElementLabel() // will return 'Site name'. Not part of this patch. See: ...

Locale module extends the TypedConfig by providing a LocaleTypedConfig that implements TranslatableInterface, actually allowing to get translated configuration data using the localization system. This is used to build the language-specific override data that will be loaded on top of each configuration object.

// Wrap system site information with Locale config accessors.
$data = config('system.site')->get();
$wrapper = new LocaleTypedConfig('system.site', $data, locale_storage());
// Get a config wrapper that works with the Spanish overriden version of this config.
$translation = $wrapper->getTranslation('es');
// Get a a nested array with the translated strings.
$strings = $translation->getData();

For a key piece of the patch, see locale_config_update_multiple() where the LocaleTypedConfig is used to retrieve translations of pieces of configuration from the Locale system and saved as overrides with the configuration system for later retrieval.

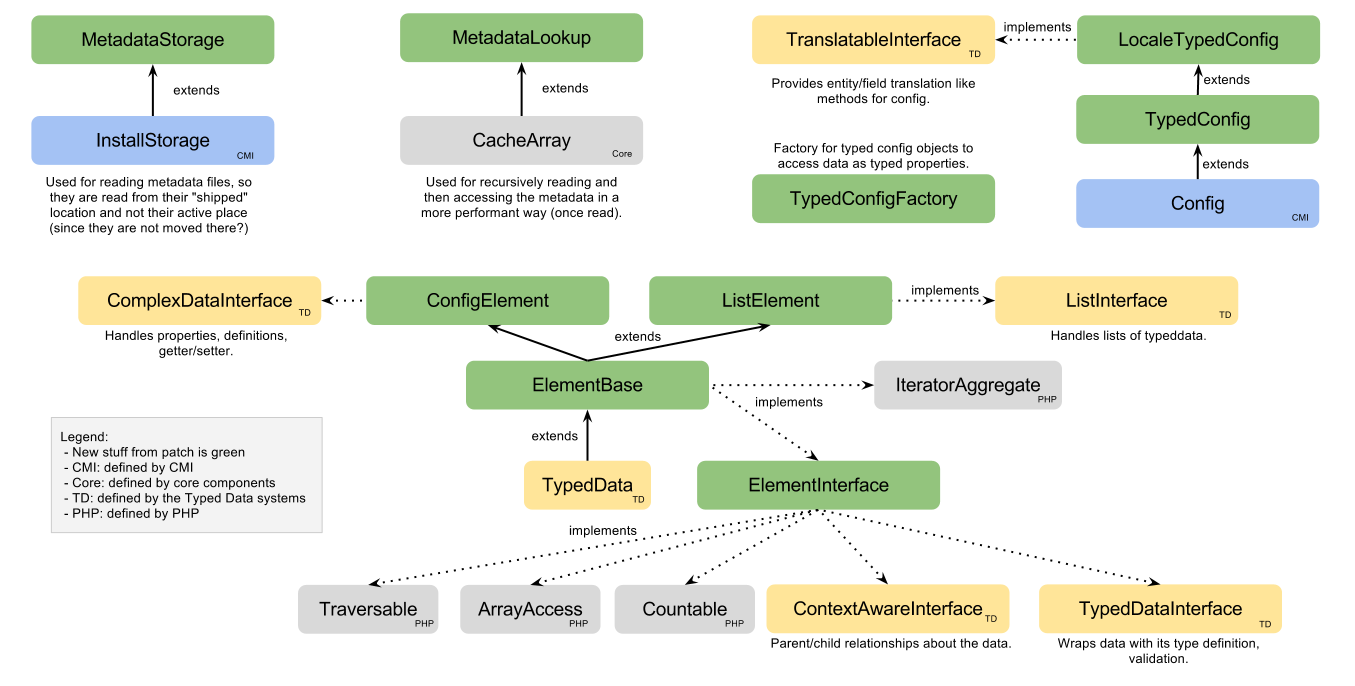

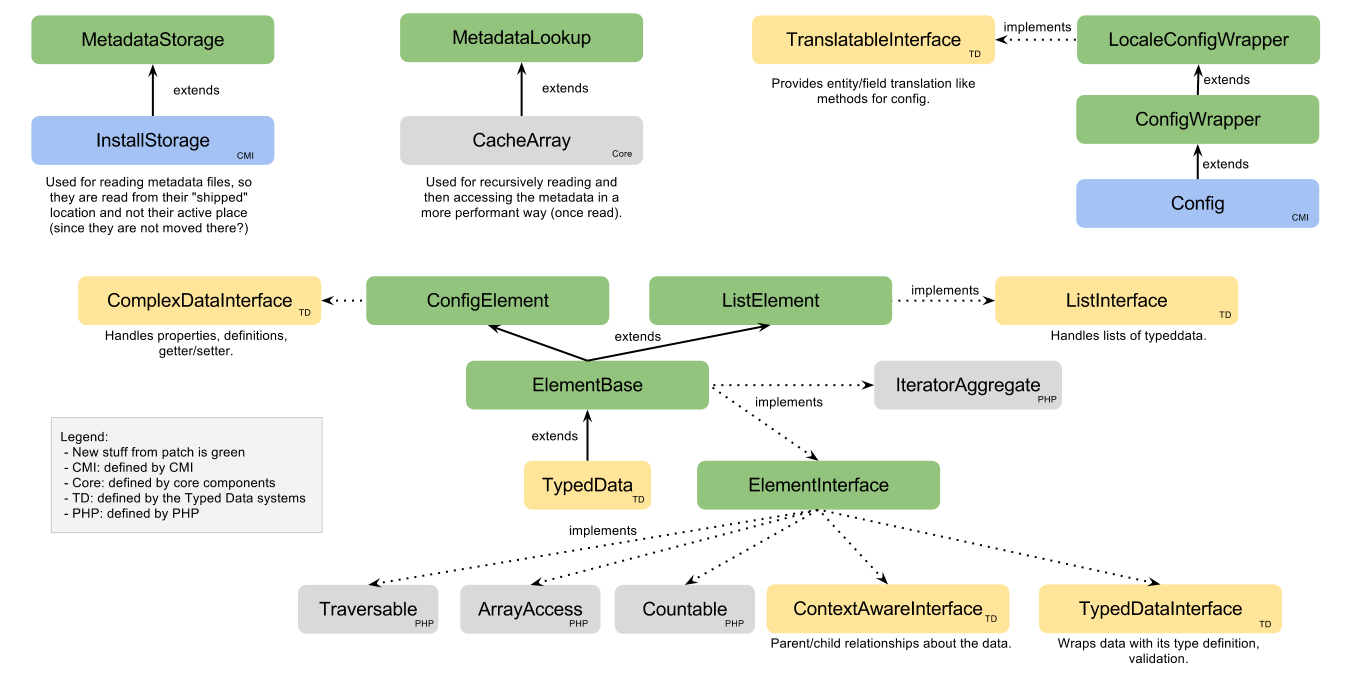

The full class/interface structure of the patch is as follows:

Some great side benefits

Though the primary use of this is getting the default imported configuration translated, it can also be used for building a data browser for any configuration object and also for auto generating settings forms.
The data browser is demonstrated by an example module, which also provides metadata for Views, not yet included in the patch, see:
- Config Demo module (browse or translate any configuration), http://drupal.org/sandbox/reyero/1635230
- Views configuration, generated by the demo module out of the metadata, screenshot, https://drupal.org/files/views_config_metadata_example.png

Translation API

The code rebuilds configuration translations every time string translations are updated (or new modules/themes are added). Using the string location data structure for source strings, we can track which strings belong to each configuration object so we only need to update affected ones when updating the translation.

Translatable data types are identified using hook_data_type_info(), see 'text' in system_data_type_info() in the patch. This data type is meant to represent 'human readable (aka translatable) text'. There are two small additions to the definition of these elements that can be added to the '.definition' array of the metadata if needed:
- 'translatable' => FALSE, to opt out from translation.
- 'locale context', to define locale context for translation,

In short, a configuration value is translatable (by core locale module) if:

  • It is a 'text' data type, and doesn't have a 'translatable' => FALSE flag
  • It remains with its default value from initial module installation.

There is no support yet for translating these strings once customized, since the localization system doesn't support user defined strings nor translating from source languages other than English. Module default configuration files, the ones provided with the module, are assumed to be English language unless they contain a different high level 'language' property with a different language code.

Test drive the patch!

An example of using these with specific details in comment #198

  1. Apply the patch, install a fresh Drupal 8
  2. Under Extend, Enable the Locale module (Language module is a dependency so it gets enabled too.)
  3. Under Configuration » Regional and languages » Languages add a language
  4. Go to the string translation page at Configuration » Regional and languages » User interface translation
  5. Search for strings like "Medium" (should find Medium (220x220)) or "Account cancellation request" (should find the email subject). If it does not find that souce string, might have to visit the page at Configuration » Media » Image styles and click on Medium (220x220).
  6. Translate either the image style name or the email subject. For example translate Medium (220x220) to Middle (220x220)
  7. Observe change applied by .yml files in active storage:
    • in the ui Configuration » Media » Image styles (switch to the language you translated it for, for example: es/admin/config/media/image-styles)
    • appearing with the translation overrides in Configuration » Regional and languages » User interface translation (admin/config/regional/translate)
    • in the active storage in sites/default/files/config_XXXXXXXXXXXXXXXXXXXXXXX/active/locale.config.yy.image.style
    • similar data structures appearing in the database as config overrides. [searching in phpmyadmin for Middle]

Remaining Tasks

  • (done)#250 7.b make this issue summary exactly accurate to match the most recent patch
  • (done) verify the test drive the patch instructions are accurate.
  • (done) make follow-ups for namespace docs style only file changes that were removed from the patch

Follow-ups

Unless critical to getting this in before feature freeze please do not start new discussions on this issue.
Please open a follow-up for items related to this issue. List them here.

Code standard follow-ups:

Files:
