This is a meta issue concentrating on improving the UX in display suite. Code is written in a feature branch called restructure. (git clone --branch restructure

Background info:

Feel free to give your opinion!


  • Restructured the strcuture/ds screen

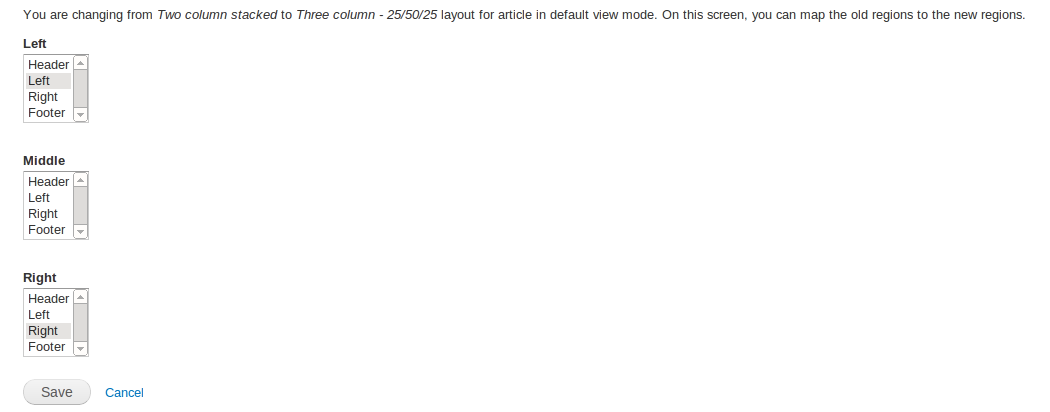

  • Improved the switch layout screen,
  • Each layout can have a preview

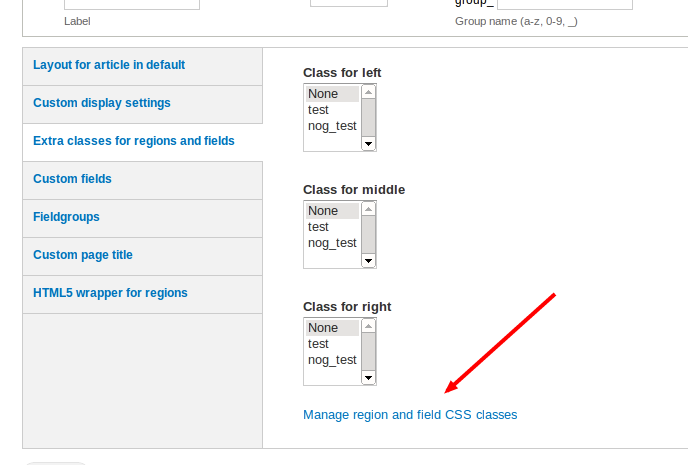

  • Changed "styles" to "CSS classes" in the user interface and in the code

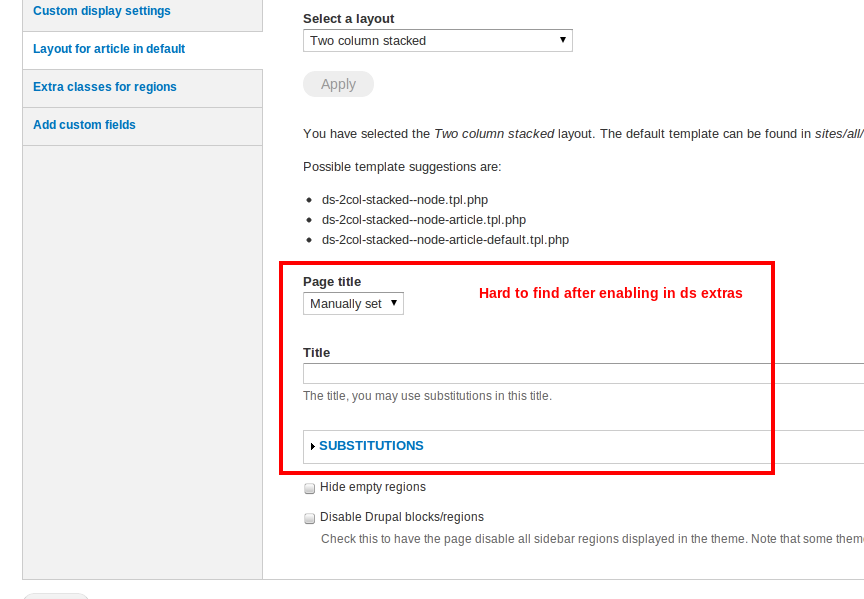

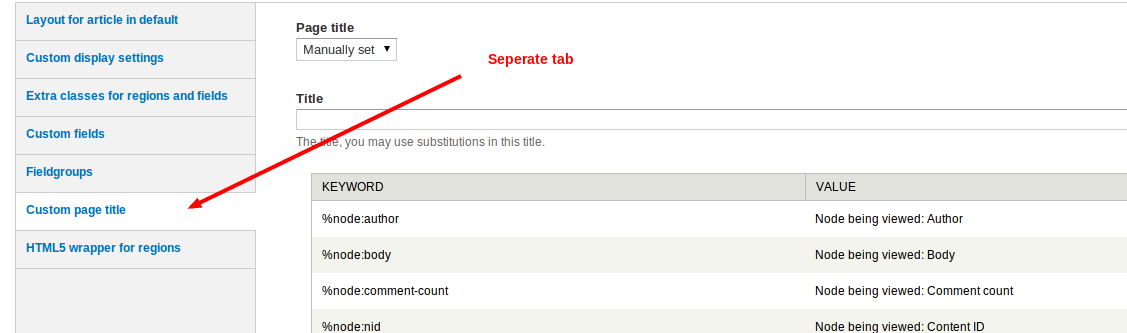

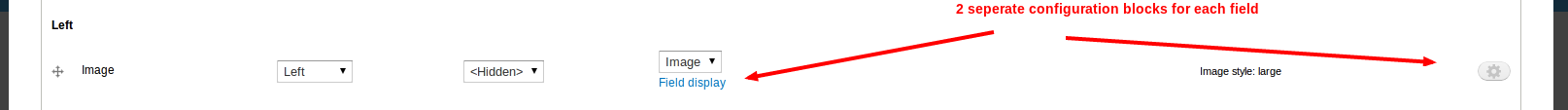

  • Seperated primary and secondary tasks in the UI
  • Contextual links are on by default and can't be turned off in DS extras abymore
  • The revision mode is insert by default and can't be turned off in DS extras anymore
  • HTML5 solution: wrappers for the layout, regions and subregions (Field Group)


  • New template system
  • Region settings (next to the region and not in vertical tabs)

Known issues

  • Field template tests are broken

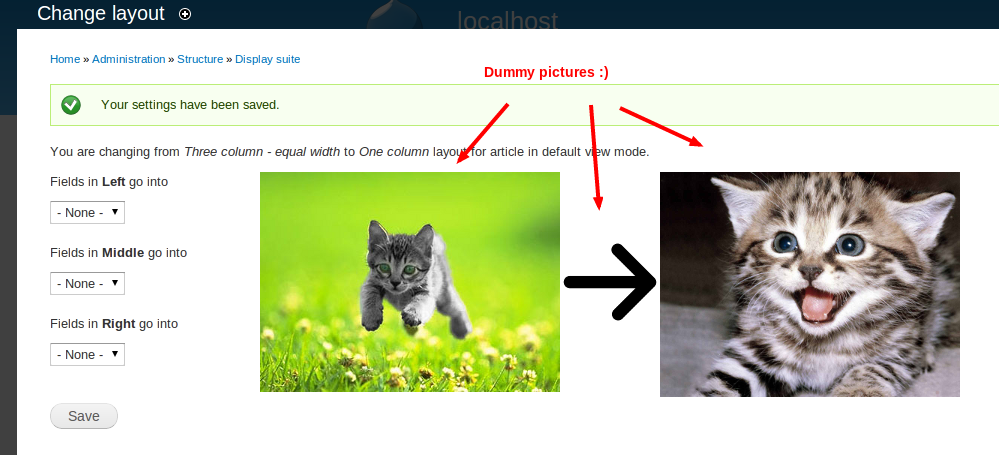

  • The layout previews are kittens

Original issue:

After playing around with ds again after a long hiatus I had a closer look at how the main admin links for DS are labeled and described. I think these could be improved in how they 'project' what you will find on the pages behind them.

I'm attaching a mockup with my suggestions for discussion.

I removed 'View modes' in this version, thinking these should be found as children of 'Displays/layouts'. I understand that's a more drastic change then rewording existing UI text. I did it also because View modes are hard to explain :)

Members fund testing for the Drupal project. Drupal Association Learn more


yoroy’s picture

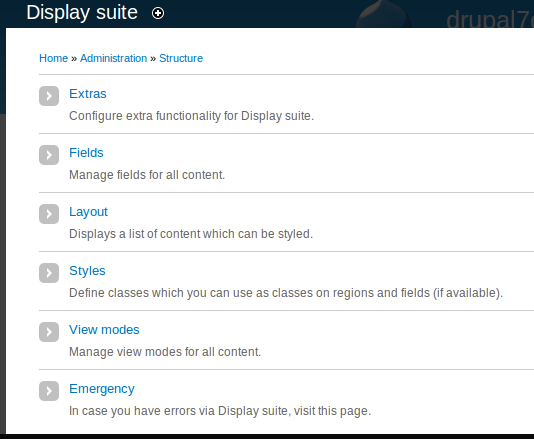

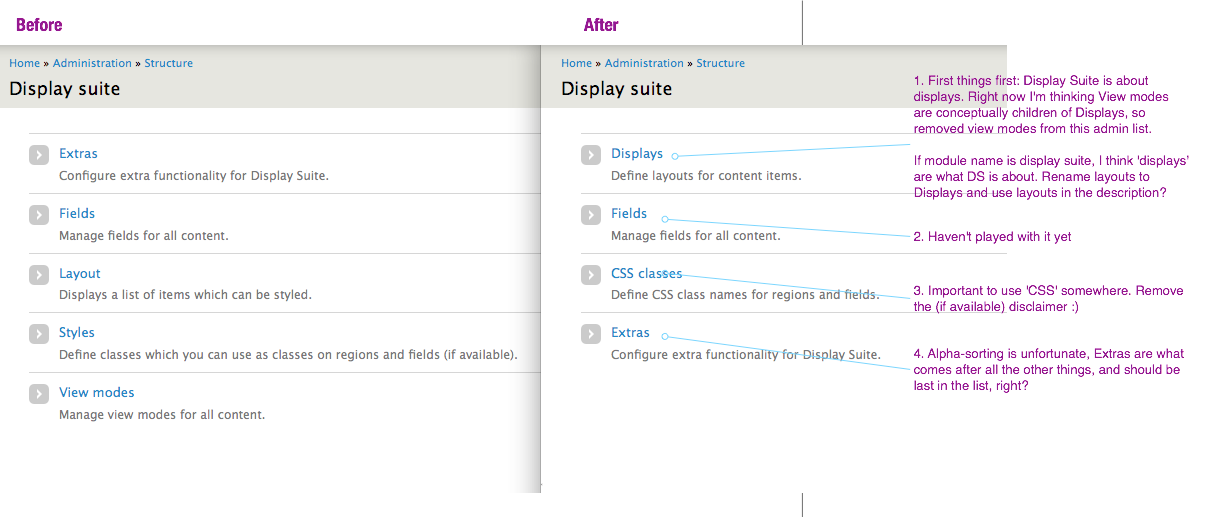

before/after screenshot of admin/structure/display suite links
