Issue

Many fieldsets can be expanded and collapsed by clicking on a link with the name of the fieldset (e.g. "File Attachements" and "Tags"). This does not properly convey the purpose of the link, nor does the links context within the page.

Success criterion 2.4.4 of WCAG 2.0 requires that:

Link Purpose (In Context): The purpose of each link can be determined from the link text alone or from the link text together with its programmatically determined link context, except where the purpose of the link would be ambiguous to users in general

.

Recommendation

Provide better link text for the expand / collapse links, or otherwise provide context for the purpose of the link, in a non-visual manner.

Resources

Understanding Success Criterion 2.4.4 | Understanding WCAG 2.0
- http://www.w3.org/TR/2008/NOTE-UNDERSTANDING-WCAG20-20081211/navigation-...

Files:
CommentFileSizeAuthor
#73 term-edit-error-collapseJS.jpg214.76 KBpverrier
#66 fieldsets-541568-alternative-v4.patch3.08 KBbowersox
Passed: 14679 passes, 0 fails, 0 exceptions
[ View ]
#64 screen-capture-11.png47.09 KBmgifford
#62 fieldsets-541568-alternative-v3.patch3.62 KBbowersox
Passed: 14712 passes, 0 fails, 0 exceptions
[ View ]
#58 fieldsets-541568-alternative-v2.patch3 KBbowersox
Passed: 14693 passes, 0 fails, 0 exceptions
[ View ]
#54 fieldsets-541568-alternative-v1.patch2.98 KBbowersox
Passed: 14690 passes, 0 fails, 0 exceptions
[ View ]
#49 fieldsets-541568_v10.patch5.92 KBbowersox
Passed: 14684 passes, 0 fails, 0 exceptions
[ View ]
#43 fieldsets-541568_v9.patch6.86 KBbowersox
Passed: 14719 passes, 0 fails, 0 exceptions
[ View ]
#40 fieldsets-541568_v8.patch6.25 KBmgifford
Failed: Failed to apply patch.
[ View ]
#26 fieldsets-541568_v7.patch6.89 KBbowersox
Failed: 13542 passes, 8 fails, 0 exceptions
[ View ]
#25 screenshot-114.png146.83 KBmgifford
#24 fieldsets-541568_v5.patch6.73 KBbowersox
Failed: Invalid PHP syntax in modules/system/system.css.
[ View ]
#19 fieldsets-541568_v4.patch5.82 KBbowersox
Failed: Failed to apply patch.
[ View ]
#15 fieldsets-541568_v2.patch5.07 KBbowersox
Failed: Failed to apply patch.
[ View ]
#13 collapsed fieldset57.82 KBmgifford
#13 expanded fieldset47.73 KBmgifford
#8 fieldsets-541568.patch2.26 KBbowersox
Failed: Failed to apply patch.
[ View ]

Comments

bowersox’s picture

Title:Link to expand / collapse fieldsets has porrly accessible link text» Link to expand / collapse fieldsets has poorly accessible link text

+1 for this as an important accessibility issue

Here is the fieldset at /admin/structure/taxonomy/1 if Javascript is enabled (which makes the fieldset collapsible):

<fieldset id="edit-settings" class="collapsible"><legend class="collapse-processed"><a href="#">Settings</a><span class="summary"/></legend>

"Settings" is not accessible link text because it does not tell screenreader users that by clicking that link there will be a bunch of new form elements that will magically appear. An accessibility review we conducted recommended that the link text become something like "Show Settings" instead. Here's one option if we want to hide that from sighted users (since they see visual cues such as a triangle and a border):

<fieldset id="edit-settings" class="collapsible"><legend class="collapse-processed"><a href="#"><span class="element-invisible">Show</span> Settings</a><span class="summary"/></legend>
Everett Zufelt’s picture

Collapsed and expanded fieldsets do have an icon indicating the expanded / collapsed status. The icon is added using CSS (see below). It would be an easy fix, from an accessibility perspective, if this icon were to be an actual image element with appropriate alt text.

Excerpt from /themes/garland/style.css

html.js fieldset.collapsible legend span.summary {
  color: #898989;
}

html.js fieldset.collapsed legend a {
  background: url(images/menu-collapsed.gif) no-repeat 0% 50%; /* LTR */
}

bowersox’s picture

@Everett

Using an actual img element and alt attribute would be good for accessibility if we can make that work. It may be tricky because Javascript is setting the fieldset.collapsed class, so script would need to add the real img elements too. Alternatively, the img elements could be placed on the page from the start as display:none and then activated by javascript. Did you have a similar strategy or an easier way?

Everett Zufelt’s picture

@brandonojc

I think that having one img element with javascript switching the alt attribute and image is the best method. I am also happy with having both and using display: none on the img not visible. The earlier suggestion of using hidden link text would also work, but is less ideal, lets use element-invisible as seldom as we can and focus on making the markup of core more semantically correct where we can to improve accessibility. I.e. there is an image that represents something, so lets use an img element with an alt attribute describing what is being represented.

Everett Zufelt’s picture

The following two classes are defined in modules/system/system.css. They set the expand / collapse image for fieldsets. The file misc/collapse.js adds an expand/collapse anchor to the fieldset just after the legend and the icon is shown as a background image for the anchor.

My recommendation is that an img element be added to the link text and that the icon be displayed in the img element. The same JS function that switches the class for expanded / collapsed now can switch the class and alt attribute of the img element.

html.js fieldset.collapsible legend a {
  display: inline;
  padding-left: 15px; /* LTR */
  background: url(../../misc/menu-expanded.png) 5px 75% no-repeat; /* LTR */
}
html.js fieldset.collapsed legend a {
  background-image: url(../../misc/menu-collapsed.png); /* LTR */
  background-position: 5px 50%; /* LTR */
}
bowersox’s picture

@Everett

I agree with this approach. There is an image on the screen and we should simply have a real img element with good alt text. Are you ready to code a patch or do you want to collaborate on this one?

Everett Zufelt’s picture

@brandon

Might be easier if someone else works on this patch, since there is a lot of visual checking to be done, and I am working on form labeling / menu_local_tasks

bowersox’s picture

StatusFileSize
new2.26 KB
Failed: Failed to apply patch.
[ View ]

Please review this patch. The patch has 2 significant problems listed below that I'd like advice on how to resolve. I believe we need a broader discussion about our approach.

  1. Because we insert the img using Javascript (misc/collapse.js), how should we allow themers to override it? Currently themers override the CSS (as above in #5).
  2. Because we insert an alt tag which the Javascript will toggle from "Show" to "Hide", how should we make this translatable? The image alt tag precedes the other link text, so for RTL languages ideally we could allow the entire phrases, such as "Show Advanced options", to be translated.

Also, this patch does not yet include the removal of all the expand/collapse images from CSS, so sighted users of this patch will notice 2 triangles. In addition, the path to the img src is relative so the image won't work from all pages yet.

I agree with the comments above that a real img tag is more semantically correct, but because of these challenges I am re-considering whether hidden text may be easier to accomplish. Any advice would be appreciated.

Everett Zufelt’s picture

Status:Active» Needs review

@Brandon

For JS translation and JS theming see drupal.t and drupal.theme in misc/drupal.js

mgifford’s picture

Issue tags:+i18n

Thanks Brandon. Not that I'm in any way a javascript guy, but isn't there a way to pull the language right out of:

As an element of the header it should be readily available to the javascript code.

That's only going to go so far though as you'd have to put a translation file......

Hmm.. this must be something that the i18n folks have struggled with and have a solution for.

Mike

mgifford’s picture

Ok, not sure where the js.api.drupal.org is, but since I can't seem to find it or find good docs outside of the code, thought I'd bring in the code -->> misc/drupal.js:

/**
* Translate strings to the page language or a given language.
*
* See the documentation of the server-side t() function for further details.
*
* @param str
*   A string containing the English string to translate.
* @param args
*   An object of replacements pairs to make after translation. Incidences
*   of any key in this array are replaced with the corresponding value.
*   Based on the first character of the key, the value is escaped and/or themed:
*    - !variable: inserted as is
*    - @variable: escape plain text to HTML (Drupal.checkPlain)
*    - %variable: escape text and theme as a placeholder for user-submitted
*      content (checkPlain + Drupal.theme('placeholder'))
* @return
*   The translated string.
*/
Drupal.t = function (str, args) {
  // Fetch the localized version of the string.
  if (Drupal.locale.strings && Drupal.locale.strings[str]) {
    str = Drupal.locale.strings[str];
  }

  if (args) {
    // Transform arguments before inserting them.
    for (var key in args) {
      switch (key.charAt(0)) {
        // Escaped only.
        case '@':
          args[key] = Drupal.checkPlain(args[key]);
        break;
        // Pass-through.
        case '!':
          break;
        // Escaped and placeholder.
        case '%':
        default:
          args[key] = Drupal.theme('placeholder', args[key]);
          break;
      }
      str = str.replace(key, args[key]);
    }
  }
  return str;
};

So I think that we're looking at the following to do the language switching:

$(this).empty().append($('<a href="#"><img src="misc/menu-collapsed.png" alt="' + Drupal.t('Show') + '"></img> ' + text + '</a>').click(function () {

It's also good to have an example of where to look to validate if the test is working. Don't know exactly where to look in D7.

bowersox’s picture

@mgifford

In D7 the first place you can find a collapsed fieldset is on the install screens where you enter database settings. There is a fieldset for Advanced options. To test that you'll need to move your settings.php file out of the way, copy default.settings.php to settings.php, and browse to /install.php.

Thanks for the translation example! This will really help.

mgifford’s picture

StatusFileSize
new47.73 KB
new57.82 KB

Thanks for a good place to test this. So the HTML I get is:

<fieldset class="collapsible collapsed" id="edit-advanced-options"><legend>Advanced options</legend><div class="fieldset-description">These options are only necessary for some sites. If you're not sure what you should enter here, leave the default settings or check with your hosting provider.</div><div class="form-item form-type-textfield form-item-host">

I don't know if I'm looking at the source if I should expect to see the Show in it or not. Firefox isn't showing it.

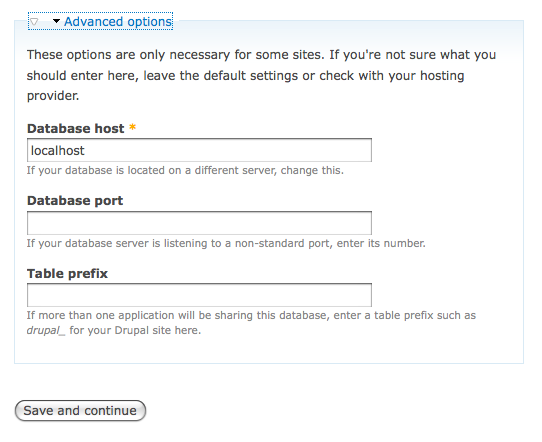

I've attached two screenshots. I think there may be an extra arrow in the display.

bowersox’s picture

@mgifford

Firefox apparently does not show the HTML added by Javascript in the 'View Source' window. But if you have the Firebug add-on you can view the full, live HTML source. For me with Firefox 3.5.2 and Firebug the HTML is:

<fieldset id="edit-advanced-options" class="collapsible"><legend class="collapse-processed"><a href="#"><img alt="Hide" src="misc/menu-expanded.png"/> Advanced options</a><span class="summary"/></legend><div class="fieldset-wrapper" style="display: block;"><div class="fieldset-description">These options are only necessary for some sites. If you're not sure what you should enter here, leave the default settings or check with your hosting provider.</div><div class="form-item form-type-textfield form-item-host">

Good point about the double arrows. That is a known problem with this patch since I haven't yet removed the CSS-background arrows. I'll work on addressing that in an updated patch soon. Thanks for the feedback!

bowersox’s picture

StatusFileSize
new5.07 KB
Failed: Failed to apply patch.
[ View ]

Please review this updated patch.

To test: Apply the patch, then move your settings.php file out of the way, copy default.settings.php to settings.php, and browse to /install.php. Pick a profile and language. The on the 'Database configuration' page look for the Advanced options fieldset near the bottom.

This patch now includes the following:

  • i18n-friendly use of the Drupal.t() function
  • removal of obsolete CSS for fieldset legend backgrounds (fixing the problem of seeing two triangles)
  • use of Drupal.settings to allow themers to easily provide new images for collapsed and expanded icons

I would especially appreciate feedback on the use of Drupal.settings. Let me know if you agree with the approach and how we can make this better to improve D7.

mgifford’s picture

+1

Patch applies nicely on a fresh version of the CVS. I've got it running here - http://drupal7.dev.openconcept.ca

this is one of the critical items defined here so we need to get it RTBC - http://openconcept.ca/blog/everett/final_stretch_help_needed_for_drupal_...

I'm not a JS person, but this looks fine with me:

+ Drupal.settings.img_src_collapsed = 'misc/menu-collapsed.png';
+ Drupal.settings.img_src_expanded = 'misc/menu-expanded.png';
+ var img_src_collapsed = Drupal.settings.img_src_collapsed;
+ var img_src_expanded = Drupal.settings.img_src_expanded;
+ if (typeof(Drupal.settings.base_path) !== 'undefined') {
+ img_src_collapsed = Drupal.settings.base_path + img_src_collapsed;
+ img_src_expanded = Drupal.settings.base_path + img_src_expanded;
+ }

http://api.drupal.org/api/function/drupal_add_js/5

"Add settings ('setting'): Adds a setting to Drupal's global storage of JavaScript settings. Per-page settings are required by some modules to function properly. The settings will be accessible at Drupal.settings."

Everett Zufelt’s picture

Status:Needs review» Needs work

@brandon @mgifford

This applies nicely for me to, but as a screen-reader user I notice no functional difference, there is still no non-visual representation of the expand / collapsed state of the fieldset. Tested with JAWS10.0.1154 and FF3.5

annmcmeekin’s picture

It would be great if we can get this to a point where it works, because knowing the state of the fieldsets is really important.

bowersox’s picture

Status:Needs work» Needs review
StatusFileSize
new5.82 KB
Failed: Failed to apply patch.
[ View ]

Please review the updated patch. It should fix the JAWS accessibility. It also provides CSS so this feature leaves the visual look in Seven, Garland/Minnelli and Stark unchanged.

I tested these scenarios:

  • Common browsers including Firefox 3.5, Safari 4, and Win IE 7, including with JAWS 10.
  • Tested with Javascript disabled to see that the non-collapsible fieldsets are unchanged.

Question: How do we use Drupal.settings for a theme, such as Garland, to override the default expand/collapse images? I tried this in garland/template.php but it did not work:

/**
* Override of theme_fieldset().
*
* For collapsible fieldsets, override Drupal.settings with custom images.
*/
function garland_fieldset($element) {
  if (!empty($element['#collapsible'])) {
    drupal_add_js(array('collapse' => array(
      'img_src_collapsed' => 'images/menu-collapsed.gif',
      'img_src_expanded' => 'images/menu-expanded.gif',
    )), 'setting');
  }
  return theme_fieldset($element);
}

The other problem I'm aware of is that Safari 4 causes the link to move to the right when the fieldset is opened in Seven. It appears to be the way Safari handles the position:absolute on the legend and how that interacts with the fieldset padding-left. Any advice would be appreciated.

bowersox’s picture

To Test: If you don't want to re-install drupal with the instructions in #15, here are a few easier places to try a fieldset:

  • Admin Appearance /admin/appearance
  • Search /search
  • Block editing /admin/structure/block/configure/system/navigation
Everett Zufelt’s picture

Tested on clean head with this patch installed. JAWS 10.0.1154 and FF 3.5

I am still not getting any indication that a fieldset is expanded or collapsed.Tested on clean head with this patch installed. JAWS 10.0.1154 and FF 3.5

I am still not getting any indication that a fieldset is expanded or collapsed.

Everett Zufelt’s picture

This is now working perfectly well for me. I had to clear the theme cache to notice the changes.

JAWS10.0.1154 / FF3.5 is reading the link to expand / collapse fieldsets correctly:

http://berry.d7.zufelt.ca/

"Link Show link advanced search"

Not sure why link is being read twice, but it is not that big of a deal. Jaws is also reading the line twice, once as a link, once as not a link, but this is a JAWS issue.

NVDA 0.6p3.2 / FF 3.5 is not reading the line or link twice, and works wonderfully well.

mgifford’s picture

+1

I think this is ready to be committed!

I now tested this patch in a fresh install with FF, Opera, Safari & Chrome for the Mac.

All work as expected! There will be no changes for visual users, while AT users will be able to use collapsed fieldsets for the first time with Drupal!

Suddenly blind users will be able to use the advanced search feature on Drupal!

bowersox’s picture

StatusFileSize
new6.73 KB
Failed: Invalid PHP syntax in modules/system/system.css.
[ View ]

Please review this update. It uses Drupal.theme to allow Garland to provide its own image. If people like this approach, we are close to finished. The only remaining issue I'm aware of is the slight pixel jump using Safari in Seven.

mgifford’s picture

StatusFileSize
new146.83 KB

I applied the latest patch. Nice to have the flexibility for Garland.

I've attached a screen-shot for the pixel jump in Firefox, Safari, Chrome & Opera for the Mac. It's there if you're looking for it for sure. However it just further enhances the expanded text as far as I'm concerned.

It would be more consistent (with Garland) if it didn't. Certainly my testing of the new code for the search field behaved without the image moving in any.

Not sure that this is a problem, but willing to pass it to the Seven team.

bowersox’s picture

StatusFileSize
new6.89 KB
Failed: 13542 passes, 8 fails, 0 exceptions
[ View ]

Please review this patch. It may be ready for RTBC as it fixes all identified problems.

How to test?

  • Apply to a fresh D7 HEAD.
  • Go to /admin/appearance and click Save configuration (necessary even if you don't change theme selection).
  • Test at any page with collapsible fieldsets: /search, /admin/appearance, install.php, or /admin/structure/block/configure/system/navigation.
  • Test with Javascript disabled to confirm visual change is not changed.
  • Test with JAWS to confirm it is speaking the "Show" and "Hide" alt text.
  • Test all 4 core themes.
  • Test different browsers (I have confirmed no visual change in Firefox 3.5, Safari 4, IE 7).

This patch builds on the prior patch by allowing either new Drupal.theme function to be overriden. It also fixes the jump illustrated in the #25 screenshot which was actually an existing problem in Seven support for Safari.

mgifford’s picture

Looking better all the time Brandon.

I applied it to D7 Head. Added the themes & saved the configs. Then cleared the cache as well.

I tested /search, /admin/appearance & /admin/structure/block/ in FF. All worked fine.

I tested these without Javascript and the boxes remained expanded but looked proper.

I tested in all four themes and was testing in FF & Safari for the Mac.

Great job in fixing the issue with Seven as well.

++1

Everett Zufelt’s picture

Status:Needs review» Needs work

@brandon @mgifford

I applied this to a clean head at http://berry.d7.zufelt.ca/search and cleared all caches.

JAWS is not recognizing the link or the extra text.

bowersox’s picture

@Everett

HEAD is broken--collapsible fieldsets do not work for me right now. Something broke with the set of commits in the last 12 hours. We need to wait to get this patch reviewed and RTBC'd until that is fixed.

bowersox’s picture

Update:

Here's what is broken in HEAD: #444344: jQuery .once() method for adding behaviors once.

If you add the new file jquery.once.js into your site manually you can test this expand/collapse patch. There is now a patch in that issue to do so.

I think once HEAD is fixed we can re-test and get this back to RTBC.

Everett Zufelt’s picture

@Brandon

Following your instructions in #30 the patch applies correctly and works well with NVDA / JAWS.

bowersox’s picture

Update: webchick just fixed HEAD, so we can now confirm that this patch works cleanly. RTBC anyone?

bowersox’s picture

Status:Needs work» Needs review
Everett Zufelt’s picture

Status:Needs review» Needs work

Downloaded fresh head from cvs and applied the most recent patch before installing.

On the database configuration page the Advanced link was read by JAWS as "Link #". The patch does seem to be working correctly everywhere else.

JAWS 10.0.1154 / FF 3.5

Owen Barton’s picture

I looked at the advanced fieldset on the installation page, and at least with firebug I could not detect any difference in the HTML source or general behaviour from a fieldset elsewhere (e.g. on a taxonomy term edit page). Could this perhaps be a caching issue?

In terms of the code, I was not sure about the following:

$('> legend > a > img', this.parentNode).replaceWith(Drupal.theme('collapseImage', true));

Could this line and associated 2 functions (collapseImage and collapseImageSrc) not be replaced with something like:

$('> legend > a > img', this.parentNode).attr('alt', Drupal.t('Show'));
bowersox’s picture

Status:Needs work» Needs review

@Owen

Thanks for the feedback. I'm glad to hear it works for you.

Regarding your code suggestion, we need to set both the ALT and the SRC attributes, so the reason I introduced Drupal.theme() is so that different themes can override the HTML to give their own image SRC. In fact here's how Garland does that with its collapse.js file in this patch:

Drupal.theme.prototype.collapseImageSrc = function(collapsed) {
  return Drupal.settings.basePath + 'themes/garland/images/' + ((collapsed) ? 'menu-collapsed.gif' : 'menu-expanded.gif');
}

@Everett

I set this back to 'needs review' because it's sounding more and more likely that JAWS is reading these correctly as "Show XYZ" and there may be caching that stopped it from working for you on the install page. I look forward to getting in touch directly tomorrow to troubleshoot that more.

Everett Zufelt’s picture

Status:Needs review» Reviewed & tested by the community

I applied the patch in comment #27 again today to a clean db / install of head. Everything seems to be working well now with JAWS 10.0.1154 / NVDA 0.6p3.2 and FF 3.5. Not sure why this wasn't working yesterday.

I believe that this is ready to be RTBC.

Cliff’s picture

Subscribe. Related to http://drupal.org/node/467296 ?

Status:Reviewed & tested by the community» Needs work

The last submitted patch failed testing.

mgifford’s picture

Status:Needs work» Reviewed & tested by the community
StatusFileSize
new6.25 KB
Failed: Failed to apply patch.
[ View ]

not sure why this broke. I just cleaned up the fuzz and repatched it. Shouldn't be any different than the previously submitted RTBC though so I'm setting it back there.

bowersox’s picture

@mgifford, Thanks for catching that!

Status:Reviewed & tested by the community» Needs work

The last submitted patch failed testing.

bowersox’s picture

Status:Needs work» Reviewed & tested by the community
StatusFileSize
new6.86 KB
Passed: 14719 passes, 0 fails, 0 exceptions
[ View ]

Re-rolled the patch. The only difference from prior versions is the fuzz so I'm setting back to RTBC.

FYI, this re-roll does include the new file themes/garland/collapse.js again. It was inadvertently left out of v8 but was present in v7. Rolling a patch to add a new file requires use of the special instructions here: http://drupal.org/patch/create#new

I think this will make a big improvement for accessibility. If there's anything else I can do to make it better, let me know.

mgifford’s picture

This was first RTBC now almost two months ago. - Bump!

webchick’s picture

Status:Reviewed & tested by the community» Needs review
Issue tags:+needs JavaScript review

@mgifford and others: Pursuant to the Drupal 7 development schedule, patches around API clean-ups and feature exceptions were given priority during the period from Drupalcon to Oct. 15 (later extended to Oct. 17). Over the next month (from now until Dec. 1) is where we focus on accessibility, usability, and performance. Hence why some of these have been sitting in the queue for awhile.

I'd like to get some of our usual front-end patch reviewers (sun, Rob Loach, quicksketch, kkaefer, etc.) to look at this patch. It seems like it's doing some very weird things, but I don't have enough experience to make a call.

a) I've never seen a selector before like $('> legend > a > img', fieldset)
b) I'm not sure why we'd need both a theme.collapseImage and theme.collapseImageSrc. We don't have both theme_image() and theme_image_src(), for example.
c) The docs of both need to be adjusted per coding standards.

bowersox’s picture

@webchick: Yes, I'd love to get some feedback from the usual front-end patch reviewers. Here's a few brief explanations:

a) To the best of my knowledge, that selector is valid, but if we have a more typical way of doing it I'll gladly change and re-roll.

b) The idea of breaking theme.collapseImageSrc off on its own was to make the shortest and easiest way for any theme to override the collapse/expand image with just 3 clean lines of code:

+++ themes/garland/collapse.js 17 Oct 2009 03:59:58 -0000
@@ -0,0 +1,11 @@
+Drupal.theme.prototype.collapseImageSrc = function(collapsed) {
+  return Drupal.settings.basePath + 'themes/garland/images/' + ((collapsed) ? 'menu-collapsed.gif' : 'menu-expanded.gif');
+}

Lots of themes would provide their own image but wouldn't want to change the other functionality of theme.collapseImage. At least that was the thinking.

c) I believe the comments should be more like this, but please correct if I'm wrong:

/**
* Override the default collapse and expand fieldset images.
*
* @param collapsed
*   True if collapsed, false if expanded.
* @return
*   The src attribute for the image.
*/
webchick’s picture

Right, I understand the logic of having the theme function, but I think I'd rather not have a specific one for src and just adjust the src in the themeImage, because it's more consistent with what Drupal core does.

And yep, the doc formatting there looks good to me.

bowersox’s picture

@webchick: Cool. I'll wait for feedback from front-end reviewers, but I'll gladly re-roll with the fixed comments and combined theme functions whenever we're ready.

bowersox’s picture

StatusFileSize
new5.92 KB
Passed: 14684 passes, 0 fails, 0 exceptions
[ View ]

Please review this updated patch. Here are the changes:

  • Combined theme.collapseImageSrc and theme.collapseImage as @webchick suggested in #46(b).
  • Changed Garland collapse.js to override theme.collapseImage instead of theme.collapseImageSrc.
  • Formatted comments properly as suggested in #46(c).

To test this patch, you need to clear your cache by visiting /admin/appearance and saving.

The only remaining issue is getting some front-end patch reviewers to check this out and give advice on @webchick's question in #46(a). Yay!

mgifford’s picture

Applies nicely & works well. Just waiting on #46(a) to be RTBC!

sun’s picture

+++ misc/collapse.js 3 Nov 2009 15:53:14 -0000
@@ -12,6 +12,7 @@ Drupal.toggleFieldset = function (fields
       .trigger({ type: 'collapsed', value: false });
+    $('> legend > a > img', fieldset).replaceWith(Drupal.theme('collapseImage', false));
@@ -32,6 +33,7 @@ Drupal.toggleFieldset = function (fields
       $(this.parentNode).addClass('collapsed');
+      $('> legend > a > img', this.parentNode).replaceWith(Drupal.theme('collapseImage', true));

Instead of starting with a new selector from scratch, you can just continue the previous stack:

.find('> legend ...').replaceWith(...);
+++ misc/collapse.js 3 Nov 2009 15:53:14 -0000
@@ -75,7 +77,7 @@ Drupal.behaviors.collapse = {
-        $(this).empty().append($('<a href="#">' + text + '</a>').click(function () {
+        $(this).empty().append($('<a href="#">' + Drupal.theme('collapseImage', true) + ' <span class="collapser">' + text + '</span>' + '</a>').click(function () {

I don't like the name "collapser", because it has no meaning. The name should also be in the namespace of the behavior.

.collapse-title

or

.collapse-legend

or something like that would be more appropriate.

+++ misc/collapse.js 3 Nov 2009 15:53:14 -0000
@@ -93,4 +95,19 @@ Drupal.behaviors.collapse = {
+Drupal.theme.prototype.collapseImage = function (collapsed) {
+  var src = Drupal.settings.basePath + ((collapsed) ? 'misc/menu-collapsed.png' : 'misc/menu-expanded.png');
+  var alt = (collapsed) ? Drupal.t('Show') : Drupal.t('Hide');
+  return '<img src="' + src + '" alt="' + alt + '" />';
+}

Images have a performance impact.

Instead of (re-)injecting images, you want to inject a SPAN containing the text.

Then, you make the text invisible by doing the following in the CSS:

display: inline-block;
width: 10px;
height: 10px;
text-indent: -999em;
background: transparent url(/misc/menu-collapsed.png) no-repeat;

Additionally, you create another style that changes the background image URL to the other image when the CSS class .collapsed is removed from the fieldset.

+++ modules/system/system.css 3 Nov 2009 15:53:14 -0000
@@ -326,10 +326,18 @@ html.js fieldset.collapsed legend {
+html.js fieldset.collapsible legend a span.collapser {
+  text-decoration: underline;
}

We should not underline this by default.

Seven theme can do if required, but most other themes don't want that.

+++ themes/garland/garland.info 3 Nov 2009 15:53:14 -0000
@@ -7,3 +7,4 @@ core = 7.x
+scripts[] = collapse.js

This is not required and needs to be removed.

+++ themes/seven/style.css 3 Nov 2009 15:53:14 -0000
@@ -460,10 +460,29 @@ html.js fieldset.collapsed legend,
+html.js fieldset.collapsible legend a span.collapser {
+  display: inline;
+  text-decoration: none;
+}

These are already defined in system.css.

+++ themes/seven/style.css 3 Nov 2009 15:53:14 -0000
@@ -460,10 +460,29 @@ html.js fieldset.collapsed legend,
+html.js fieldset.collapsible legend a:hover span.collapser {
+  text-decoration: underline;
+}

We should use CSS2 selectors here, because supporting IE6 is really nonsense. So:

html.js fieldset.collapsible legend span.collapser:hover
+++ themes/seven/style.css 3 Nov 2009 15:53:14 -0000
@@ -460,10 +460,29 @@ html.js fieldset.collapsed legend,
+html.js fieldset.collapsible > * {
+  padding-left: 13px;
+}

This looks a bit wonky, because it presumes a very special fieldset markup in the output.

I'm on crack. Are you, too?

bowersox’s picture

@sun:

Instead of (re-)injecting images, you want to inject a SPAN containing the text.

Because the triangle image has meaning to sighted users, for accessibility and semantic accuracy we felt it should be an actual IMG instead of a CSS background. See our discussion in comments #2-5. Are you willing to go with that?

Lots of your smaller suggestions make sense and I can re-roll to address them. This issue of IMG versus CSS might take more discussion but whatever we decide on I'm eager to update and move this forward. Thanks for the feedback and support!

sun’s picture

I understand that, but injecting countless of single images has a performance impact on page loading. Additionally, an IMG is very hard to style differently in your theme. You need to override a JavaScript theming function to just change markup to something that can be styled differently.

bowersox’s picture

StatusFileSize
new2.98 KB
Passed: 14690 passes, 0 fails, 0 exceptions
[ View ]

@sun: Here's an alternative patch with the approach you suggested. Do you have any suggestions about naming and code style?

This patch is all-new code unrelated to the previous patches because it takes a different approach: it simply uses hidden span.element-invisible text to put the word "Show" or "Hide" in the links for collapsible fieldsets.

I'd appreciate more testing and input from other accessibility advocates to decide if this alternative approach is acceptable and accessible. I tested in JAWS 10 and confirmed that the screenreader speaks, "Show Advanced search link" and "Hide Advanced search link" as appropriate.

bowersox’s picture

A few notable aspects of this patch:

+++ misc/collapse.js    5 Nov 2009 02:28:30 -0000
@@ -31,7 +32,8 @@ Drupal.toggleFieldset = function (fields
   var text = this.innerHTML;
-    $(this).empty().append($('<a href="#">' + text + '</a>').click(function () {
+  $(this).empty().append($('<a href="#"> ' + text + '</a>')
+    .click(function () {

I tried to clean up indenting. I couldn't tell why the $(this) line was originally indented deeper, for example. Point me in the right direction if anything looks off.

Also, notice the added space immediately within the a tag: '<a href="#"> '. That space is needed so that words don't run together (e.g., "ShowAdvanced search") for screenreaders and non-CSS users.

+++ misc/collapse.js    5 Nov 2009 02:28:30 -0000
@@ -83,12 +86,16 @@ Drupal.behaviors.collapse = {
+  .prepend($('<span class="element-invisible"></span>')
+    .append(fieldset.hasClass('collapsed') ? Drupal.t('Show') : Drupal.t('Hide'))
+  )

We prepend this span inside the legend a element. If you think this span deserves a different class, please advise.

+++ modules/system/system.css   5 Nov 2009 02:28:30 -0000
@@ -322,7 +322,7 @@ html.js fieldset.collapsed {
html.js fieldset.collapsed * {
   display: none;
}
-html.js fieldset.collapsed legend {
+html.js fieldset.collapsed legend, html.js fieldset.collapsed legend a span.element-invisible {
   display: block;

This is the only CSS change involved. We need to make sure the new span does not end up with display:none. (See http://drupal.org/node/472572 for details).

Also, please advise if you think I should sneak in comments any place this deserves explanation.

mgifford’s picture

This worked fine in all Mac browsers I tested it with (Firefox, Safari & Chrome) with the exception of Opera. In Opera it worked, but looked funny because there was too much spacing between the lines. This might not be something that is easily resolvable.

I did test this also for keyboard-only browsing and it worked fine.

Interesting approach to keep the css images, but just ensure that we've added in the text so it's clear what state the fieldset is in. I can't see an accessibility issue with this.

@sun thanks again for your detailed review above!

sun’s picture

+++ misc/collapse.js 5 Nov 2009 02:28:30 -0000
@@ -31,7 +32,8 @@ Drupal.toggleFieldset = function (fields
+        .find('> legend > a > span.element-invisible').empty().append(Drupal.t('Show'));
@@ -75,7 +77,8 @@ Drupal.behaviors.collapse = {
+      $(this).empty().append($('<a href="#"> ' + text + '</a>')

I'm not particular happy with the leading space in here. Can't we append after the injected "Show/Hide " string? i.e. directly + ' '.

+++ misc/collapse.js 5 Nov 2009 02:28:30 -0000
@@ -83,12 +86,16 @@ Drupal.behaviors.collapse = {
+      .after(
+        $('<div class="fieldset-wrapper"></div>')
+          .append(fieldset.children(':not(legend):not(.action)'))
+      );

NIH: I'm not sure who invented this, but it's a royal pain for themers. I'll create a separate issue to move this into the static markup.

+++ modules/system/system.css 5 Nov 2009 02:28:30 -0000
@@ -322,7 +322,7 @@ html.js fieldset.collapsed {
-html.js fieldset.collapsed legend {
+html.js fieldset.collapsed legend, html.js fieldset.collapsed legend a span.element-invisible {
   display: block;
   overflow: hidden;
}

That, I don't understand.

Why do we need to apply styles to an element that's not visible at all? Ah, I see it now. Because above mentioned wrapper is injected via JS, so there is no way to hide the fieldset contents when the fieldset is collapsed, and that's why it's using a * selector right above these styles to hide everything in the fieldset, and after doing so, it unhides the legend. Clusterfuck. meh, people like to introduce awkward code in core.

So, yeah, we need to do that here, because the invisible SPAN would be hidden, not invisible otherwise.

I'm on crack. Are you, too?

bowersox’s picture

StatusFileSize
new3 KB
Passed: 14693 passes, 0 fails, 0 exceptions
[ View ]

Please review this new patch. I think it's ready for final feedback and RTBC.

This is the same as the patch in #54 but it made one change to take out the space as @sun suggested and put in an additional .after(' ') call to add the space after the hidden text. Functionality should be unchanged but the code is more readable.

@sun, about your other comments:

  • I totally agree about the NIH comment. I am just re-indenting some of that code but I support your idea of opening an issue for making the fieldset-wrapper static.
  • And you're correct about the CSS change. We need to make sure the * display:none does not apply.

Thanks for all the feedback and guidance!

sun’s picture

+++ misc/collapse.js 7 Nov 2009 01:33:54 -0000
@@ -75,7 +77,8 @@ Drupal.behaviors.collapse = {
+      $(this).empty().append($('<a href="#">' + text + '</a>')
+        .click(function () {
@@ -83,12 +86,17 @@ Drupal.behaviors.collapse = {
-        .append(summary)
-        .after(
...
+        .prepend($('<span class="element-invisible"></span>')
...
+      .append(summary)
+      .after(

Only remaining problem: All of the methods need to be on the same indentation level.

I see that already the existing code is using some awkward indentation and parenthesis logic.

The improper indentation in this patch happened, because you tried (probably hard) to make any sense of it... but let me tell you: with jQuery's method chaining, it's very hard to achieve a good-lookin' coding style.

+++ misc/collapse.js 7 Nov 2009 01:33:54 -0000
@@ -83,12 +86,17 @@ Drupal.behaviors.collapse = {
+        .prepend($('<span class="element-invisible"></span>')
+          .append(fieldset.hasClass('collapsed') ? Drupal.t('Show') : Drupal.t('Hide'))
+          .after(' ')
+        )
+      )

This is where the indentation/parenthesis goes wrong.

On a second look, it actually seems like there's one closing parenthesis too much.

This review is powered by Dreditor.

sun’s picture

Did you test this with vertical tabs? Vertical tabs turns fieldsets into a tabset...

bowersox’s picture

@sun, this plays nice with vertical tabs. This patch (and the original collapse.js) do not act on vertical tabs. In vertical-tabs.js we find fieldset elements inside .vertical-tabs-panes and call .removeClass('collapsible collapsed') on each one. Vertical-tabs.js runs before collapse.js. Once those classes are gone, that means none of the selectors in misc/collapse.js will pick up the vertical tabs.

bowersox’s picture

StatusFileSize
new3.62 KB
Passed: 14712 passes, 0 fails, 0 exceptions
[ View ]

@sun, here is an updated patch. No changes to code or functionality, but re-indented and formatted for 80 chars. I'm curious what you think.

bowersox’s picture

[Deleted this comment and removed the jQuery coding standards conversation to its own issue: #625926: jQuery coding standards -brandonojc]

mgifford’s picture

StatusFileSize
new47.09 KB

Just wanted to toss in that Vertical tabs look fine for me. Just attached a screenshot with the latest (v3) patch applied. They looked fine with (v2) too.

Hopefully the code cleanup will be enough to get into core!

sun’s picture

+++ misc/collapse.js 7 Nov 2009 02:41:53 -0000
@@ -10,8 +10,11 @@ Drupal.toggleFieldset = function (fields
     $(fieldset)
-      .removeClass('collapsed')
-      .trigger({ type: 'collapsed', value: false });
+    .removeClass('collapsed')
+    .trigger({ type: 'collapsed', value: false })
+    .find('> legend > a > span.element-invisible')

The previous indentation was correct.

I'm on crack. Are you, too?

bowersox’s picture

StatusFileSize
new3.08 KB
Passed: 14679 passes, 0 fails, 0 exceptions
[ View ]

Please review this patch. The only changes are coding indentation, but not functionality.

I tried to make the indentation right in the places this patch touches, but some of the other indent problems and the fieldset-wrapper issue with collapse.js can be handled in a separate issue.

sun’s picture

Status:Needs review» Reviewed & tested by the community

Wonderful. Good job!

webchick’s picture

Status:Reviewed & tested by the community» Fixed

Awesome. Thanks for the great review sun, and excellent work Brandon and Mike!

Committed to HEAD. Thanks!

mgifford’s picture

That's excellent! Glad to see another issue fixed.

Status:Fixed» Closed (fixed)

Automatically closed -- issue fixed for 2 weeks with no activity.

m-patate’s picture

Category:bug» feature

Hi all,

Thanks for all your previous works.
I should have a suggestion :in collapse.js, in the Drupal.toggleFieldset function, is it possible to move the trigger for "collapsed" event after the slideUp & the slideDown animation instead of before, in order to be more coherent with the event status name ?

Lidyaamush’s picture

@Everett

for accessibility. To use an alt attribute & img can be good, but probably its a bit tricky due to Javascript is setting the fieldset, so it would be good if we can make that work. coz jvscript would need to add the real img element as well.
Alternatively, the img elements could be placed on the page from the start as display:none and then activated by javascript. Did you have a similar strategy or an easier way?

LCD Shoes

pverrier’s picture

Version:7.x-dev» 7.14
Category:feature» bug
Status:Closed (fixed)» Active
StatusFileSize
new214.76 KB

In http://drupal.org/node/983372#comment-3810044 (module Fieldset helper) was reported a bug with jQuery caused by the adding of .after(' ') in this current issue ; I met the same problem but I've not installed Fieldset helper for which this problem is reported.

There seems to be a bug in collapse.js, in certain circumstances, the .after(' ') throws an exception "Syntax error, unrecognized expression: " (+ a space).

Please see http://drupal.org/node/983372#comment-6029570 for more details ; I have this error on the edit term page, for certain vocabularies only ; it causes everything using JS (wysiwyg CKeditor and Relations fieldset) not to be well displayed.

nod_’s picture

Status:Active» Closed (fixed)

Please open a new issue with a link to this one if it's still relevant. This one has been fixed.

pverrier’s picture

OK, done here : http://drupal.org/node/1606110
Thanks
