Fixed maximum number of field values, but use «add more» similar to when cardinality «unlimited» is used

Nice idea. Moving to Drupal 8 where feature requests belong.

Actually, for the image and file field widgets this has already been implemented. Only one field is shown on the node add/edit form no matter what value is set as the maximum number of fields. So we just need the text field widget to work the same way. Or alternatively, include a widget setting for how many empty fields should be shown initially.

Attached is a fix so that limited cardinality fields behave like unlimited cardinality fields.

Take two.

The patch from #9 works for me, on Drupal 9.2.5, thanks!

+1 to having this in Core.

Having all the fields already present on the page is bad UX as many users understand the need to fill all the inputs, while the "Add more" pattern is much more user-friendly as it clearly indicates the possibilities (either remain as you are or add a new item).

patch for drupal 9.3.3

The patch from #22 applies to Drupal 9.3.x but is missing some changes that were present in the patch from #9. Adding an updated patch that works with 9.3.x and has all the changes from #9.

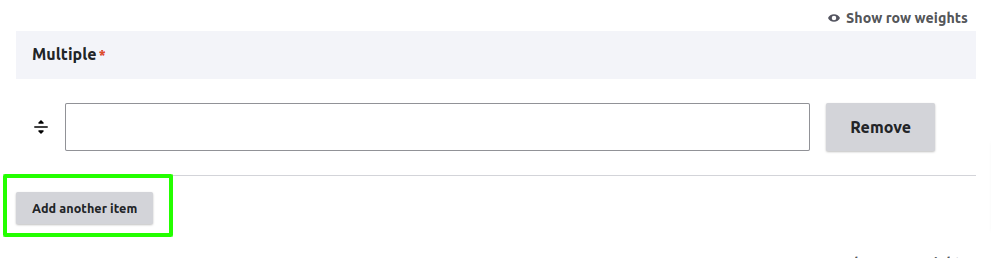

This patch adds the same button the unlimited cardinality fields have, which rebuilds the form element using AJAX.
A different alternative, using clientside JS to hide/show one new empty element at a time, is implemented in this contrib module: https://www.drupal.org/project/sam

The patch in #23 works for me on 9.5. :-)

Seems to me like there might be a lot of crossover between this and #2980806: Fields with unlimited cardinality show 1 extra input field

Maybe both should be triaged into a _Optimising add more button behavior_ issue

Rerolled the patch for Drupal 10.2.0.

Moving to PNMI if anyone can confirm #35 is a duplicate, then this can be closed.

If not a duplicate it should move to NW for test coverage and issue summary update.

This is still missing "Add More" button.

Also, not a duplicate of related issue.

Here a patch for D10.2.5 with a fix for "Warning: Undefined array key "#delta" in Drupal\Core\Field\WidgetBase::addMoreAjax() (regel 340 van /var/www/html/core/lib/Drupal/Core/Field/WidgetBase.php)"

Updated the MR, added a widget option to opt-in

I have added the tests. Ready for review

Issue summary still incomplete

Have not reviewed

Updated the IS, Thanks

Gave this a manual test and it looks good. Updated one of the screenshots in the IS which was taken using Gin rather than Claro.

I think these two tags can now be removed too, I reviewed the IS and made some minor tweaks. This would be good to include as a highlight in whatever minor version it makes it into :)

This feature would be beneficial as currently, we are using the contributed modules like
https://www.drupal.org/project/sam or https://www.drupal.org/project/field_widget_add_more to achieve the same.

I am attaching the before and after screenshots of the manual review on the local Drupal 11 instance.

However, I have a few points:

1. Should not the "Show add more button" be enabled by default in the settings rather than explicitly enabling it?
2. Now because the button is introduced to add the items the blank field should not be displayed by default without clicking the "Add another item" button. This blank appears on the edit node and not while adding. Try saving with say 2 values filled and save the node and then on the edit page you will see one more field displayed without clicking the "Add another item" button.



3. On the "Manage form display" page in the widget settings the checkbox label is "Show add more button" but the label of the button is not "Add more" it is "Add another item", which might be confusing to some users.

Thanks!

@prashant.c thanks for the review, but note there are already screenshots provided there is no need to add more.

Should not the "Show add more button" be enabled by default in the settings rather than explicitly enabling it?

I can see a case for both, as there are definitely situations where you might want the widgets to show. Don't feel strongly either way.

On the "Manage form display" page in the widget settings the checkbox label is "Show add more button" but the label of the button is not "Add more" it is "Add another item", which might be confusing to some users.

I agree the wording could be more clear, but I don't think that saying "Show 'Add another item' button" is the solution because that still isn't that clear. "Simple Add More" module does the opposite of what's in place here: it makes the behaviour the default but offers a setting to show all elements with the wording:

Skip "Simple Add More" simplification (i.e. show all elements, even if empty).

So I think we can also describe better what the setting does, but I'm struggling with something that is both clear and concise: "Show button to add more values instead of maximum empty fields" (too long) / "Show button to add more values" (short but not as obvious) / "Show maximum allowed values even if empty" (not that clear?)

Now because the button is introduced to add the items the blank field should not be displayed by default without clicking the "Add another item" button.

This is a separate issue - #2980806: Fields with unlimited cardinality show 1 extra input field

Thank you @pameeela for the detailed response. I was not aware of this #2980806: Fields with unlimited cardinality show 1 extra input field.

After thinking more about this I am leaning toward having it be opt out rather than opt in, because I think it would be more common to want it that not. The reasons to not want it IMO would be if the cardinality is 2 or maybe 3, then I think it probably makes sense to just show the widgets. But in those cases, I don't think it's a problem to have it enabled, and folks could opt out.

The only other consideration is this is a change from the current behaviour that might be unexpected, but I am not sure that is a good reason to have it be opt in.

If we want this by default, do we need to update the existing field config?

It may also make more sense to have "Show all items"/"Show all widgets" instead.

I don't think we would want to update existing config, changing the behaviour after the fact would be pretty confusing. I think it only should be enabled by default for new config.

So yeah in that case, I think the boolean is off by default, and we can say "Show empty widgets instead of 'Add another item' button" (or something, feedback welcome) for the label. Ideally the label will make it clear what the setting does without being overly long.

But let's wait a bit and see if there is any other input before making changes.

I do not think "Show all items"/"Show all widgets" will make sense because we are not showing all the items at one go, we are providing a way to add another/more item (which is one at a time). So in my opinion "Add another item" is concise and clear to every type of user (technical/non-technical).

Regarding the default enabling option, we may wait for feedback. :)

Will need some kind of update path for existing sites. If the setting is unchecked add_more: false should be in the config currently it's empty.

@smustgrave I have created a new MR (10400) with an update hook in file.install which updates the add_more:false in the form display config for the applicable bundles where these multivalued fields are available. This includes the changes in the previous MR.
My opinion would be to have add_more:true, to have this feature enabled by default to give a good user experience to content authors. Please review and suggest.

Please add to an existing MR vs starting a new when the current is pointing to the correct brandh

@smustgrave I have updated the existing MR and closed the other one. Please check

Hello,
Tested and verified on Drupal 11,
MR applied successfully
Attaching before and after screenshot

The issue is still not fixed for me i had to manually check the 'Show add more button' then the add more button is appearing.

@saurav-drupal-dev Yes this is how its supposed to be for now. By default "Show add more" button will not be checked and we are waiting on the community's decision(pls see #56 to #60). If it has to be enabled, I can update the config as well.

Left comments on MR.

@smustgrave, I have addressed the comments on the MR, please check.

Left a comment on the MR thanks.

The current MR is not mergeable in any other version prior to 11.3.x.

Maybe good idea to have a patch version for 11.1.x, 11.2.x.

Here is a patch that works for me for 11.2.10

The patch 1156338-add-more-ui.patch implements improved UX for limited cardinality fields. Shows only one widget initially, adds "Add another item” button and respects max cardinality. Tested and working.
