On pages with a lot of content, when scrolling the page currently the toolbar tray scrolls with the page. I think it would be better if the tray at least remains fixed at top of screen, so is still available when scrolled down.

See screenshots below for the problem.

No scroll of page.

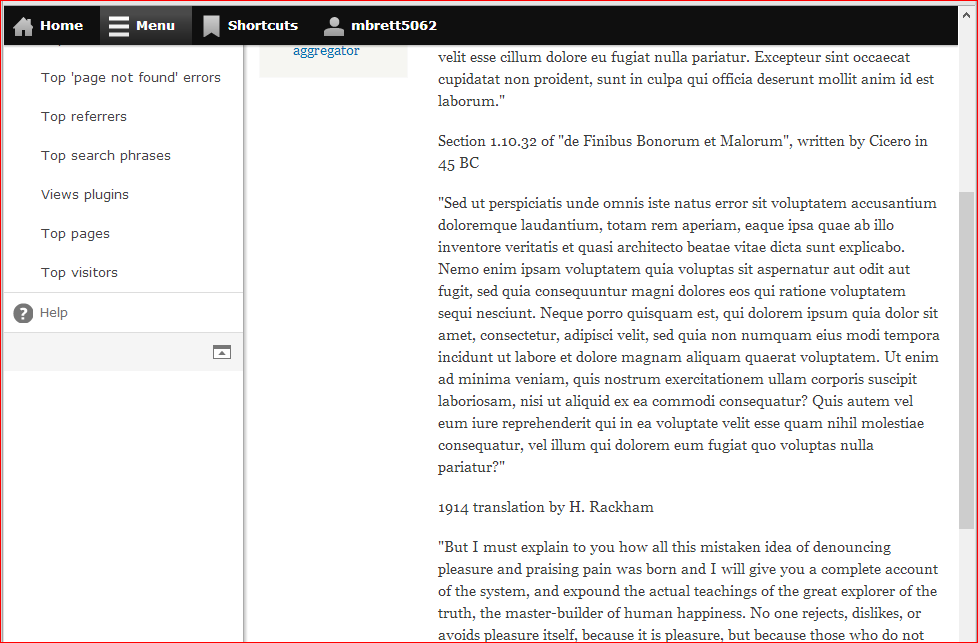

Some page scroll.

Page scrolled till toolbar tray is hidden.

NOTE: If overlay is disabled, some admin pages are very long, E.G. Extend or Permissions

Comments

benjifisher’s picture

StatusFileSize
new33.97 KB

If the toolbar itself is too tall, then there has to be a way to scroll it. In an earlier incarnation, it had its own scrollbar. See the first screen shot below, from #1137920-206: Fix toolbar on small screen sizes and redesign toolbar for desktop. I am not sure that we want to go back to that design, but if we do, then we can probably solve the problem I pointed out in #206.

I agree that the white space all the way to the bottom of the page, as in your last screen shot, is annoying. I know enough about CSS layout to know that this is not an easy thing to improve.

I do not have enough energy to open a new issue, but I just noticed that the toolbar links disappear, but the table header still moves below their ghosts, at certain widths. See the second screen shot below.


obsolete toolbar screen shot

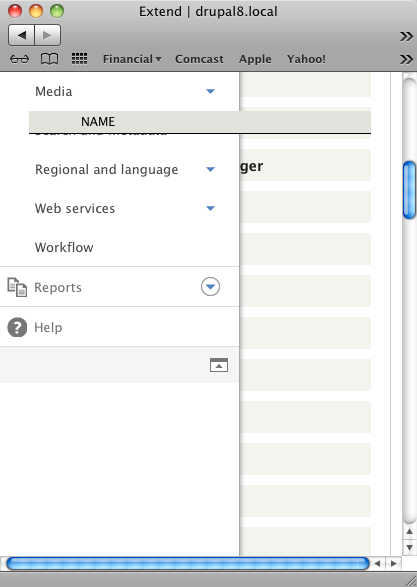

scrolling with toolbar
mbrett5062’s picture

Yep, noticed that with the table header too. Just a z-index issue. We need the tray to be above all normal page elements and only below overlays and modal dialog's. OK 'table.sticky-header' has a z-index of 500, '.toolbar .tray' has a z-index of 250. That is the problem.

I think it would be easy to get the tray 'sticky' there are a number of jquery solutions around, I am investigating now, will update issue tomorrow.

jessebeach’s picture

Thanks for looking at this mbrett5062.

mbrett5062’s picture

Yes, sorry I did not get back with a patch or anything, been real busy with another issue. First on the list of 'twig' issues.

mbrett5062’s picture

Just a quick follow up on the issue here. I am now finding this a real PITA. Been testing other issues, and keep running into the problem of the tray being off screen, having to scroll window back up to get into another part of the admin menu.

dave reid’s picture

As someone that hasn't checked out D8 for a while, this is a big UX WTF as an administrator that I easily have the menu go missing even though there's a nice empty space for it on the left side of my screen.

jessebeach’s picture

When we first put this code in place, we didn't have Modernizr and the touch / no-touch classes to distinguish the feature. The reason the menu scrolls is to make the mobile UX better.

I wonder now that we can distinguish a touch device, if we peg the menu to a fixed position on larger screen (no-touch) and allow it to scroll with overflow. Maybe on a really narrow screen we can unfix the position even on a no-touch device. I think it requires a bit of experimentation to get it to a point of acceptability.

bryanbraun’s picture

I'm willing to take a swing at this one and put together a patch based on the Modernizer touch classes. If anyone has other ideas or suggestions, let me know.

bryanbraun’s picture

Status: Active » Needs review
StatusFileSize
new1.57 KB

See the attached patch. This fixes the toolbar to the window and provides overflow scrolling, unless modernizr considers it a touch device,

The fixed-with-overflow-scrolling option is what the Admin module uses for its toolbar, so I'd say it sets a good precedent. I was hoping to get that kind of behavior for all devices, since it seems like a more native experience, but it turns out that many touch devices handle overflow scrolling poorly. Some people have coded up some javascript-y solutions (like Overscroll, Scrollability, or the Gmail option), but I could see things getting complex pretty quickly if we were to include something like that.

Maybe there are ways to use progressive enhancement to offer menu scrolling on the mobile browsers that support it. It would be nice to get ahead of this one since D8 will be used long after all mobile browser support it. Just thinking out loud.

jessebeach’s picture

Great patch bryanbraun. Surgical and effective. I think this addresses the issues Dave Reid brought up in #6.

I made a few changes to the placement of the code changes, but nothing fundamental to the changes to proposed.

I moved this code from the bottom of the file and interleaved it next to similar code.

/**
 * Make vertical toolbar tray scroll with page for touch devices.
 */
.js.touch .toolbar .tray {
  position: absolute;
}
.touch .toolbar .vertical.active,
.touch .toolbar .vertical.active > .lining {
  bottom: auto;
  top: auto;
}

I put up an interdiff from #9, too. Let's see if we can get Dave Reid to weigh in on this solution.

jessebeach’s picture

Status: Needs review » Reviewed & tested by the community

This is a small fix that moves the issue forward. It also will put more eyeballs on the tweak and encourage further feedback.

I predict we'll need to further adjust this behavior especially with the introduction of touch-screen laptops and high-resolution tablets. We can finesse the behavior in further patches.

This patch at least addresses the WTF raised by Dave Reid in #6.

dries’s picture

Status: Reviewed & tested by the community » Fixed

Committed to 8.x. Thanks.

Automatically closed -- issue fixed for 2 weeks with no activity.
