Restrict available choices for select on date and time components

I'm not super enthusiastic about this because it might be confusing to the user. But if this is to go forward, it needs to do a better job.

Consider 12/15/2015 to 1/7/2016
Years: 2015, 2016
Months: 1, 12
Days: 15-31, 1-7

Or 2/15/2016 to 3/1/2016
Years: 2016 -- hide entirely? Default to 2016 and disable?
Months: 2-3
Days 1, 15-29 (leap year, remember?)

It would probably be better to disable unavailable months and days, rather than remove them. FAPI doesn't support this though, so some extra work would be needed.

Hi again! I've made little patch for hours range as I described in duplicate issue.

Time field has great future to set minutes increments like 00, 15, 30, 45. But hour part of time field hasn't ability to set hours interval like from 08 to 15 hours.

Thanks for your attention.

Change priority and status for automated patch testing.

@pcambra -- I am willing to commit a viable patch.

@Nick Denry -- Your patch doesn't deal with 12-hour.

In thinking about these individually, I was in favor of disabling the date choices that aren't within the date range and removing the time options that aren't in the range. But taking these together, that seems inconsistent. Another factor is that 12-hour times have the same problem the +1 months and years have -- the range of selectable choices may not be contiguous. For example 10am-2pm means that 10-12 and 1-2 are allowed.

Accordingly, I now favor removing the illegal choices rather than disabling them. For times, it might be best to remove the am/pm choice when using a start/end time and instead put am/pm in the menu, making it effectively the same as 24 hour, but with different labels. Or not. I think we want to see it in action to see how it looks. I suppose we could start with non-contiguous and if that doesn't seem too strange, just stay with that. Still, it seems like if you want 9-5, it would be nicer to have 9am, 10am, ... 12pm ... 5pm, rather than 1-5 and 9-12. Difficult to know what's best.

This patch takes the work of @pcambra and expand on it:

1. I added validation for the start and end dates. I also validate that if both are specified, that the start can't come after the end. I was surprised that this wasn't done before. Existing webforms will have unvalidated start and end dates, so the existing code to check the values before use will need to stay.
2. I restructured webform_expand_date so that the start and end date are converted to absolute dates and then the day, month, and year is extracted from each of them.
3. I expanded on the code from @pcambra to remove invalid months. When the start month is before the end month, you get a simple list of months (e.g. Feb, Mar, Apr). When not, you get the months in order by the year they would be in, (e.g. Nov, Dec, Jan, Feb). This eliminates gaps in the dates.
4. When months are trimmed, I also check to see if days are trimmed. When the start and end month are the same, you get a simple range of days (e.g. 4, 5, 6). When they are in consecutive months, you get e.g. 28, 29, 30, 1, 2, taking into account the number of days in the start month. A bit tricky.
5. I cleaned up the validate code when submitting date components. No functional change, but there was some ugly code.
6. I removed an out-of-date comment, unrelated to this issue (from the issue of hiding the day/month/year select).

Committed to 7.x-4.x for 4.8.

Patch needs porting to 8.x.

Corresponding patch for time components to follow.

This patch augments the work of @Nick Denry for time fields:

1. Fixes a bug in the above date patch where the error message for a missing portion of a date component generates a PHP warning and doesn't generate the right error message.
2. Adds start and end time validation to time fields.
3. Validates that the start and end times, if set, are valid times.
4. Changed the default for to "Hour:00", rather than "Hour:Minute". In other words, minute "00" is preselected if there isn't a date. I did this because I think on-the-hour times are very common and it saves the user a click and does no harm.
5. Implemented a "reduced range" when the start or end time reduce the range of allowed hours to less than the whole range. For 24 hour, this is simply the hour numbers (e.g. 8, 9, 10). For 12-hour, the am/pm radio is removed and the am/pm is placed in the time (e.g. 10 am, 11 am, 12 pm , 1pm).
6. Allow the end time to be before the start time. This specifies an "over midnight" time range, such as 22, 23, 0, 1, 2.
7. Vastly simplified the rounding of the default or existing value to the minute interval. Previously, this rounded up, which creates problems at noon for 12 hour, and an impossible situation at midnight (since the next day can't be incremented). Instead, I just round down to the nearest interval, which has no rollover problems.
8. Added validation to enforce the start and end times, including the over-midnight range.

I welcome testing of both time and date components -- component definition, submission form interface, and validation.

Committed to 7.x-4.x for 4.8.

Patch to be ported to 8.x

Fixes a regression with 12-hour
- Reduces range when no start and end are specified
- Wrong select values in hour options array (index and hour name aren't properly paired)
- Conversion to 12 hour before converting to ISO, rather than after.

#15 needs porting to D8 as well.

7.x-4.x tests are now all passing again. :)

@DanChadwick Thank you for your work and fast replies.

@Nick Denry -- Your patch doesn't deal with 12-hour.

You're quite right, my bad. According to your comment #7 I've made another patch while trying to deal with 12-hour and non-contiguous hours as you point in your comment.

And didn't know at that moment that you already made another one.

This patch realises hours sets, so user able to choose every hour in range to show in dropdown list. Maybe it's not for production, because admin interface a bit overloaded. Also, this is my second patch at all, so I know a little about validators in Drupal.

But maybe you could find it interesting.

Change status for automated patch testing.

@Nick Denry -- with the advent (moments ago) of #15, the current branch does deal with 12 hour restricted ranges. It works by adding am and pm to the pop-up list and removing the am/pm radio buttons. In this way if you have a range from, say, 10am to 3pm, the hour popup will have 10am, 11am, 12pm, 1pm, 2pm, 3pm.

I made this decision because it makes the range contiguous and avoids a lot of weird menu options. For example, with the "classic" hour menu, the above example would have 1, 2, 3, 10, 11, 12. How is the use to know what hours go with what am/pm choices?

#18 should not be necessary or desirable.

@DanChadwick

with the advent (moments ago) of #15, the current branch does deal with 12 hour restricted ranges

You are superfast maintainer :)

Well, I would be happy for any changes that makes user possible at least to limit range for hours. So, you did the good job anyway.

But another idea in #18 is to store three independent sets (one for 24-hour format and two other for 12-hour format) for allow user to select any hours that should be displayed. As far as I understand #15 doesn't support multiple hour intervals, correct me if it does.

So, I mean that you are able to show some hour intervals like from 8:00 till 12:00 then from 14:00 till 18:00 in dropdown list (include solution for a.m./p.m). The usecase of this would be useful if some organisation has a break in visiting hours or you could wait for delivery, for example at some hours.

In user-side solution for a.m./p.m. I just show or hide options in dropdown select for a.m. hours or p.m. hours depens on what radio is checked. I guess this is not really good idea, but it's also possible to show 'a.m.' or 'p.m' suffix in dropdown and remove radios.

In summarizing all above I have just one question: should we care about "breaks in visiting hours" and so on or just set time range to avoid interface overloading and keep component simple?

Add some screenshots to provide additional info for #22.

Forgot 24 hours dropdown with time-break.

@Nick Denry -- As the guardians of Webform, we look to balance the power of webform with complexity and ease of use. I don't think discontinuous time blocks are a compelling enough use cause to justify the complexity. We added validation and as a side benefit, limit the options in the menu.

That's not to say that you can't do what you want. You can implement a custom module which installs its own theme function with hook_registry_alter (or in a theme function), or by using hook_webform_client_form_alter to install your own process function for dates. If you think your use case is of general use, you can make this a custom module.

@DanChadwick

Ok I see. Thank you. I'll watch if usecase "breaks in visiting hours" will get feature requests fom different sources (own supported sites and webform issue tracker after this issue will be port to production). Then I can think about own custom module. At moment "hours range" is completely satisfying for my own needs.

Now I want to test time component with #15. Should I apply #10 and #11 before?

Yes, all three patches need to be applied in order. Or simply download the latest -dev from d.o, which will already have these patches in it (I think -- you can check the build time).

@DanChadwick
Offtopic.

I'm sorry, what is "d.o" ?

(I think -- you can check the build time).

I guess I do.

d.o = drupal.org.

Here's the dev branch page. You can see the build time and version:
https://www.drupal.org/node/1589878

@DanChadwick

Thanks.

So, I have some test results for time component.

1. Title for the "End time" field set as '#title' => t('End date'), I guess this is the typeerror.

2. For 24-hour format if "Start time" is empty, but "End time" value is set we still have range from 0 to 23 instead of from 0 to "End time".

3. For 24-hour format if we leave "End time" field blank we have 0 value at the end of hour select dropdown

@see webform_start_time_end_time_24_blank_2474455_30.png
@see webform_start_time_end_time_unexpected_zero_value_2474455_30.png

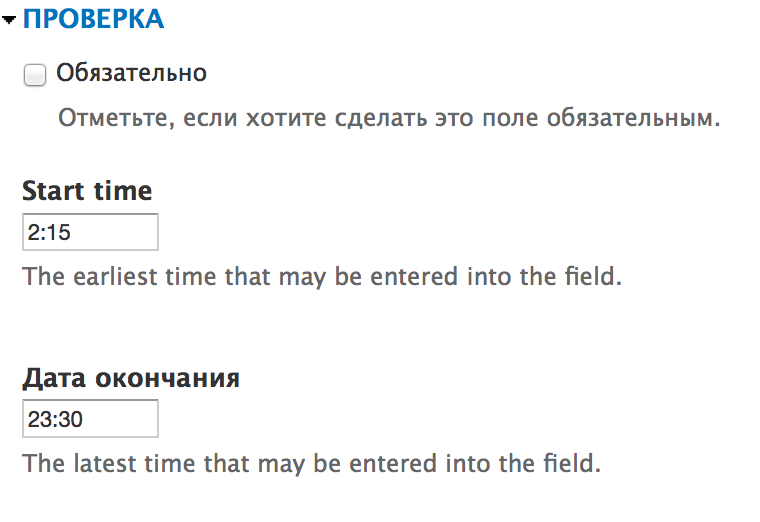

4. We could use 24-hour format of "Start time" and "End time" with minutes like 2:15 and 16:45. But minutes values doesn't affect any real changes for minuts display nor limit, I guess we need some help information under fields input.

@see webform_start_time_end_time_minutes_values_2474455_30.png

5. For 12-hour format if we leave "Start time" field blank, but "End time" is set displaying range is 1-12.
If "Start time" is set, but "End time" is not - displaying range is OK, from "Start time" to 12.

6. For 12-hour format if "Start time" is blank or both start and end time fields are blank we have radios to switch a.m./p.m. but not suffix in dropdown list. I guess this is by design, but it's a bit confusing.

7. I didn't found any trouble with form submission values for both time formats.

Re #30: Thank you very much @Nick Denry.

1. Fixed the "End time" typo.

2, 3, 5. Fixed a problem with specifying the end hour and a different problem with defaulting the end hour (when the start hour is specified).

4. It's up to the webform author to tell the submitter what times are valid.

6. This is intentional. If you use time validation, you get spell-out am/pm hours. If not, you get the "classic" interface.

7. Phew!

Committed to 7.x-4.x

Patch needs port to 8.x.

@DanChadwick Not at all. We all want webform to be bugfree.

I've test time component again, can confrirm all described in #30 issues fixed.
Now I'll test date component.

@Nick Denry -- yes, please do test the date component. I think the moral of the time component is to avoid commits made at 22:57.

Well, now I have some test result for the date component.

1. Test with dates set from 05 Feb 2015 to 20 May 2015.
Months are displayed correctly - Feb, Mar, Apr, May. - OK

2. Test with earlier date than start date - form validation raises error - OK.

3. Test with later date than end date - form validation raises error - OK.

4. Popup calendar range is OK.

5. Test with dates set from 05 Feb 2015 to 20 May 2016.
Popup calendar range is OK.

6. Test with earlier start date 12 Jan 2015 - form validation raises error - OK.
Test with 12 Jan 2016 - in range, form sent correctly - OK.

7. Test with later date 27 May 2016 - form validation raises error - OK.
Test with 27 May 2015 - in range, form sent correctly - OK.

8. Do the same tests with unset start and end dates - no unexpected behaviour found. OK

9. Default value for the date component could be set out of range, for example 27 May 2015, when end date is 20 May 2015. - a bit unexpected.

10. Trying to set "start date" later than the "end date" - get error "The End date must be on or after the Start date." - OK.

Well, thats it. Maybe this is not a complete test but I have no idea what I could test else.

Btw, how could I change order in user-side date component for month and day fields? When expecdet format is dd.mm.YYYY instead of mm.dd.YYYY? Well I could swap month and day fileds with CSS and [submission:date:custom:?] token on form send, but is this ok?

I think the moral of the time component is to avoid commits made at 22:57.

Yep! The code quality depends on how is your mind clear/ready :) But we are not always have the choise.

Re #35:

9. Default value for the date component could be set out of range, for example 27 May 2015, when end date is 20 May 2015. - a bit unexpected.

Intentional. The default value can't be validated at form time because it could be a relative date or a token.

how could I change order in user-side date component for month and date fields?

This is done by core by using the short date format and extracting the order of the components. Just set your short order to something that has then fields in the order you want

EDIT: And thanks again for the testing.

Committed and pushed to 8.x-4.x. Thanks.

Applied #9, #10, #14, and #31 together.
