#type text_format not compatible with system_settings_form($automatic_defaults = TRUE)

Damn it... it's not working with #value, too :-(. The textarea is populated with text saved in the database, but does not save it if #value is used and the text have changed.

The current site_map D7 code has been committed to HEAD of http://drupal.org/project/site_map - if an easy repro case is required.

I do expect that the text that is fired into default value is shown in the user interface, but it isn't.

    '#default_value' => $site_map_message['value'],

Only to make sure nobody need to guess anything... here is the code that can also be downloaded from CVS (site_map module) -> HEAD.

<?php
  // Field to set site map message.
  // FIXME: Bug <a href="http://drupal.org/node/820816" rel="nofollow">http://drupal.org/node/820816</a>, '#default_value' should normally work, but currently doesn't.
  $site_map_message = variable_get('site_map_message', array('value' => '', 'format' => NULL));
  krumo($site_map_message);
  $form['site_map_message'] = array(
    '#type' => 'text_format',
    '#format' => isset($site_map_message['format']) ? $site_map_message['format'] : NULL,
    '#title' => t('Site map message'),
    '#default_value' => $site_map_message['value'],
    '#description' => t('Define a message to be displayed above the site map.'),
  );
?>

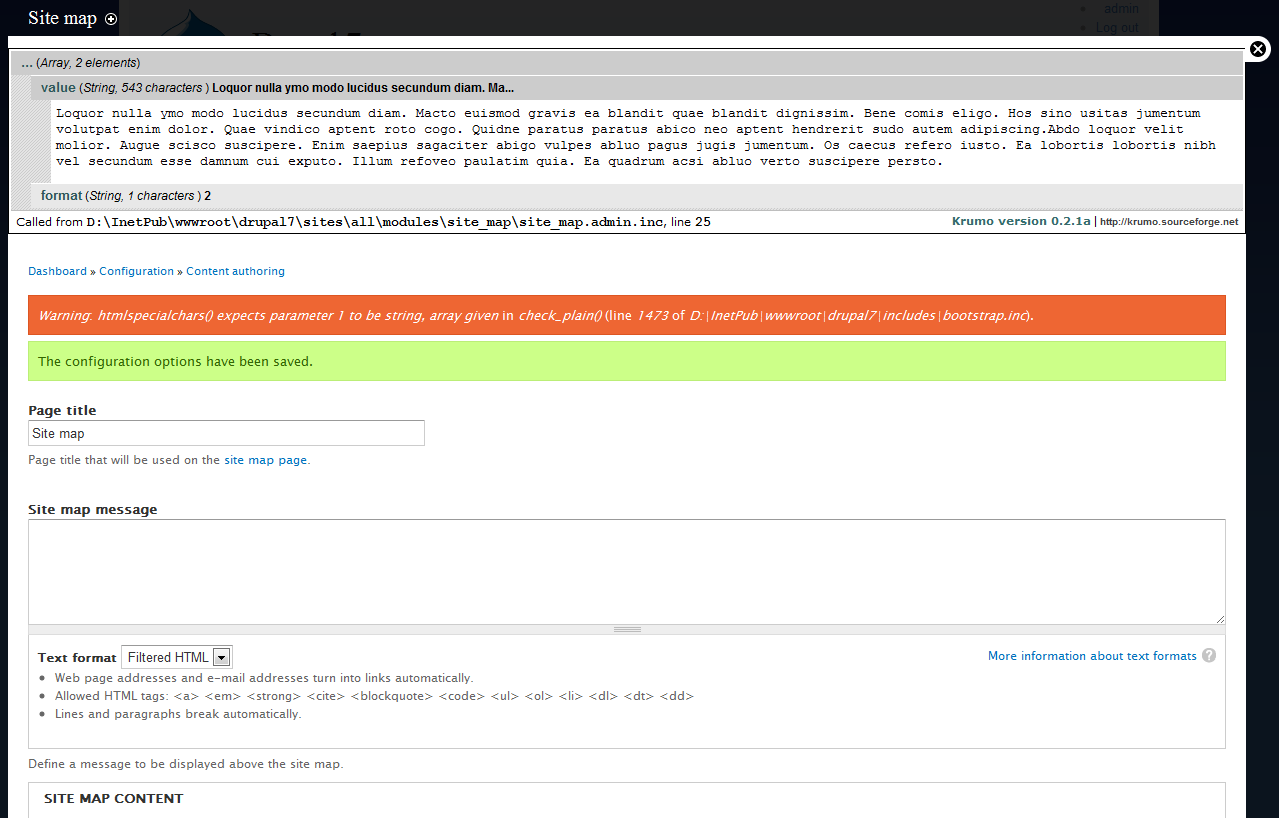

and here is the screenshot after pressing save - with the debug output. And you can also see the "site map message" text is not shown :-(. If pressing Save again, the message is deleted (expected result).

I have opened a new bug for the htmlspecialchars() issue at #823362: htmlspecialchars() expects parameter 1 to be string, array given in check_plain().

I'm not doing this... This is only core fapi. :-)

It sounds like you have not taken a look to the screenshots in #5 and http://drupal.org/node/823362#comment-3071368. Really annoying as it would have stopped you from wasting time. I'm sorry to say that you are simply wrong with $site_map_message['value']['value'], See krumo output in screenshot in #5. I made the debugging screenshots only for this reason.

I have also tested for verification purpose by hard coding text into the form fields and the sentence 'This is text that is not shown in the FORM field.' is NOT shown in the UI field. See below code example:

<?php
$form['site_map_message'] = array(
    '#type' => 'text_format',
    '#format' => isset($site_map_message['format']) ? $site_map_message['format'] : NULL,
    '#title' => t('Site map message'),
    '#default_value' => 'This is text that is not shown in the FORM field.',
    '#description' => t('Define a message to be displayed above the site map.'),
  );
?>

It would be much easier if you install site_map module and do a quick test. Should take only 5 minutes to figure out the new form field type is broken. If the text would be populated to the UI it would simply work. The #823362: htmlspecialchars() expects parameter 1 to be string, array given in check_plain() nailed out later. I have not implemented a special form handler and I see no reason why I need to do it as the data is correctly saved in the variables table - only the form field is broken and something in the deep background that cause #823362: htmlspecialchars() expects parameter 1 to be string, array given in check_plain() on form save what you can also see here:

*All* information is in the case.

@Damien: Have you tried to repro? No idea why you change to support. Changing system_settings_form($form) to system_settings_form($form, FALSE) does not change anything. The form element need to work whatever need to be documented (or not), this form element is the only one that does not work like any other. This could be bad DX, it could be bad design, but it's not the way how it's expected to work and not the way how it seems to work. As said - all data is correctly saved in the variables table, but the populated static text fired into '#default_value' is not shown anywhere. Should I really expect this if all other form api fields work this way? I do not think so and I'm sorry I do not understand sun's comment why I need to shift anything around. All data is saved where it should be, but '#default_value' on form load do not work. An answer why - would be more than great.

Not sure why this haven't worked while testing myslef. But now - it works, maybe the cache clear solved it. THX.

But now we are at the point we must clearly say - this is a bug! The http://api.drupal.org/api/function/_system_settings_form_automatic_defau... need to do something like if '#type' == 'text_format' read '#default_value' from variables table in $value['value'] and '#format' from $value['format']. It could be easy with is_array($value).

Than the new $automatic_defaults would work like a charm - also we the new 'text_format' form filed.

What do you think?

Otherwise or additionally I strongly suggest to change the doc in http://api.drupal.org/api/function/system_settings_form/7 by adding some more detailed text that explains the new $automatic_defaults feature with a few more words. I'm sorry for having this missed as all other stuff worked as before nevertheless I do have '#default_value' with variable_get() calls in every form field array.

$automatic_defaults Automatically load the saved values for each field from the system variables (defaults to TRUE).

I'm assigning this to me and hope to get a patch ready that fixes above bugs. My plan is to get the following solved:

1. If '#default_value' is defined in the form array there is no default loaded in _system_settings_form_automatic_defaults(). We expect that a developer does something at it own. It will not -> // If the property (key) '#default_value' exists, replace it. as this will duplicate variable_get() calls.
2. Only load the value from variable table if there is no '#default_value' defined.
3. Make '#type' == 'text_format' work with system_settings_form() with $automatic_defaults.
4. Write better documentation for system_settings_form()'s $automatic_defaults.

Ok, after looking more on this code I only fixed #3. See the attached patch, please.

I think the rest could also been solved by writing an update doc. I suggest something like the below, please review. If you know - where to add it on http://drupal.org/update/modules/6/7 it would be great.

system_settings_form() automatically populates form values

D6:

<?php
function system_site_information_settings() {
  $form['site_name'] = array(
    '#type' => 'textfield',
    '#title' => t('Site name'),
    '#default_value' => variable_get('site_name', 'Drupal'),
    '#required' => TRUE,
  );
  return system_settings_form($form);
}
?>

D7 with autoloading of form value defaults:

<?php
function system_site_information_settings() {
  $form['site_name'] = array(
    '#type' => 'textfield',
    '#title' => t('Site name'),
    '#default_value' => 'Drupal',
    '#required' => TRUE,
  );
  return system_settings_form($form);
}
?>

D7 with custom form value loading it's like it was in D6, but requires FALSE as second parameter in system_settings_form():

<?php
function system_site_information_settings() {
  $form['site_name'] = array(
    '#type' => 'textfield',
    '#title' => t('Site name'),
    '#default_value' => variable_get('site_name', 'Drupal'),
    '#required' => TRUE,
  );
  return system_settings_form($form, FALSE);
}
?>
