Divide by zero error in theme_image_style_preview [#1981086]

When I go to `admin/config/media/image-styles/edit/medium`, I get this error:

    Warning: Division by zero in theme_image_style_preview() (line 786 of /home/naught101/Documents/enviro/hcec/ElectionScoreCard/website/modules/image/image.admin.inc).
    Warning: array_intersect_key(): Argument #1 is not an array in theme_image_style_preview() (line 788 of /home/naught101/Documents/enviro/hcec/ElectionScoreCard/website/modules/image/image.admin.inc).

This happens for all the default styles.

I'm running drupal 7.x-1.x (git, up to date as of a few minutes ago) with no image related modules (modules available installed are `admin_menu, ctools, devel, entity, fivestar, geophp, markup, openlayers_field, proj4js, relation, token, views_hacks, coder, date, efq_views, field_collection, geofield, libraries, openlayers, pathauto, rate, relation_add, views, votingapi`). Drupal is running on kubuntu raring. Relevant parts of status report:

Drupal                                    7.23-dev
Install profile                           Minimal (minimal-7.23-dev)
CTools CSS Cache                          Exists
Database system                           MySQL, MariaDB, or equivalent
Database system version                   5.5.31-0ubuntu0.13.04.1
GD library rotate and desaturate effects  2.0
PHP                                       5.4.9-4ubuntu2 (more information)
PHP extensions                            Enabled
PHP memory limit                          256M
Web server                                Apache/2.2.22 (Ubuntu)

Comment	File	Size	Author

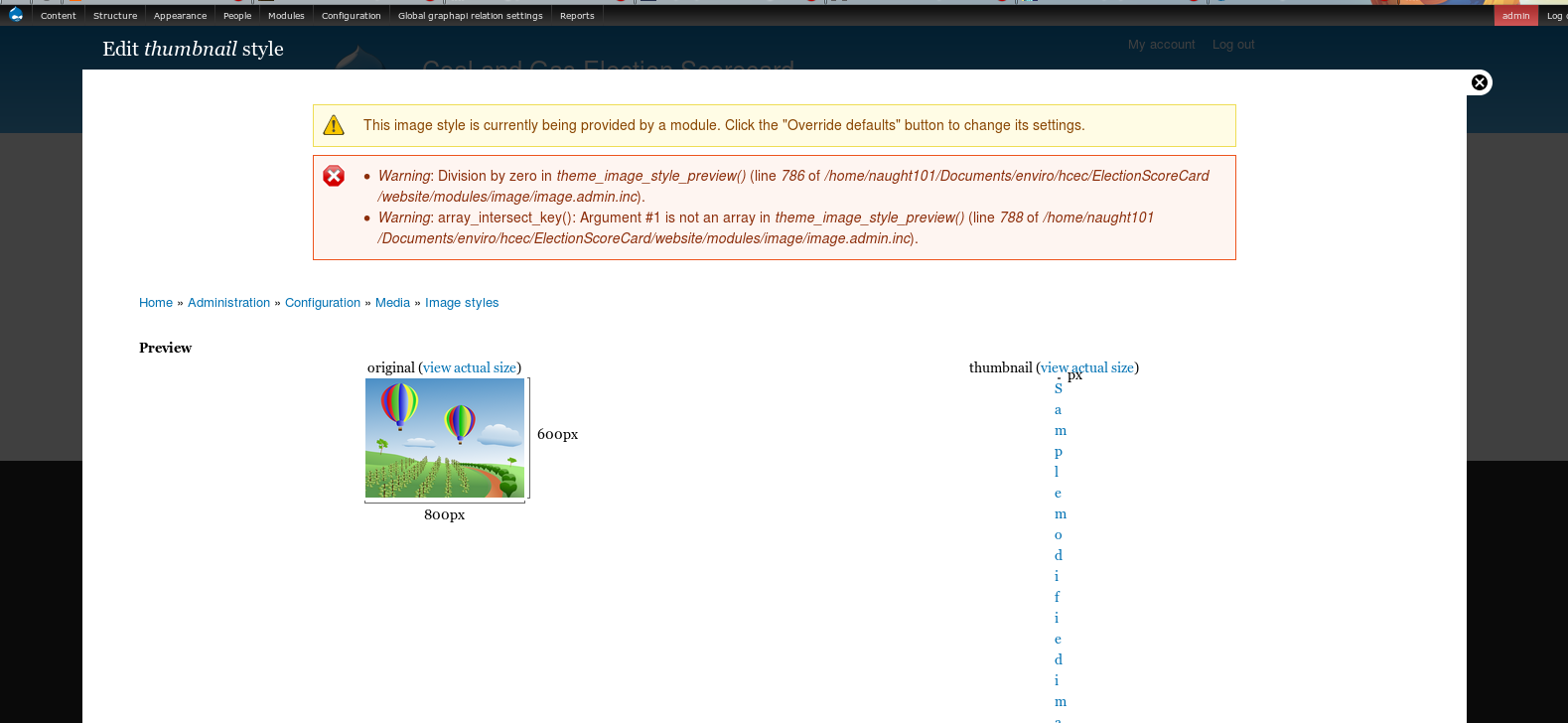

#3	broken_image_filter_divide_by_zero.png	97.59 KB	naught101

Comments

Comment #1

donutdan4114 commented 11 May 2013 at 00:04

Do you have a sample.png file in your image module folder? If that file is not there, or has non-read permissions, the division by zero error will occur.

Comment #2

donutdan4114 commented 11 May 2013 at 03:39

Status:

Active

» Fixed

I'm going to mark that as fixed unless you can reproduce this with the sample.png file existing.

Comment #3

naught101 commented 12 May 2013 at 01:07

Status:

Fixed

» Active

Status	File	Size
new	broken_image_filter_divide_by_zero.png	97.59 KB

The image is there:

$ ls modules/image/sample.png -lah
-rw-rw-r-- 1 naught101 naught101 165K Nov 11 09:26 modules/image/sample.png

It even shows on the page:

I have even tried chmod a+rwx modules/image/sample.png, and that doesn't work either. Permissions are clearly not the problem. Also, the image reads fine (in the browser and in gwenview), so it's not broken. git status shows no changes except added modules in sites/all/modules.

I understand that this is probably a set-up problem, and I'm thinking that it's because I moved to raring, but I don't really know where to start looking for the root cause.

Comment #4

johncs commented 18 May 2013 at 02:31

I have this same problem in 7.22
Here is my research:
I added some debugging code to drupal/modules/image/image.admin.inc

774   // Set up preview file information.
775   ob_start();
776   $preview_file = image_style_path($style['name'], $original_path);
777   print "<br> File: " .  $preview_file;
778   if (!file_exists($preview_file)) {
779     image_style_create_derivative($style, $original_path, $preview_file);
780     print "<br> now: " .  $preview_file;
781   }
782   if (!file_exists($preview_file)) {
783     print "<br> " . $preview_file . " still doesn't exist";
784   }
785   $preview_image = image_get_info($preview_file);
786
787   print "<br> preview_image: ";
788   var_dump($preview_image);
789   print "<br> width: " .  $preview_image['width'];
790   drupal_set_message(ob_get_clean());

I discovered the file does not exist, and line 783 is executed.

I used strace on Apache:
[code]
strace -f -e trace=file -o /tmp/trace-httpd $(ps xa | awk '/httpd/ {print "-p " $1}')

I grepped the trace and located sample.png

09:59 [root@WebServer ~]# grep sample  /tmp/trace-httpd
5712  stat("modules/image/sample.png", {st_mode=S_IFREG|0644, st_size=168110, ...}) = 0
5712  lstat("/var/www/sites/chesswa/drupal/modules/image/sample.png", {st_mode=S_IFREG|0644, st_size=168110, ...}) = 0
5712  open("/var/www/sites/chesswa/drupal/modules/image/sample.png", O_RDONLY) = 15
5712  stat("modules/image/sample.png", {st_mode=S_IFREG|0644, st_size=168110, ...}) = 0
5712  lstat("/var/www/sites/chesswa/drupal/sites/default/files/styles/thumbnail/public/modules/image/sample.png", 0x7fffc26d5690) = -1 ENOENT (No such file or directory)
5712  open("/var/www/sites/chesswa/drupal/modules/image/sample.png", O_RDONLY) = 15
5712  open("/var/www/sites/chesswa/drupal/modules/image/sample.png", O_RDONLY) = 15
5712  lstat("/var/www/sites/chesswa/drupal/sites/default/files/styles/thumbnail/public/modules/image/sample.png", 0x7fffc26d5690) = -1 ENOENT (No such file or directory)
5712  lstat("/var/www/sites/chesswa/drupal/sites/default/files/styles/thumbnail/public/modules/image/sample.png", 0x7fffc26d5660) = -1 ENOENT (No such file or directory)
5655  stat("/var/www/sites/chesswa/drupal/sites/default/files/styles/thumbnail/public/modules/image/sample.png", 0x7fffc26dc8e0) = -1 ENOENT (No such file or directory)
5653  stat("/var/www/sites/chesswa/drupal/sites/default/files/styles/thumbnail/public/modules/image/sample.png", 0x7fffc26dc8e0) = -1 ENOENT (No such file or directory)
10:00 [root@WebServer ~]# locate sample.png
/var/www/sites/chesswa/drupal/modules/image/sample.png

Comment #5

donutdan4114 commented 10 June 2013 at 12:56

What are your permissions for the default/files directory?
For the image style to be created, Apache needs to be able to create directories and save images in there.

Comment #6

naught101 commented 11 June 2013 at 14:20

Yep, that was the problem in my case, thanks donutdan4114. Not sure whether this should be closed, because it's my fault that the permissions were screwed, or left open because the error message isn't very intuitive...

Comment #7

donutdan4114 commented 11 June 2013 at 19:41

I agree, the error message isn't clear.

However, to have a specific error message for every type of thing, like missing image, bad folder permission, bad file permission, etc... I think all places on the site assume folder/file permissions are set properly.

In fact, if you had checked /admin/config/media/file-system, it probably would have shown an error relating to your public folder permissions. Not sure.
