This is a sub-issue of #1910624: [META] Introduce and complete configuration schemas in all of core.

Problem/motivation

#1866610: Introduce Kwalify-inspired schema format for configuration introduced the idea of config schema. The changelog leads to (hopefully extensive) documentation on the format at http://drupal.org/node/1905070. While there are little cleanups planned for the format overall, the current format is a result of months of back and forths, so it should be perfectly fine to apply it more widely to core.

Proposed solution

Create a configuration schema for language module.

Schema in place

Schema not yet in place
language.detection.yml
language.mappings.yml
language.negotiation.yml

Support from Acquia helps fund testing for Drupal Acquia logo

Comments

vijaycs85’s picture

Status: Active » Needs review
FileSize
0 bytes

Adding schema file...

vijaycs85’s picture

Updating patch with label and code style changes.

Status: Needs review » Needs work
Issue tags: -Configuration system, -D8MI, -language-config

The last submitted patch, 1919178-language-schema-2.patch, failed testing.

vijaycs85’s picture

Status: Needs work » Needs review
FileSize
20.53 KB

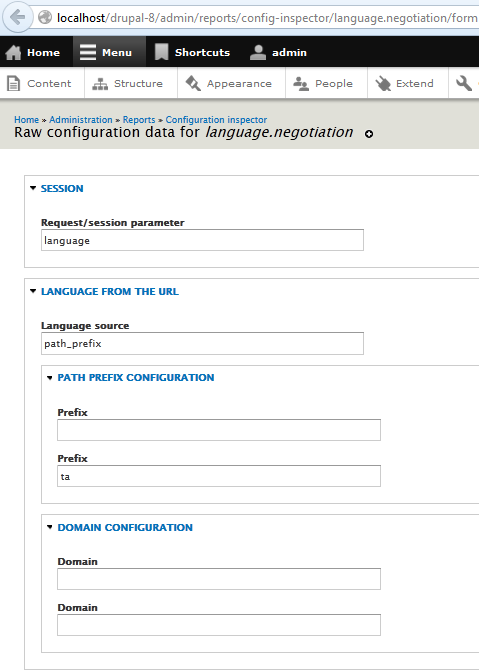

Adding config inspector for review...

YesCT’s picture

the tests part of #2 might have been included by accident. or included in another patch recently.
it's already in a fresh git pull --rebase

schema for langcodes

there are three files in the sites/modules/language/config

1. Do the mappings there (for chinese langcodes) need to be in the schema?

There is a ui for them now:
because of #365615: Language detection not working correctly for most Chinese readers (and add a user interface for all browser language mappings)

indent level

orig settings:

session:
    parameter: language
url:
    source: path_prefix
    prefixes:
      en: ''
    domains:
      en: ''

on save, in the config hash in the sites default files dir, the indent is different:

session:
  parameter: language
url:
  source: path_prefix
  prefixes:
    en: ''
  domains:
    en: ''

in the schema, the indent implies it might be further...
2. should we worry about that?

bit more match to ui labels

looking at the detection ui, I think some of the labels can be changed to match that.


3. I dont see schema for the other settings besides url and session though. Do we need those too?

I changed the detection to check more, but I did not see any difference in the saved config in the sites default config hash language file.


the session parameter label matches the schema
as does the detection label for session... but for url, it was (part of) the description. I made it include the rest of the description.
4. but probably they should both be the descriptions, or both just be the method name, right?


(patch attached just tries to get the labels matching better. the one from 2 did not apply with the tests stuff, so the interdiff doesn't show that deleted.. cause it's really still there already)

vijaycs85’s picture

Thanks for the review @YesCT.
#5.1 - If we need to map them, then we can have something like(not tested):

language.mappings.*:
  type: mapping
  label: 'Language mapping'
  mapping:
    type: string
    label: 'Language'

#5.2 - guess spacing is important in yml. Created #1934428: Remove spacing issue in language.negotiation.yml to fix this problem.
#5.3 - we add schema only for config in yml file of the module(meaning, may not cover the stuff that's getting added dynamically in active dir).

patch in #5 looks great, except ending line (also update language in comment to Language, if line ending update needed.)

sandipmkhairnar’s picture

Thanks @vijaycs85 updated patch as per comment.

Languge config

Languge config

Languge config

vijaycs85’s picture

Thanks for the patch @sandipmkhairnar. Lets wait for YesCT/@gobar to review. I'm not very sure, we want to have this in Schema as we got nothing to translate.

tstoeckler’s picture

Re #8: We need schemas for all config, regardless of whether it is translatable or not.

vijaycs85’s picture

Thanks the clarification @tstoeckler. Patch in #7 is ready for review now...

YesCT’s picture

Status: Needs review » Reviewed & tested by the community

the interdiff is the same as the patch. :)

I didn't retest this manually with the config inspector. it looks like that was done already.

The code looks good schema standards-wise.
And I compared it to the config files and it looks like it matches.

webchick’s picture

Status: Reviewed & tested by the community » Fixed
Issue tags: +D8MI

Committed and pushed to 8.x. Thanks!

Automatically closed -- issue fixed for 2 weeks with no activity.
